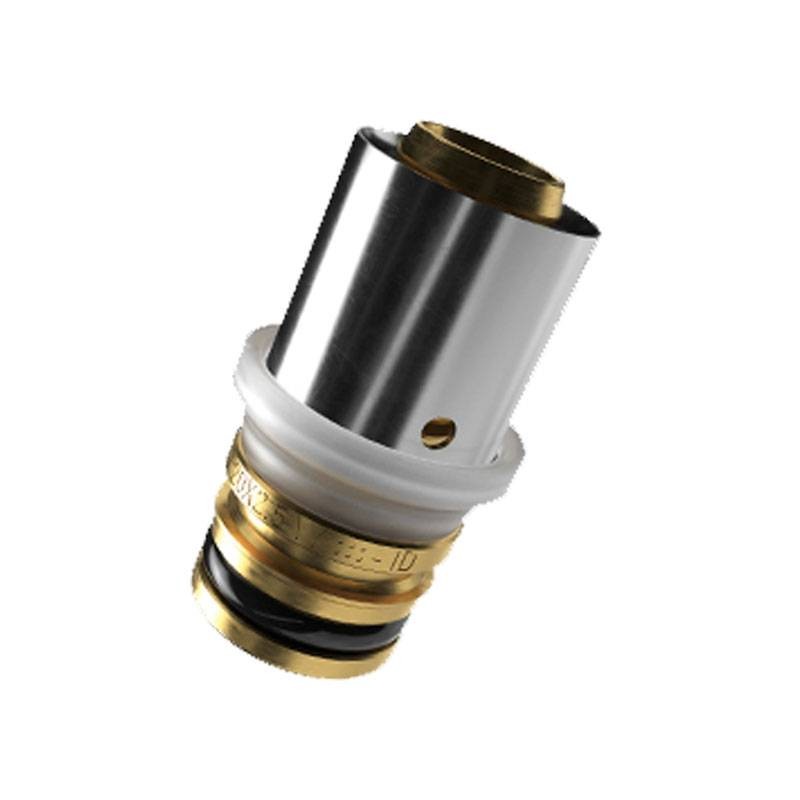

Teco Fitting for multilayer pipes F13 M 16X2.0 RF13M16101VA
1TC RF13M16101VA
8050880181131
Fitting for multilayer pipes Teco F13 M 16x2.0 Quick, secure, and certified connection for water and heating systems.
-
Model: Teco F13 M
-

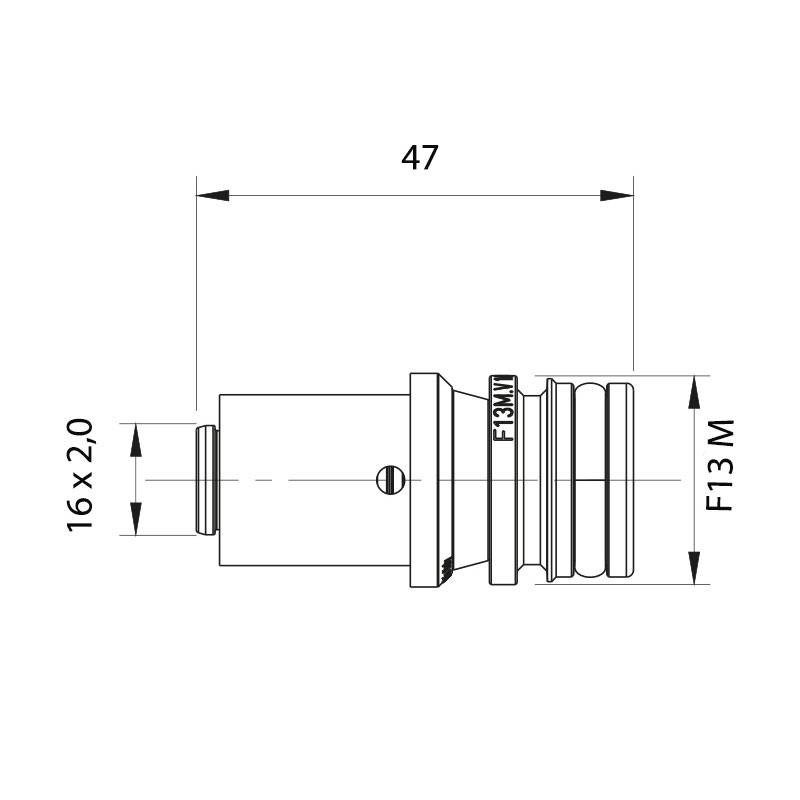

Pipe diameter: 16 x 2.0 mm
-
Material: Brass PEXAL BRASS
-
Connection: Male F13 Quick connection
-
Operating temperature: from 30°C to +95°C
-
Max operating pressure: 16 bar
-
Seal: via controlled compression O-Ring
-
Certifications: DIN DVGW EN 13828 - KTW-BWGL (materials for drinking water).
€4.55
Items Available: 755
: 38
Fitting Teco F13 M 16x2.0: fast installation and safety in confined spaces
The male fitting Teco F13 M 16x2.0 is designed to offer quick, secure, and durable connections in modern water and heating systems. Thanks to the quick connection, installation is tool-free, making it perfect even in environments with limited accessibility or very tight spaces.
The hydraulic seal is ensured by an O-Ring with predefined static compression, a proven technology that guarantees reliability and durability over time, both in external and concealed installations.
Versatile uses for every type of system
This fitting is suitable for:
-
Plumbing systems Cold and hot drinking water
-
Heating and cooling even with antifreeze liquids
-
Civil and industrial constructions
-
Internal and external systems, even concealed
Thanks to its high mechanical resistance and European certifications, the Teco F13 fitting guarantees maximum operational safety even in extreme temperature and pressure conditions.
There are no reviews
Data sheet
- Diameter: 16mm
- Type: Fittings
- Connection: M
- Model: Straight
- Material: Brass
Threaded
