Ziggiotto 1 1/2 x 1/2 slotted quick connect bracket fitting B003L048021

Ziggiotto
Ziggiotto
914 B003L048021

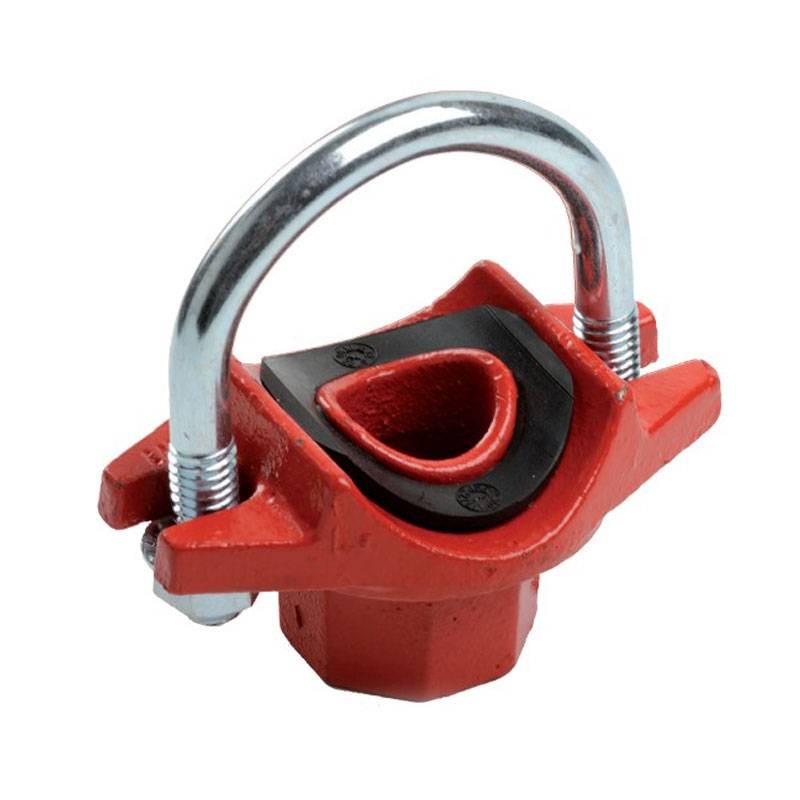

Ziggiotto grooved quick-connect bracket fitting designed for plumbing and firefighting systems. Resistant EPDM gasket, for water and glycol systems, with the following characteristics:

  • Threaded branch: 1/2 inch

  • Main pipe: 1 1/2 inch

  • Branch hole: 30/32 mm

  • Pressure rating: PN 300 (300 PSI)

  • Compatible with tubing: 48.3 x 21.3 mm diameter

  • Grooved system: Quick, safe and versatile

  • Certified: UL/FM, not suitable for potable water

  • Bolts: M10x28.5 included

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ziggiotto 1 1/2 x 1/2 slotted quick connect bracket fitting B003L048021
€4.12
€4.12

€4.12
Tax included
Calculate shipping cost
Items Available: 10
Further availability of the manufacturer
€4.12

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Quick-connect bracket fitting for quick and safe installations

The UL/FM grooved quick-connect bracket fitting is the ideal solution for making reliable shunts on piping in plumbing and fire protection systems. The grooved connection system simplifies installation by reducing installation time and equipment requirements, eliminating the need for welding, flanging or threading.

Maximum sealing and thermal resistance

Equipped with an EPDM gasket, the socket provides excellent sealing even under extreme temperature conditions. Thermal resistance from -34 to +110 degrees makes it ideal for air conditioning, heating, cooling or firefighting systems, with the possibility of using water/glycol mixtures up to 15 percent.

Practical six-step installation

Installation involves preparing the pipe, removing burrs, inserting the gasket with associated alignment of the outlet body, bolting and checking tightness. All with a quick assembly that maintains spaces between the upper and lower parts for proper positioning.

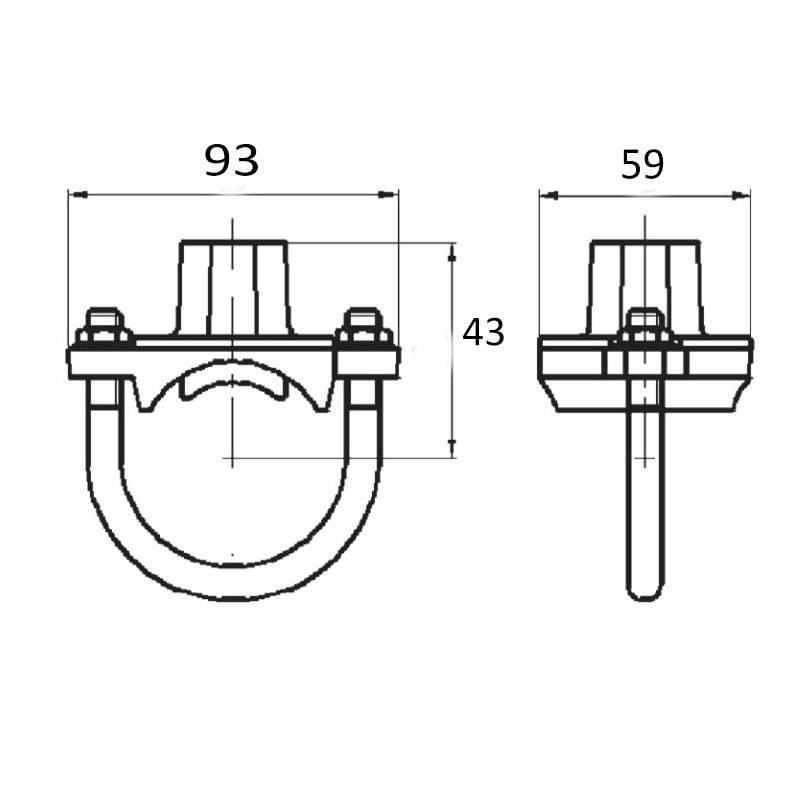

Technical Specifications Fitting Bracket quick fit

Type Quick-connect bracket fitting
Branch connection 1/2 inch
Main piping 1 1/2 inch - Diameter 48.3 mm x 21.3 mm
Branch hole 30/32 mm
Pressure rating (PN) 300 PSI
Hardware included M10x28.5
Certifications UL, FM
System Slotted - no welding or threading
Compatible applications Plumbing, HVAC, fire protection, water-glycol systems
Warnings Not suitable for potable water

There are no reviews

Data sheet

Type:
Fittings
Connection:
F
Model:
Threaded
Connections:
1-1/2 inches
1/2 inches
