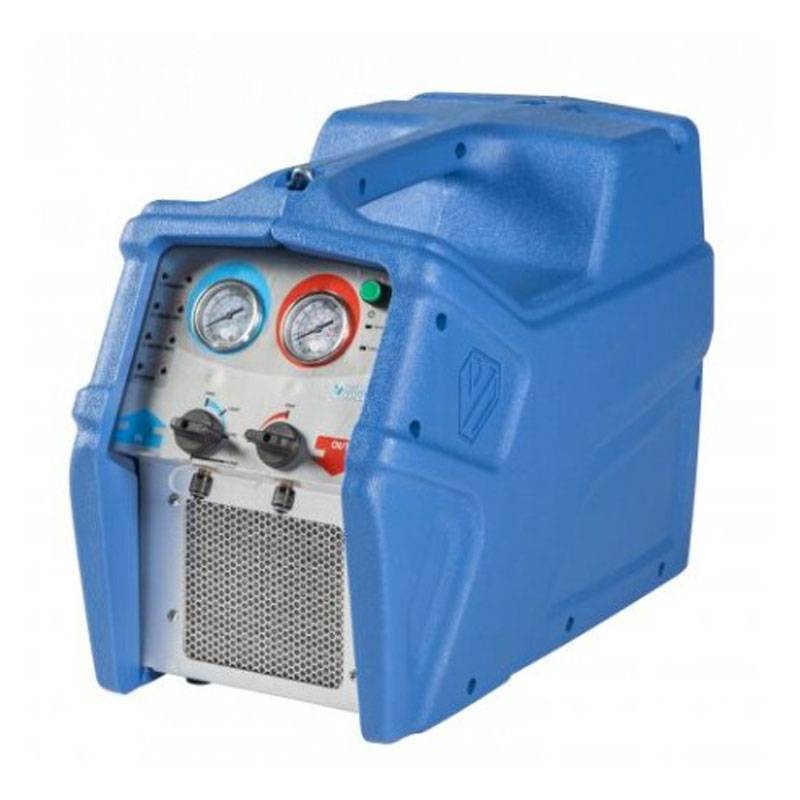

Wigam EASYREC-1R refrigerant recovery and recycling machine 13001020
WIG 13001020
Wigam EASYREC-1R refrigerant recovery and recycling machine with distiller, dry compressor, built-in distiller, automatic flow control, with the following features:
-
CFC, HCFC, HFC and HFO compatible (also R32 and R1234ze)
-
550 W dry piston compressor
-
Distillation system with automatic flow control
-
PURGE function for quick refrigerant changeover
-
Automatic shutdown when recovery is complete
-
Green/red LED signaling and pulse-free pressure gauges
€1,309.92
Items Available: 4
: 1
Frequently bought together
Refrigerant recovery and recycling machine with integrated distillation Wigam
Professional recovery and recycling in a single solution
Compact, high-performance unit designed for recovery and recycling of major refrigerants CFCs, HCFCs, HFCs, and HFOs, including new generation refrigerants such as R32 and R1234ze. It is ideal for refrigeration technicians and HVAC operators who need a reliable and complete system under all operating conditions.
Integrated high-efficiency distiller

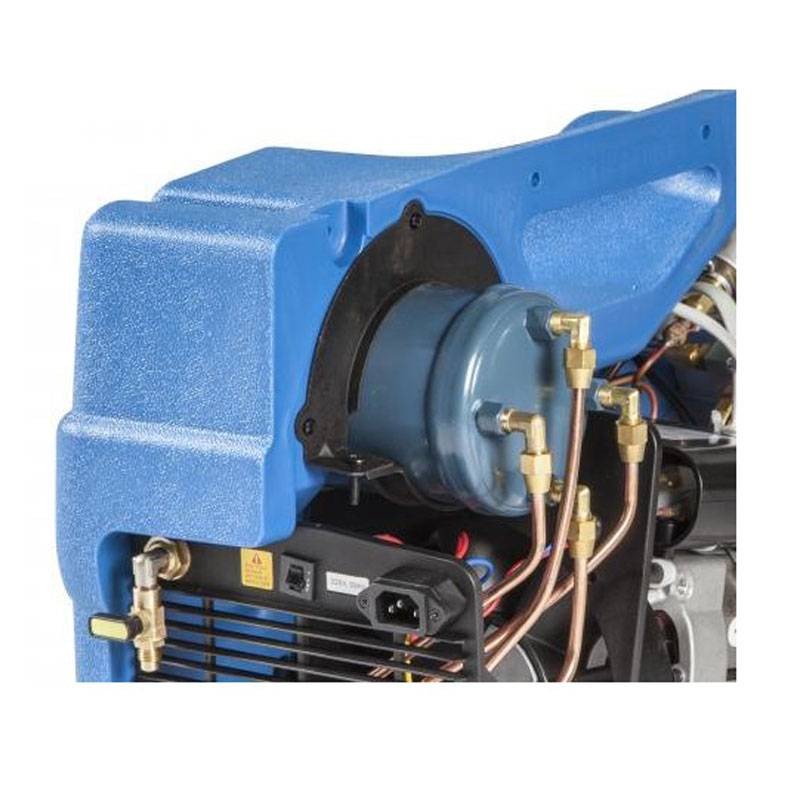

The heart of the system is the integrated distiller with automatic flow control. This device effectively separates oil, impurities and additives from the refrigerant, ensuring safe and clean recycling. The high internal heat exchange enables a fast and highly efficient process.
Intelligent functions and total safety
Equipped with an automatic PURGE function to empty the circuit before refrigerant change, and an automatic shut-off device that stops recovery at the end of the charge. The system also includes shutoff valves to prevent gas leakage, a 38.5-bar safety lockout, and pulse-free pressure gauges with fine adjustment.
Compact, rugged and ready to use
With its compact, transportable design, intuitive graphic panel, and visual indicator and filter, the unit is easy to use even in complex operating environments. Ergonomics are complemented by LED indicators (green for completed cycle, red for alarm) and a quiet and efficient dry compressor.
Technical Specifications Wigam Refrigerant Recovery and Recycling Machine
Technical Data
| Feature | Value |
|---|---|
| Type | Refrigerant recovery and recycling machine |
| Refrigerant Compatibility | CFC, HCFC, HFC, HFO (R32, R1234ze) |
| Compressor | Dry piston |
| Motor power | 550 W |
| Power supply | 220-240V AC - 50/60 Hz |
| Max. current consumption | 4 A |
| Safety lockout | 38.5 bar (3850 kPa / 558 psi) |
| Operating temperature | 0 - 40°C |
| Distillation system | Oil/impurity/additive separation |
| PURGE function | Included (self evacuation) |
| Pressure gauges | Pulse-free, with adjustment screw |
| Signals | LED green (ok) - red (alarm) |
| Connections | 1/4" SAE |
Recovery Performance
| Coolant | Steam | Liquid (recovery) | Liquid (recycling) / Push-pull |
|---|---|---|---|
| R12 - R134a | 14 kg/h | 96 kg/h | 16 kg/h / 276 kg/h |
| R22 - R407C | 15 kg/h | 108 kg/h | 17 kg/h / 336 kg/h |
| R404A - R410A - R507 - R32 | 16 kg/h | 132 kg/h | 18 kg/h / 378 kg/h |
There are no reviews
Data sheet
- Type: Refrigerant recovery machines
