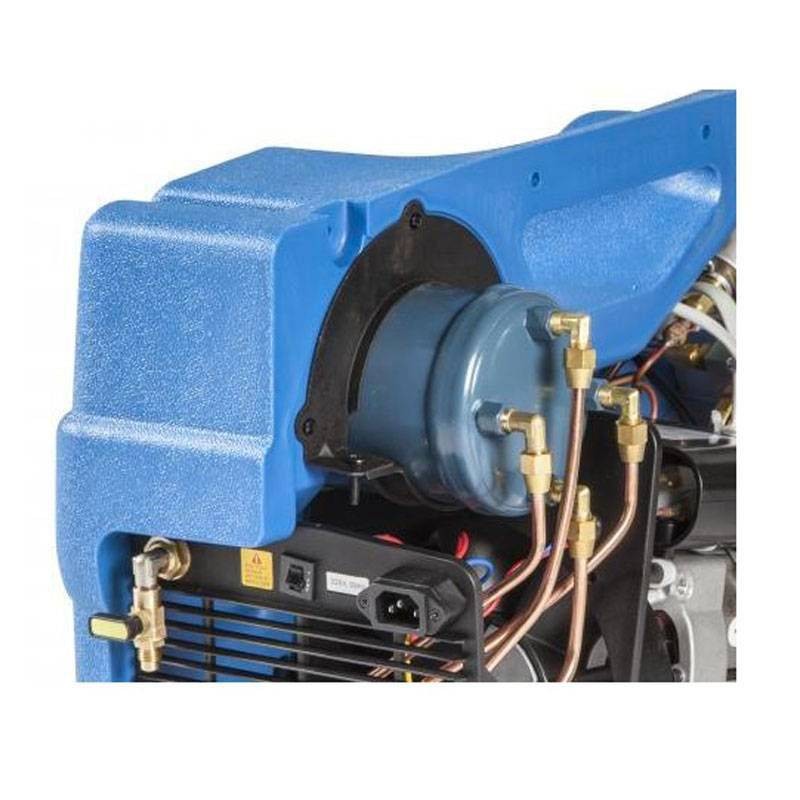

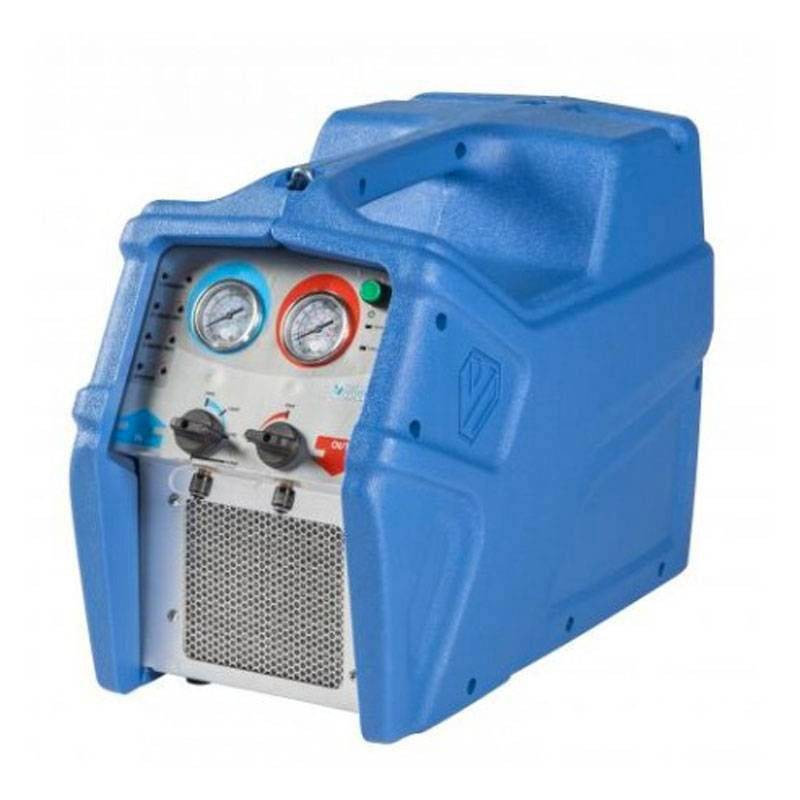

Wigam EASYREC-1 refrigerant recovery and recycling machine 13001019

Wigam
Wigam
WIG 13001019

Wigam EASYREC-1 single piston refrigerant recovery and recycling machine with distiller, dry compressor, integrated distiller, automatic flow control, with the following features:

  • CFC, HCFC, HFC and HFO compatible (also R32 and R1234ze)

  • 550 W dry piston compressor

  • Distillation system with automatic flow control

  • PURGE function for quick refrigerant changeover

  • Automatic shutdown when recovery is complete

  • Green/red LED signaling and pulse-free pressure gauges

Do you have questions about this product or did you not find what you were looking for? Ask us!
Wigam EASYREC-1 refrigerant recovery and recycling machine 13001019
€890.20
€890.20

€890.20
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€890.20

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Refrigerant recovery and recycling machine with integrated distillation Wigam

Compact, high-performance machine designed for recovery and recycling of major refrigerants CFCs, HCFCs, HFCs, and HFOs, including new generation refrigerants such as R32 and R1234ze. It is ideal for refrigeration technicians and HVAC operators who need a reliable and complete system under all operating conditions.

Integrated high-efficiency distiller

The heart of the system is the integrated distiller with automatic flow control. This device effectively separates oil, impurities and additives from the refrigerant, ensuring safe and clean recycling. The high internal heat exchange enables a fast and highly efficient process.

Intelligent functions and total safety

Equipped with an automatic PURGE function to empty the circuit before refrigerant change, and an automatic shut-off device that stops recovery at the end of the charge. The system also includes shutoff valves to prevent gas leakage, a 38.5-bar safety lockout, and pulse-free pressure gauges with fine adjustment.

Compact, rugged and ready to use

With its compact, transportable design, intuitive graphic panel, and visual indicator and filter, the unit is easy to use even in complex operating environments. Ergonomics are complemented by LED indicators (green for completed cycle, red for alarm) and a quiet and efficient dry compressor.

Technical Specifications Wigam Refrigerant Recovery and Recycling Machine

Technical Data

Feature Value
Refrigerant Compatibility. CFC, HCFC, HFC, HFO (R32, R1234ze)
Compressor Dry piston
Motor power 550 W
Power supply 220240V AC 50/60 Hz
Max. current consumption 4 A
Safety lockout 38.5 bar (3850 kPa / 558 psi)
Operating temperature 0/40°C
Distillation system Oil/impurity/additive separation
PURGE function Included (self evacuation)
Pressure gauges Pulse-free, with adjustment screw
Signals Green (ok) red (alarm) LED
Connections 1/4" SAE


Recovery Speed

Coolant Steam Liquid (recovery) Push-pull
R12 R134a 14 kg/h 96 kg/h 276 kg/h
R22 R407C 15 kg/h 108 kg/h 336 kg/h
R404A R410A R507 R32 16 kg/h 132 kg/h 378 kg/h
