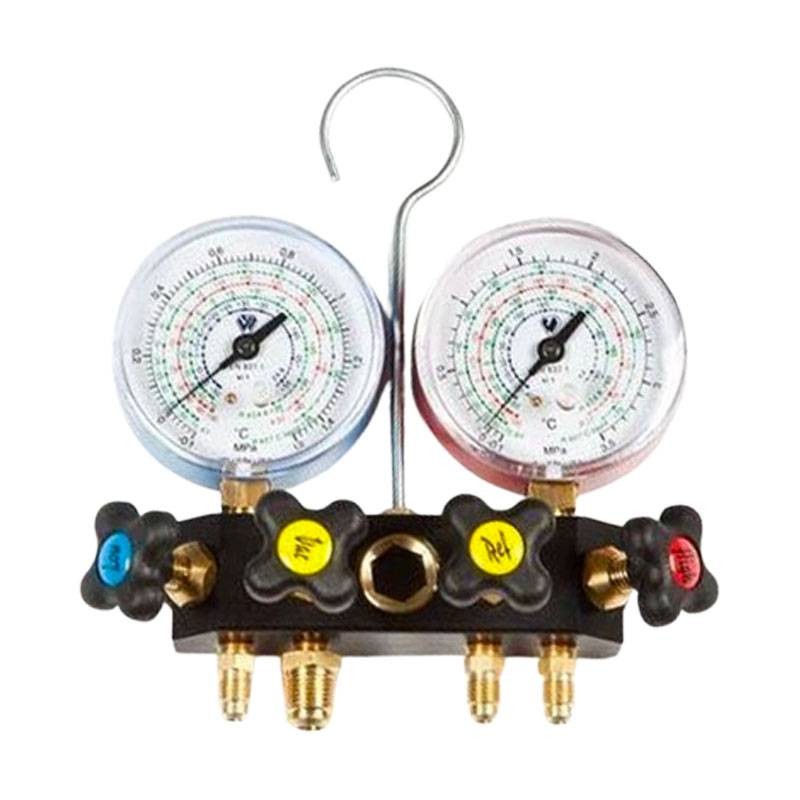

Wigam 4-way gauge assembly with 3/8 - 5/16 SAE manometers 04024024
WIG 04024024
Wigam PW4PF80/A4/5/ manometer assembly with 4 ways, Ø80 mm pressure gauges class 1.0 pulse free, A4 scale for R410A and R32, with the following features:
-
Connections: 3 x 5/16 inch SAE - 1 x 3/8 inch SAE
-
Gauges: 80 mm class 1.0 pulse free
-
Scale: A4 for refrigerants R410A and R32
-
Adjusting screw for precise calibration
€111.89
Items Available: 5
: 3
Frequently bought together
Wigam 4-way manometers assembly with A4 scale for R410A and R32
The Wigam PW4PF80/A4/5/K1 manometer assembly is designed for operations on HVAC systems using high-pressure refrigerants such as R410A and R32. Equipped with dedicated A4 scale, it enables accurate and safe reading under all operating conditions.
High-precision Ø80 mm pressure gauges
Equipped with Ø80 mm pulse free pressure gauges, class 1.0, the instrument ensures stable and reliable measurements. Built-in adjustment screws enable fine calibration, which is essential for professional use on air conditioning and refrigeration systems.
4-way configuration with pistons
The body of the unit is 4-way with pistons, offering complete control during charging, recovery and testing operations. Internal components ensure durability even under intensive use, withstanding the stresses of working with modern refrigerants.
Technical Specifications 4-Way Wigam Manometric Group
| Feature | Value |
|---|---|
| Type | 4-Way Piston Manometric Group |
| Manometers | Ø80 mm, class 1.0, pulse free |
| Scale | A4 (R410A - R32) |
| Adjusting screw | Present on both gauges |
| Connections | 3 x 5/16 SAE + 1 x 3/8 SAE |
| Applications | HVAC systems, refrigeration, high-pressure gas charging and control |
| Refrigerant compatibility | R410A, R32 |
There are no reviews
Data sheet
- Type: Manometers
