Wigam Digital vacuum meter VG 64-LX double 1/4 connection 09003020
WIG 09003020
Wigam VG 64-LX digital vacuum meter with dual connections, for measuring vacuum with high accuracy, selection from 5 units of measurement, with the following features:
-
Connections: Male 1/4 inch SAE
-
Selectable units: Microns, Pascal, millibar, Torr, milliTorr
-
Measuring range: 0 19,000 microns
-
Accuracy: ±10% (between 50 and 2000 microns)
-
Resolution: 0.5 microns (0140 microns)
-
Power supply: 3 AA alkaline batteries
€363.66
Items Available: 7
: 1
Frequently bought together

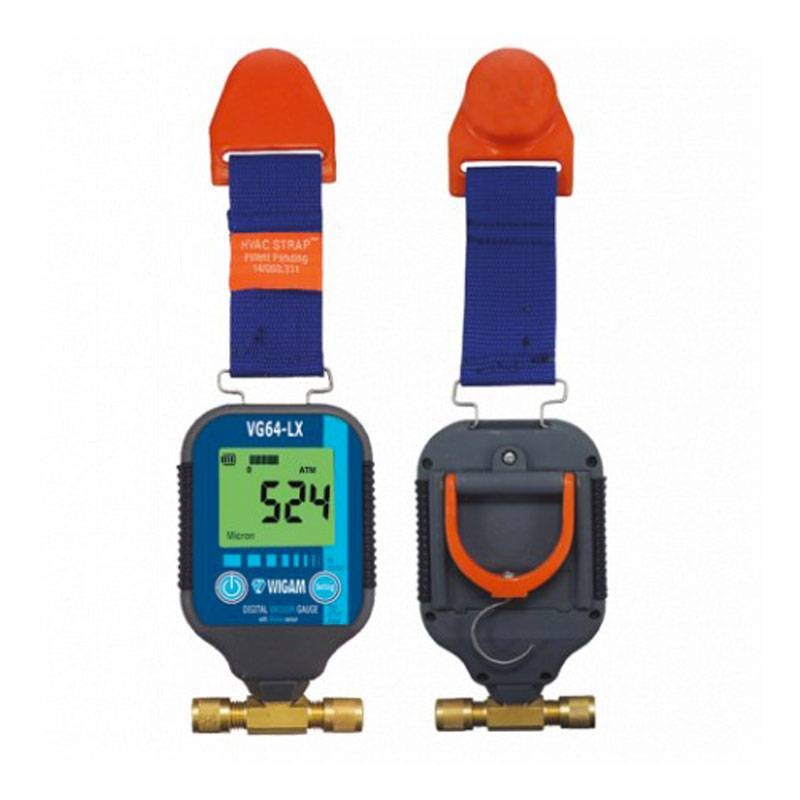

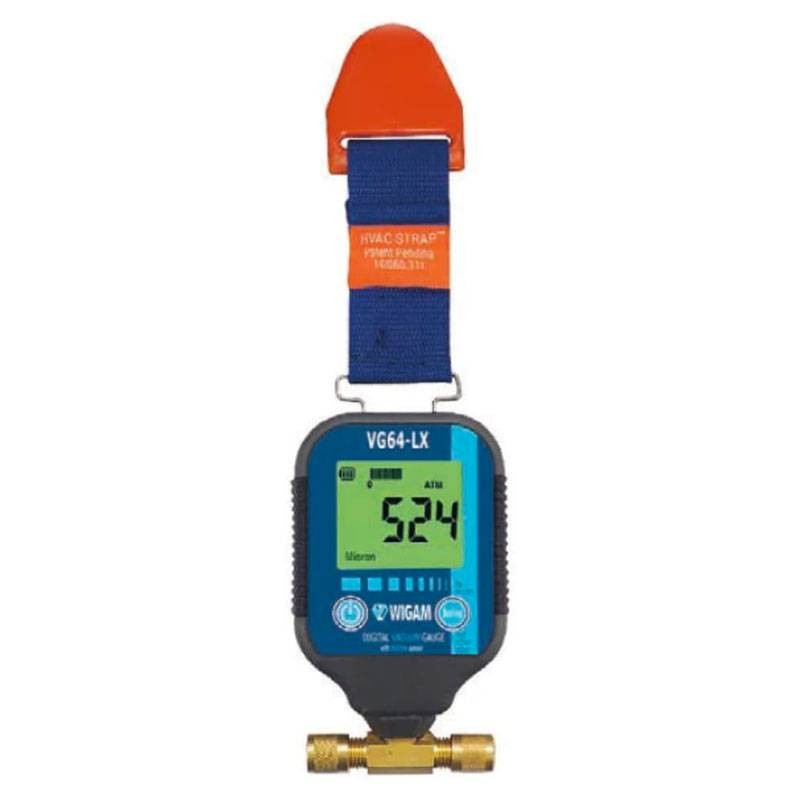

Digital vacuum meter for HVAC systems VG 64-LX Wigam
Accuracy and versatility for professional vacuum
The Wigam VG 64-LX digital vacuum meter is the ideal tool for refrigeration technicians and HVAC operators who need accurate vacuum measurement during plant evacuation. The device allows selection from five different units of measurement, adapting to any technical reading requirement.
Detailed vacuum measurement down to 19,000 microns
With a measuring range of 0 to 19,000 microns (equivalent to 2530 Pa or 25.30 mbar), the device offers ±10% accuracy in the range of 50 to 2,000 microns, with a fine resolution of 0.5 microns for the lowest values. These features make it perfect for accurate checks on refrigeration and air conditioning systems.
Rugged, practical and easy to use
With two 1/4-inch SAE male connections, the meter connects easily to existing systems and instruments. It is powered by three AA alkaline batteries, providing extended battery life even during heavy use. The compact and durable design makes it suitable for everyday use on the construction site or in the workshop.
Wide operating temperature range
The device can be used in environments with temperatures ranging from -17 to +65 degrees, ensuring full operation even in challenging weather conditions. An accurate, portable and reliable solution for all kinds of HVAC tasks.
Technical Specifications Wigam HVAC and Refrigeration Vacuum Meter
| Feature | Value |
|---|---|
| Measuring range | 0 - 19,000 microns |
| Accuracy | ±10% (50-2000 microns) |
| Resolution | 0.5 microns (0-140 microns) |
| Selectable units | Micron, Pascal, millibar, Torr, milliTorr |
| Connections | 2 x 1/4 SAE M |
| Power supply | 3 AA alkaline batteries |
| Maximum overpressure | 800 PSI |
| Operating temperature | -17/+65 degrees |
| Applications | HVAC systems, refrigeration, technical evacuation |
There are no reviews
Data sheet
- Type: Vacuum meters
