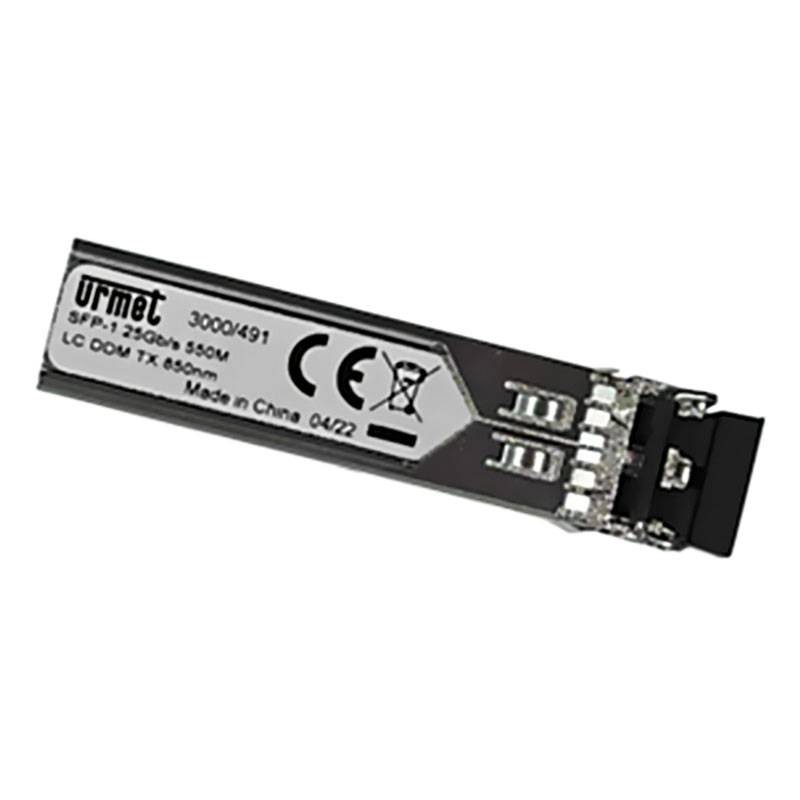

SFP Module for Urmet Fiber 1.25 Gb 3000/491
UTD 3000/491
8021156074044
Urmet 1.25Gb fiber SFP module with the following features:
- Up to 1.25Gb/s 1000 Base-SX Ethernet for data links
- Hot pluggable
- Duplex LC connector
- Single +3.3V power supply
- SFF-8472-compliant monitoring interface
- RoHS compliant
High-performance module with a duplex LC optical interface. It has a standard AC coupled CML for high-speed signal and LVTTL control and monitoring signals.
€32.42
Items Available: 2
: 1
High-performance module with a duplex LC optical interface. It possesses a standard AC coupled CML for high speed signal and LVTTL control and monitoring signals. The receiver section uses a PIN connector and the transmitter uses an 850 nm VCSEL laser, the link budget of up to 8dB guarantees this module for 1000Base-SX Ethernet 550m applications.
Caution: the frontally positioned lever latch must be lowered to remove the module.
Features:
- Up to 1.25Gb/s 1000 Base-SX Ethernet for data links.
- Hot pluggable
- Duplex LC connector
- Up to 550m over 50/125?m MMF
- VCSEL 850nm laser transmitter
- Single +3.3V power supply
- SFF-8472-compliant monitoring interface
- Low power dissipation, typically <1W
- Operating temperature range (-40°C to 85°C)
- RoHS compliant
There are no reviews
Data sheet
- Type: Transceivers
