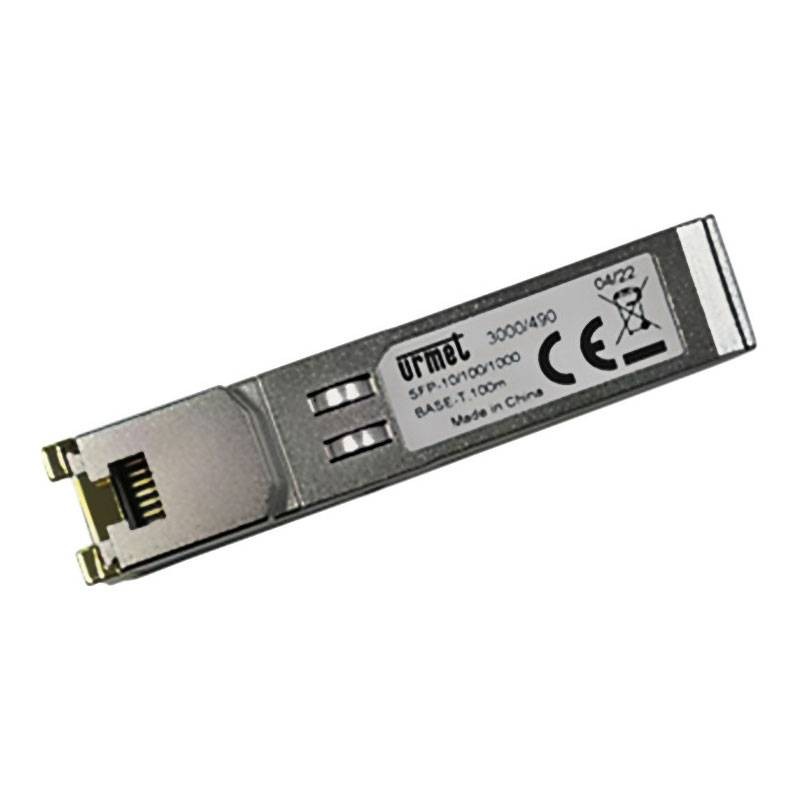

Urmet SFP Module for RJ45 1.25 Gb 3000/490
UTD 3000/490
8021156074051
SFP module for RJ45 Urmet 1.25 Gb with the following features:
- Up to 1.25Gb/s with bidirectional data links
- Hot pluggable
- Compact RJ45 connector assembly
- Single +3.3V power supply
- 10/100/1000 BASE-T with SGMII interface
- SFP MSA Compliant
Module for high-performance copper connections complying with Gigabit Ethernet and 10/100/1000BASE-T standards in IEEE 802.3-2002 and IEEE 802.3ab, supporting a data rate of 10/100/1000Mbps up to 100 meters with an unshielded twisted-pair cable of Cat. 5e or higher.
€37.05
Items Available: 2
: 1
The 3000/490 is a module for high-performance copper connections complying with Gigabit Ethernet and 10/100/1000BASE-T standards in IEEE 802.3-2002 and IEEE 802.3ab, supporting a data rate of 10/100/1000Mbps up to 100 meters with an unshielded twisted-pair cable of Cat. 5e or higher.
This module supports 10/100/1000Mbps full duplex data links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs of the cable are used with symbol rate at 250Mbps for each pair. It also provides standard SFP MSA-compliant serial ID information, which can be accessed with the address of A0h via the 2-wire serial EEPROM CMOS protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Please note: To pull out the module, the lever latch located on the front must be lowered.
Features:
- Up to 1.25Gb/s with bidirectional data links
- Cat. 5e or higher cable
- High-speed I/O
- Hot-pluggable
- All-metal housing for low EMI
- Compact RJ45 connector assembly
- Single +3.3V power supply
- Low power dissipation
- Operating temperature range (-40°C to +85°C)
- IC physical layer access via 2-wire serial bus
- 10/100/1000 BASE-T with SGMII interface
- Compliant with SFP MSA
- Complies with IEEE std 802.3TM-2002 standard
- Compliant with RoHS
There are no reviews
Data sheet
- Type: Transceivers
