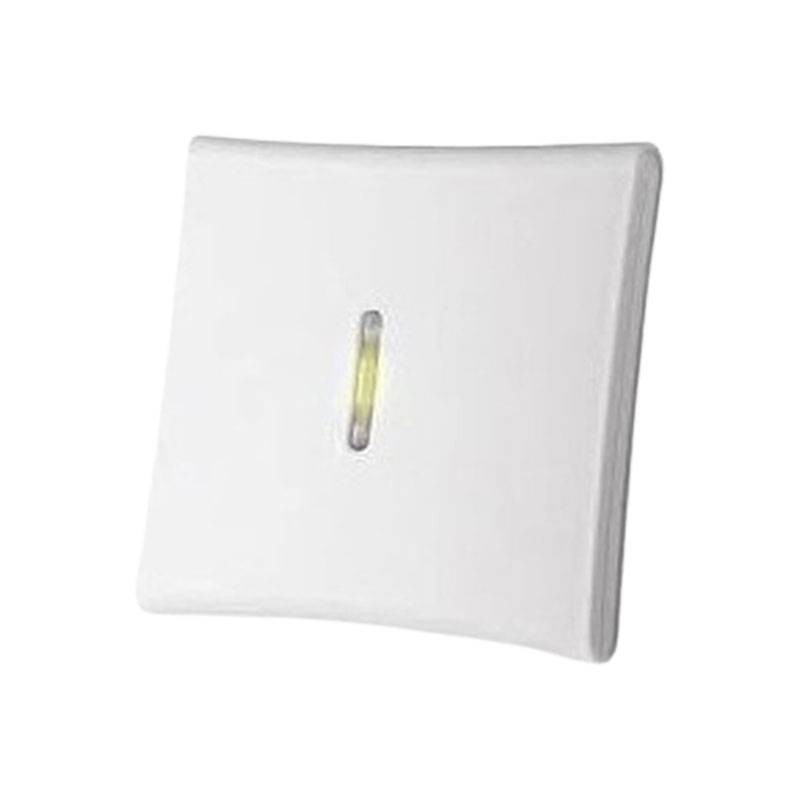

Bentel transceiver for Absoluta alarm control panels PLUS BW-PGH
BSY BW-PGH
7290109981840
Bentel transceiver for Absoluta PLUS alarm control panels with the following features:
- Power consumption: 60 mA
- Supports up to 128 wireless zones
- Also supports up to 32 remote controls
- Can be connected up to 230 m from the alarm control panel with 0.34 mm cables
- Connects to the Tranceiver Bus
BW-PGH transceiver can be used with Absoluta Plus/Absoluta 630 alarm control panels.
€140.71
Items Available: 10
: 3
Frequently bought together
Bentel BW-PGH Transceiver adds wireless capabilities to Absoluta Plus alarm control panels. PowerG technology: advanced security technology that eliminates wires and provides maximum protection to modern residential and professional environments.
Useful for connecting to the control panel, numerous bentel wireless devices such as BW-SRI indoor siren, BW-SRO outdoor siren, BW-REP PowerG repeater, BW-RCH PowerG radio control, BW-IRT PIR curtain detector; BW-DTM DT detector and many more.
Features:
- Voltage: draws current from the Absolute Plus/Absolute 630 alarm control panel (10.8 VDC to 12.5 VDC) - (Limited Power Supply)
- Frequency: 868 MHz (BW-PGH)
- Supervision - programmable supervision window
- Operating temperature: EU= -10°C +55°C
- Relative humidity: 93%, non-condensing
- Built-in and independent anti-opening and anti-tear
Compatible Wireless Devices:
- BW-SRI
- BW-SRO
- BW-REP
- BW-RCH
- BW-IRT
- BW-DTM
- BW-ODT
- BW-SHK
- BW-MCN/BW-MCB
- BW-SMD
- BW-FLD
- BW-GBD
- BW-802
- BW-862
- BW-902
- BW-312
- BW-303
There are no reviews
Data sheet
- Type: Transceivers
