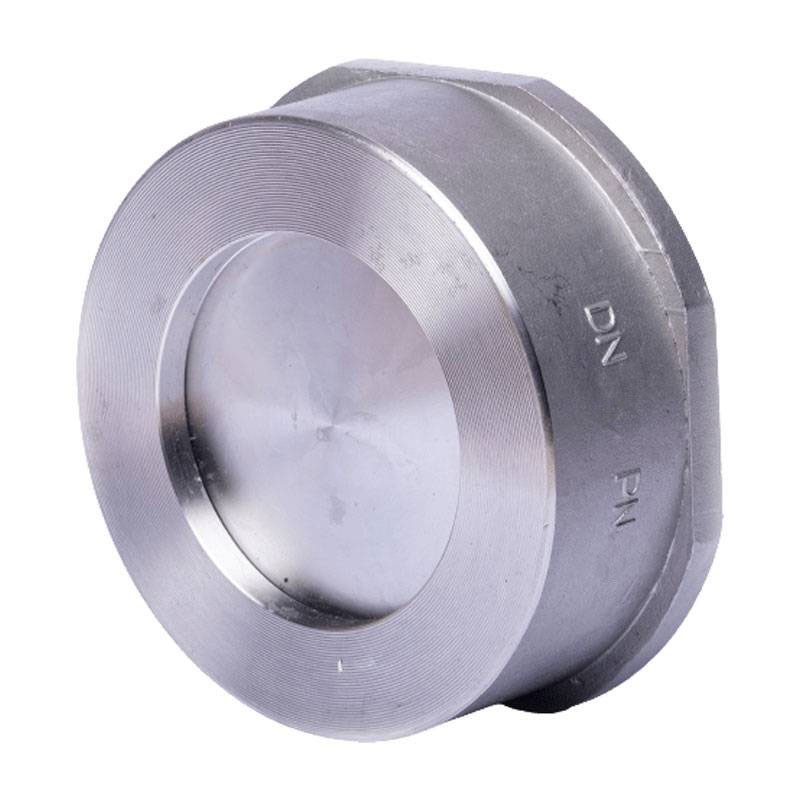

Valvorobica water disc wafer check valve PN40 D 32 mm 4009032
26M 4009032
Valvorobica wafer disc check valve, for high pressure and temperature up to 180 degrees, for: water, industrial fluids, chemical plants, HVAC, marine, with the following characteristics:
-
Diameter: 32 mm
-
Nominal pressure: PN40
-
Temperature range: -20/+180 degrees
-
Body and disc: AISI 316 stainless steel
-
Spring and retainer: AISI 316 stainless steel
-
Screw: steel A193 B8
-
Connectable with flanges: EN 1092-1 PN10/PN16
€30.87
Items Available: 6
: 3
High-strength check valve for high-performance systems
The Valvorobica wafer disc check valve is designed for installation in systems where high mechanical and thermal performance are required. With an operating pressure of up to 40 bar and a temperature range of -20°C to +180°C, it ensures safety and reliability under demanding operating conditions.
AISI 316 stainless steel materials
Body and disc are made of AISI 316 (CF8M) stainless steel, a material known for its excellent resistance to corrosion and chemicals, making this valve ideal for applications in aggressive, industrial and marine environments.
Compatibility and easy installation
The valve is wafer type, compact and lightweight, easy to install between flanges according to EN 1092-1 PN10 or PN16, without requiring additional space or modifications to the existing system.
Strong and durable internal components
The recoil spring, spring retainer and retaining screw are also made of AISI 316 or equivalent A193 B8 stainless steel, for increased durability and mechanical strength even under intense or continuous cycling.
Technical Specifications Valvorobica Check Valve
General Data
| Pressure rating | PN40 |
|---|---|
| Diameter | 32 mm |
| Operating temperature range | -20/+180 degrees |
| Flange compatibility | EN 1092-1 PN10 / PN16 |
Materials
| Body | AISI 316 |
|---|---|
| Disc | AISI 316 |
| Spring and retainer | AISI 316 |
| Screw | A193 B8 |
Applications
| Areas of use | Water, industrial fluids, chemical plants, HVAC, marine |
|---|
There are no reviews
Data sheet
- Diameter: 32mm
- Type: Check valves
- Material: Steel
