Giacomini Clapet Check Valve 3/4 N6Y004

Giacomini
Giacomini
GIM N6Y004 8009902046637

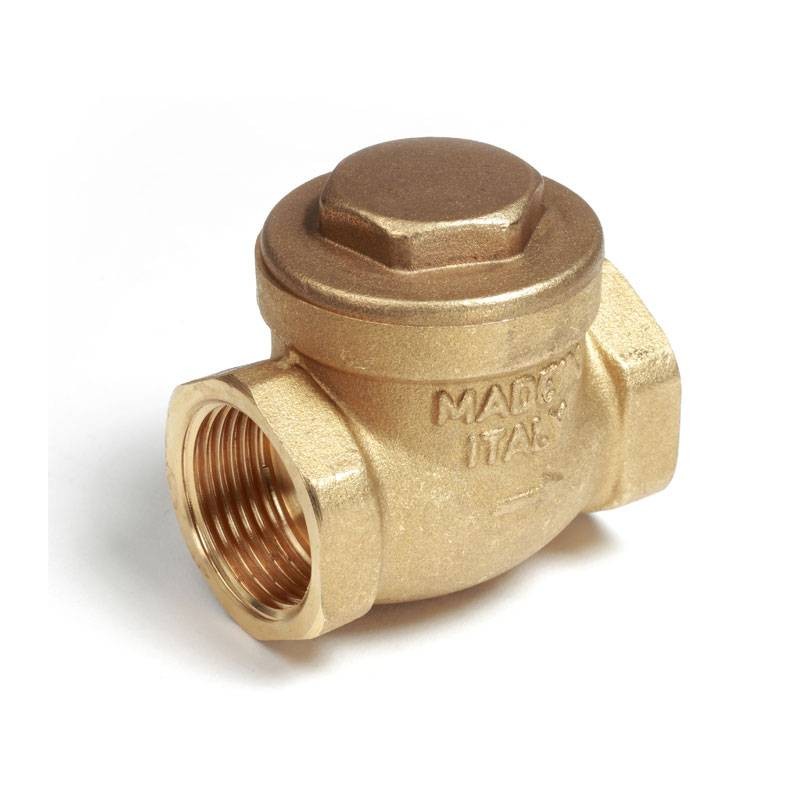

Giacomini clapet check valve size: 3/4, brass, with seal on metal seat:



  • Maximum operating temperature 100 °C
  • Maximum operating pressure 16 bar
  • Dimensions: size G 3/4 - size H mm 51 - size L mm53
Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini Clapet Check Valve 3/4 N6Y004
€9.44
€9.44

€9.44
Tax included
Calculate shipping cost
Items Available: 16
Further availability of the manufacturer
€9.44

Buy it within and receive it from Monday, 9 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Product Overview:

  • N6 metal-sealed clapet check valves are one-way operating devices, i.e., they prevent the return of pressurized fluid. They find natural use in domestic water systems, water superelevation, firefighting, heating systems, thermal power plants, solar systems, industrial and agricultural water systems in general. Internal hydraulic sealing is carried out by means of the forces exerted by the mass of a tilting plug and the pressure of the liquid above a gasket, which implements the seal even at minimal back pressures
  • Since such valves operate by means of the gravitational force acting on the rocker plug (clapet or clapper), they have no universal characteristic as far as positioning is concerned. The advantage of these valves is the low pressure drop possessed due to the rounded shape of the body and the large passage cross-section obtained from the oscillation of the plug; these elements also make them very quiet.



Technical data:

  • Compatible fluids: water for thermal systems, domestic water, glycol water (max. 30 % glycol)
  • Connections: female threaded ISO 228
  • Temperature range: 5÷95 °C (110 °C for occasional peaks)
  • Maximum operating pressure: 16 bar
  • Opening pressure: 0.05 bar



Materials:

  • Valve body: brass UNI EN 12165 - CW617N (3/8÷1)
  • Cap: brass UNI EN 12165 - CW617N
  • O-ring: NBR
  • Clapper: brass UNI EN 12165 - CW617N



Installation:

  • Clapet check valves can be installed horizontally or vertically respecting the flow direction indicated by the arrow stamped on the valve body. In the horizontal position the valve must be installed with the inspection cap facing upward, otherwise the valve cannot operate. In the vertical position, the valve operates only with the upward flow direction. Installation on pipes is done by threads, using normal plumbing practices.

There are no reviews

Data sheet

Type:
Check valves
Connection:
F/F
Connections:
3/4 inches
