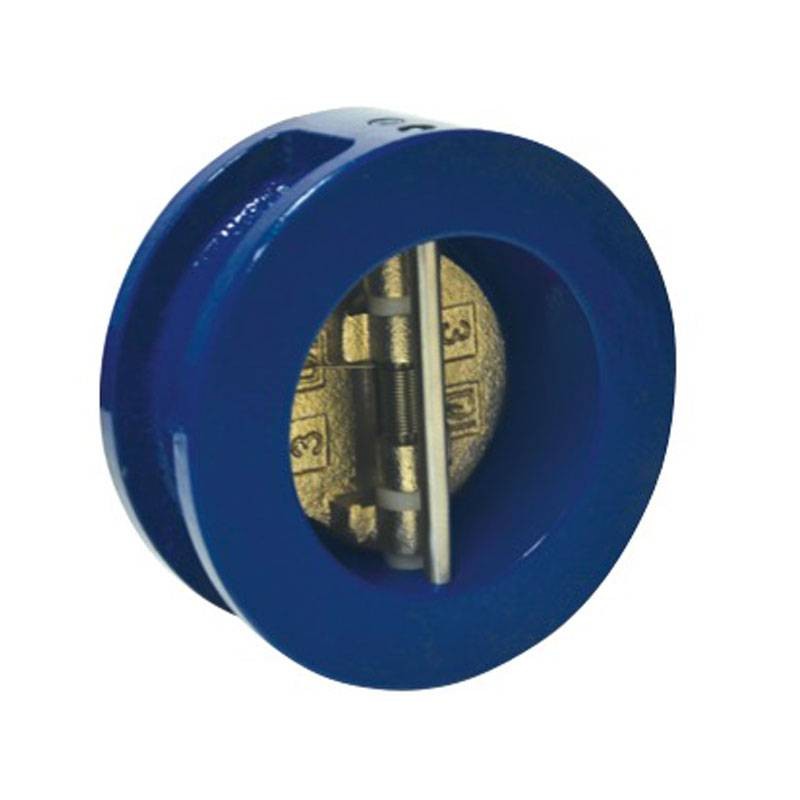

Valvorobica Double swing check valve for water D 100 mm PN16 VRDB2G25D100
26M VRDB2G25D100
Valvorobica double swing check valve with stainless steel components and FKM seal, ideal for water systems up to 150 degrees, with the following features:
-
Diameter: 100 mm
-
Pressure rating: PN16
-
Body: Heavy-duty and durable cast iron
-
Strikers, shaft and spring: Stainless steel
-
Gasket: FKM for high chemical and thermal resistance
-
Bushing: Teflon to reduce friction and wear
-
Temperature range: -10/+150 degrees
€66.80
Items Available: 4
: 2
Reliable Valvorobica Check Valve for Water
This double leaf check valve is designed to prevent backflow in water systems, ensuring proper water flow in one direction only. Laction of the spring-loaded clappers ensures quick and safe closure even at low pressures.
High-quality materials for long life
Cast iron body provides structural strength, while stainless steel clappers, spring and lasse offer corrosion resistance. FKM (fluoro elastomer) gasket ensures high tightness even at high temperatures and in the presence of moderate chemicals.
High performance and low maintenance
Thanks to the Teflon bushing, the valve reduces friction between moving parts, improving smooth operation and reducing mechanical wear. The compact and balanced design also makes it suitable for systems with limited space or requirements for low opening loads.
Technical Specifications Valvorobica Check Valve
General Data
| Diameter | 100 mm |
|---|---|
| Working pressure | PN16 |
| Temperature range | -10/+150 degrees |
Materials
| Body | Cast iron |
|---|---|
| Knockers | Stainless steel |
| Axle | Stainless steel |
| Spring | Stainless steel |
| Gasket | FKM |
| Bushing | Teflon |
Application
| Areas of use | Plumbing, HVAC, drinking water and industrial systems |
|---|
There are no reviews
Data sheet
- Diameter: 100mm
- Type: Check valves
- Material: Cast iron
