Giacomini 2-inch disc check valve R60Y038
GIA R60Y038
8009902272760

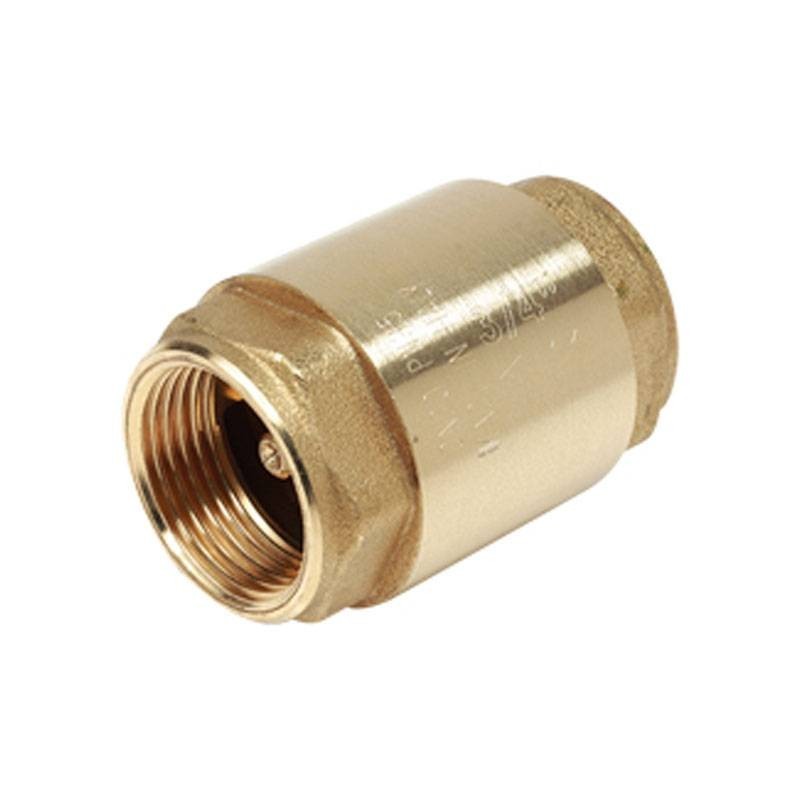

Giacomini brass disc check valve with the following features:
- With metal material plug
- Brass body UNI EN 12165 CW617N
- Maximum operating temperature 110 °C
- Maximum operating pressure 35 bar (3/8"÷1") - 25 bar (1 1/4"÷2"); 12 bar (2 1/2"÷4")
- Opening pressure 0.02 bar

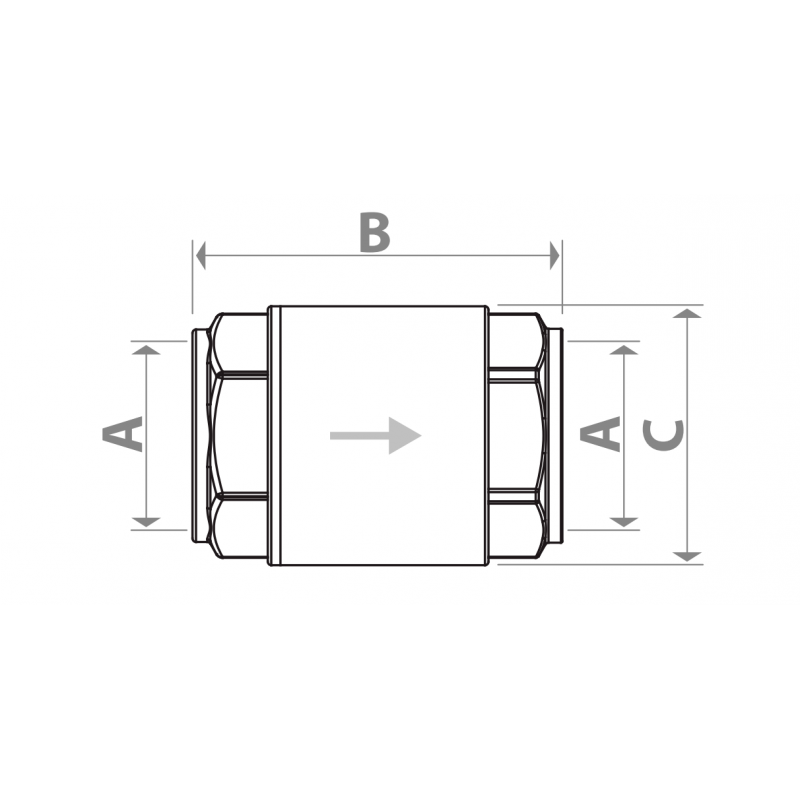

- Measurements: A fittings: 2 inches - B 80mm - C78mm
- Materials: body brass UNI EN 12165 - CW617N - gasket: NBR - spring: stainless steel AISI 302
- Compatible fluids: water for thermal systems, domestic water, glycol water (max. 30 % glycol)
- Connections: female threaded ISO 228
- Temperature range: 5÷95 °C (110 °C for occasional peaks)
- Opening pressure: 0.02 bar
Giacomini 2-inch disc check valve R60Y038
€33.40
€33.40
Tax included
Tax included
Pay in installments with Klarna
Items Available: 81
R60 check valves are devices with unidirectional operation, that is, they prevent the return of fluid under pressure. They find natural use in domestic water systems, water superelevation, heating systems, thermal power plants, heat generators (wall boilers, wood boilers, heat pumps), solar systems, industrial and agricultural water systems in general. The internal architecture allows sealing and installation in any position.
R60 check valves can be installed in any position respecting the direction of flow indicated by the arrow stamped on the valve body. Installation on piping is done by threads using standard plumbing practices.
Maintenance: Check the valve periodically, depending on frequency of use and working conditions. If there are any leaks at the seal, these may be caused by deposits or foreign matter. In such a case, it is necessary to disassemble the valve from the system and carefully clean the seal by removing all impurities with compressed air or mechanical action.
There are no reviews
Data sheet
- Type:
- Check valves
- Connection:
- F/F
- Connections:
- 2 inches
