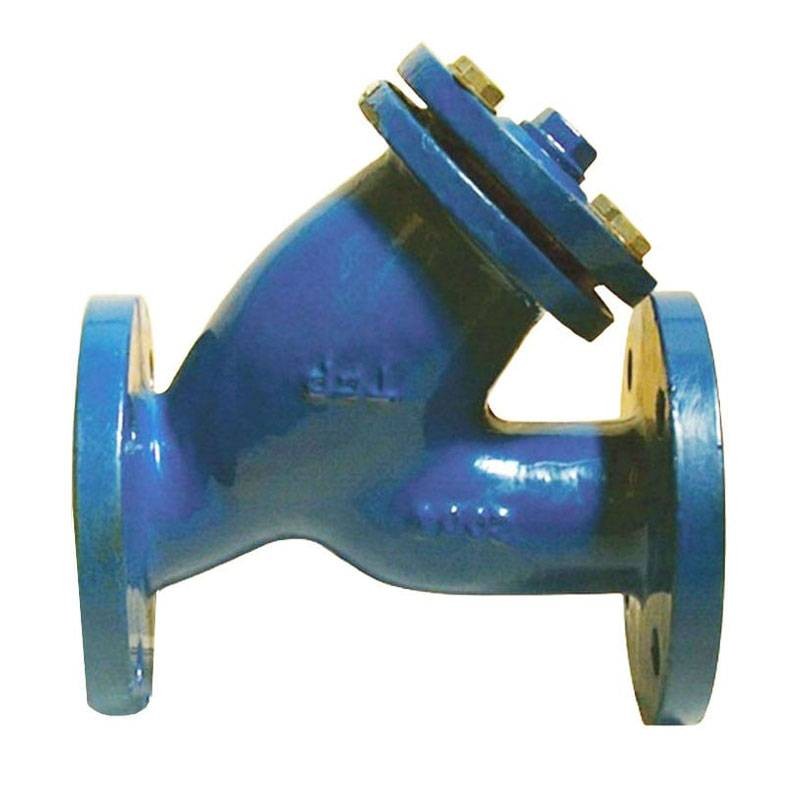

Valvorobica D 125 mm PN16 cast iron Y filter for drinking water FIFY3G25D125
26M FIFY3G25D125
Valvorobica cast iron Y strainer with stainless steel filter, ideal for drinking water up to 120 degrees, with the following features:
-
Diameter: 125 mm
-
Pressure: PN16
-
Body and cover: GG25 cast iron with epoxy coating
-
Strainer: Stainless steel
-
Gasket: High-strength graphite
-
Maximum operating temperature: < 120 degrees
€191.06
Items Available: 2
: 1
Valvorobica Y filter for water systems
The Valvorobica Y-filter is designed to retain impurities and solid particles in civil and industrial water systems, improving system efficiency and the life of downstream components. The Y-shaped configuration facilitates sediment collection and removal via the bleed plug.
Durable materials for long service life
Constructed of epoxy-coated GG25 cast iron, the filter ensures corrosion resistance and reliability even under harsh operating conditions. Internal SS304 stainless steel filter provides effective protection against sediment and contaminants.
Suitable for drinking water and high temperatures
Thanks to the materials used, including graphite gaskets and stainless steel filter, the product is perfectly suitable for use with potable water and withstands up to 120 degrees, making it ideal for plumbing, heating and water distribution systems.
Ease of maintenance
The bleed plug allows for quick cleaning of the filter without having to disassemble the inner component, simplifying routine maintenance work.
Technical Specifications Valvorobica Y-Filter
General Data
| Diameter | 125 mm |
|---|---|
| Pressure rating | PN16 |
| Maximum temperature | < 120°C |
Materials
| Body and cover | Cast iron GG25 with epoxy coating |
|---|---|
| Internal strainer | SS304 stainless steel |
| Gasket | Graphite |
| Bleed plug | Cast iron |
Application
| Areas of use | Potable water, plumbing and thermal systems |
|---|
There are no reviews
Data sheet
- Diameter: 125mm
- Type: Hydraulic and Dirt Separators, Filters
- Material: Cast iron
