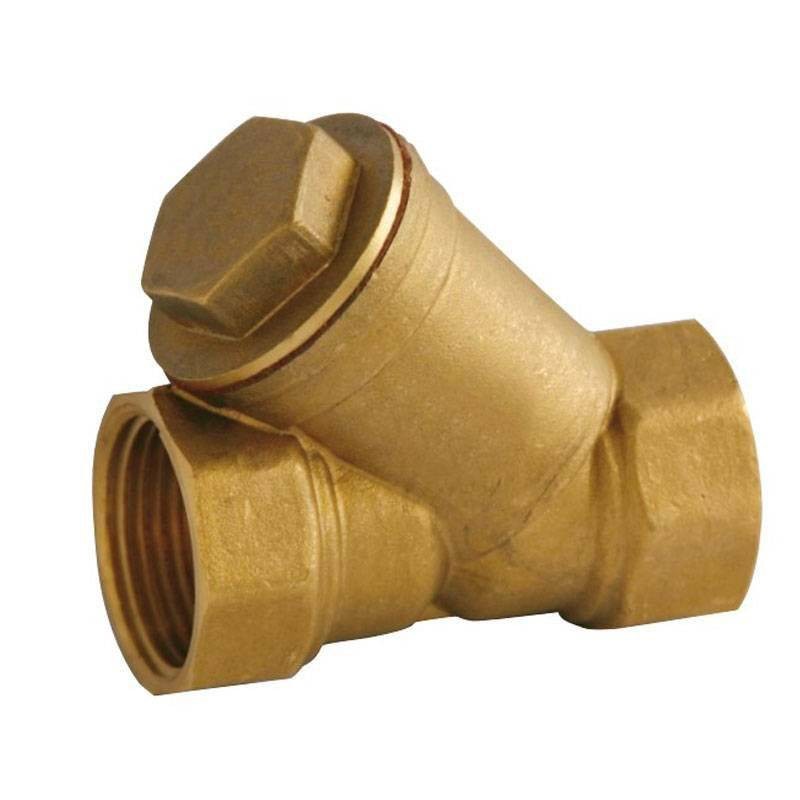

Atusa brass Y-Filter for pipes 2 inches PN 16 VS205008
EUC VS205008
8432388269274
Reliable and durable Atusa Y Filter designed to protect hydraulic systems and circuits from impurities. It provides high performance in various applications, with the following features:
-
Connections: Female/Female 2 in.
-
Pressure rating: PN16
-
Installation: Horizontal or vertical
-
Body and cover material: Brass
-
Strainer: Stainless steel
-
Gasket: PTFE
-
Compatible with: Hot and cold water, oil and diesel fuel
€38.97
Items Available: 16
: 15
Reliable Atusa Y Filter for every type of system
The Atusa 2-inch Y Filter is the ideal solution for protecting hydraulic systems from solid impurities that can damage valves, pumps, and control devices. The brass body and stainless steel filter ensure high corrosion resistance, even in demanding environments.
Maximum installation versatility
Compatible with both horizontal and vertical installation, this filter easily adapts to a variety of plant configurations. It is perfect for civil, industrial or agricultural installations, offering consistent and safe performance.
Ideal for hot, cold and oily fluids
The filter is designed to withstand temperatures up to 120 degrees and a pressure rating of 16 bar, making it suitable not only for water, but also for oil and diesel fuel. The PTFE gasket ensures an airtight and long-lasting seal.
Recommended applications
-
Heating and cooling systems
-
Water distribution systems
-
Oil or diesel oil treatment systems
-
Industrial or agricultural circuits
-
Protection of valves, pumps, meters

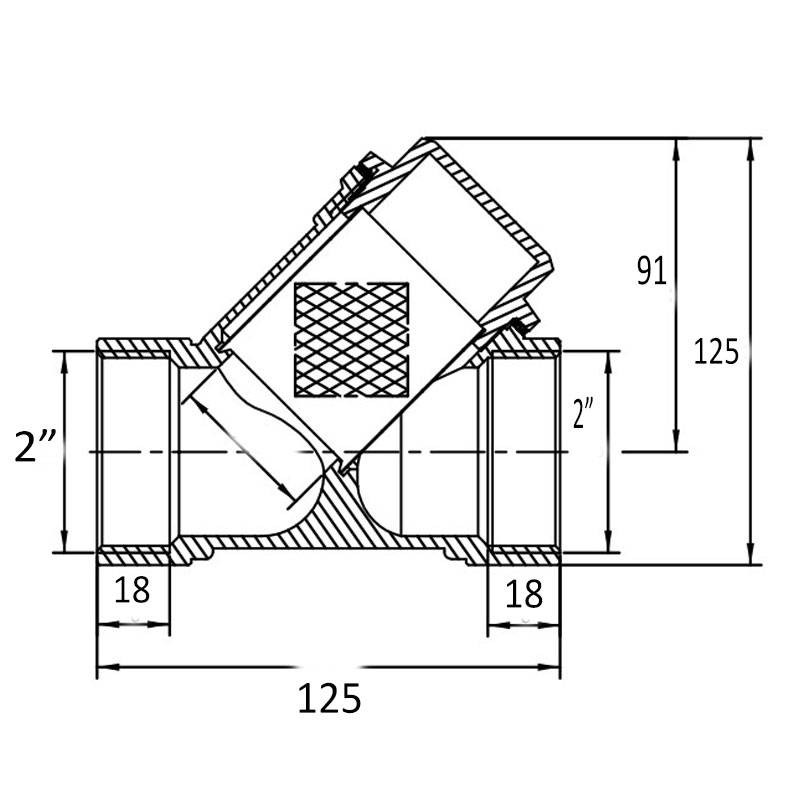

Technical Specifications Atusa Brass Y-Filter
| Parameter | Value |
|---|---|
| Connections | Female/Female 2 inches |
| Body Material | Brass |
| Internal filter material | Stainless steel |
| Gasket | PTFE |
| Pressure rating | PN16 (16 bar) |
| Operating temperature | -10°C / +120°C |
| Installation type | Horizontal or vertical |
| Compatible fluids | Hot/cold water, oil, diesel fuel |
There are no reviews
Data sheet
- Type: Hydraulic and Dirt Separators, Filters
- Connection: F/F
- Model: Threaded
- Connections: 2 inches
- Material: Brass
