RBM Magnetic dirt separator filter MG1 under boiler 30700500
RBM 30700500
8019495416700

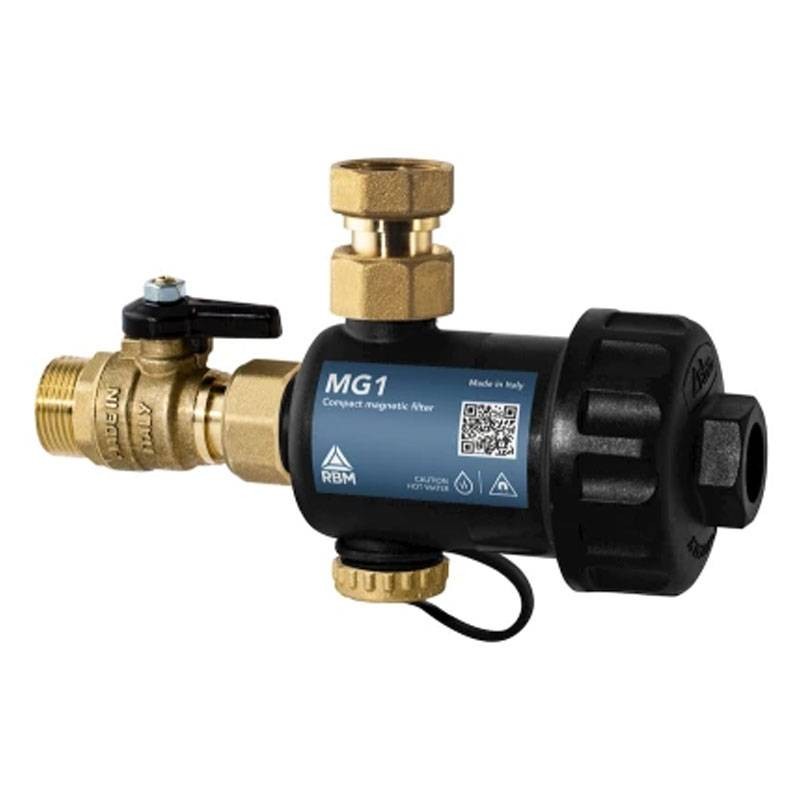

RBM Magnetic dirt separator filter MG1 3/4" under boiler, black Super compact, with neodymium magnet and stainless steel cartridge: protects the boiler from impurities and corrosion.
-
Threaded connections G 3/4 inches M/F UNI-EN-ISO 228
-
Flow rate Kv: 5.49 m³/h
-
Body in high-strength plastic polymer
-
Filter cartridge in AISI 304 stainless steel
-
Filtration grade: 800m
-
Neodymium magnet of 11,000 gauss
-
Max pressure: 3 bar Temperature: 0÷90°C
-
Complete with ball valve and swivel fitting
€62.22
Items Available: 104
: 94
MG1 RBM: the compact dirt separator that protects the boiler
The magnetic dirt separator filter RBM MG1 is a device designed to ensure maximum protection of the domestic boiler against solid impurities, sand, rust, and magnetic or non-magnetic particles. Thanks to its extremely compact size, it is easily installed under the boiler, even in the smallest systems where classic dirt separators would not fit. The black version (code 30700500 series 3070.A) is supplied complete with a ball valve and swivel fitting for practical and quick connection to the boiler.
Effective filtration against rust, sand, and magnetic impurities
The heart of the MG1 system is its AISI 304 stainless steel filter cartridge with a filtration grade of 800 microns, combined with a powerful neodymium magnet (11,000 gauss). This configuration allows capturing both ferrous particles (such as iron oxides, rust) and non-magnetic impurities (such as sand and scale), protecting over time the delicate components of the system, such as exchangers and circulators.
Continuous and long-lasting protection for the boiler
The MG1 dirt separator works continuously during the normal operation of the system, progressively retaining circulating impurities. It is particularly effective during the start-up phase of new systems, when the amount of debris and residues is greater. Thanks to its installation on the return circuit, at the boiler inlet, it prevents dirt accumulation in the generator, prolonging its useful life and improving its efficiency.
Reliable materials and system compatibility
Made of high-performance plastic polymer, the MG1 filter is resistant to thermal and chemical fluctuations. The elastomer seals ensure perfect hydraulic sealing, while the MF threaded connections UNI-EN-ISO 228 ensure compatibility with most domestic hydraulic systems. The integrated ball valve allows for quick maintenance and controlled discharge of impurities.
There are no reviews
Data sheet
- Type: Hydraulic and Dirt Separators, Filters
