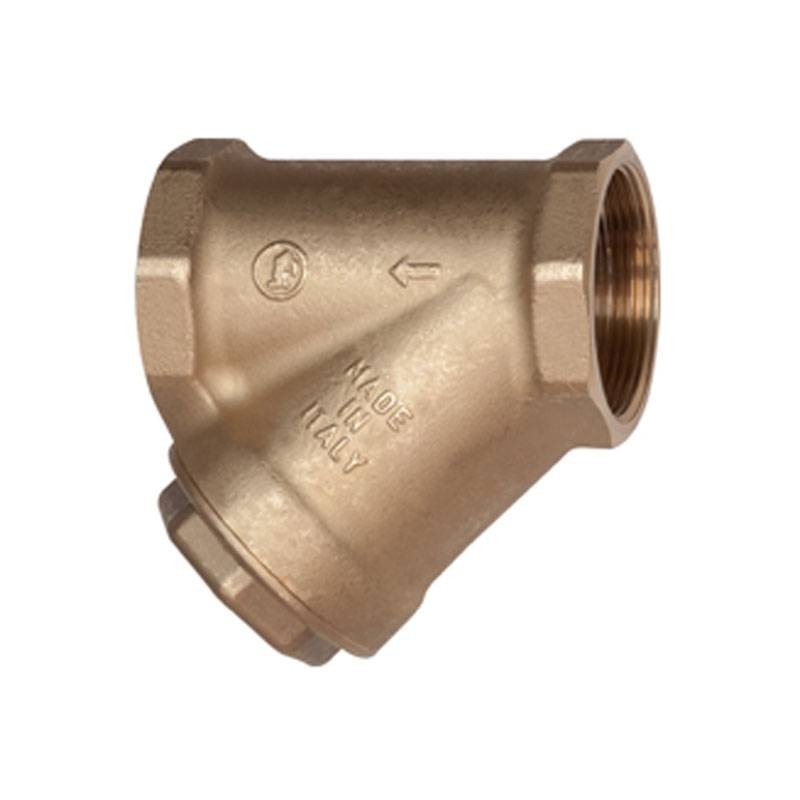

Giacomini Inspectable Y filter with magnet G 1"F R74MY015
GIM R74MY015
8009902405588
Inspectable Y filter inspectable Giacomini R74MY015 1 inch female, with stainless steel basket and integrated magnet for the protection of systems from ferrous impurities.
-
Inspectable Y filter with 1 Inch female connection
-
Stainless steel filter basket
-
Removable internal magnet to retain ferrous particles
-
Brass body and cap resistant to corrosion
-
Max operating pressure: 30 bar
-
Max temperature: up to 110 °C (with stainless steel coating)
€29.14
Items Available: 9
: 9
Inspectable Y filter Giacomini R74MY015: Advanced protection for thermohydraulic systems
The inspectable Y filter Giacomini R74MY015 is designed to protect heating, cooling, and hydraulic distribution systems from solid impurities and ferrous particles. Thanks to the presence of an internal magnet and a stainless steel filter basket, this filter effectively retains sand, rust, metal flakes, and other debris, contributing to the proper functioning of valves, pumps, exchangers, and other delicate components.
Durable structure and quality materials
The body and cap of the filter are made of high-quality brass, a material resistant to corrosion and thermal shocks. The stainless steel filter basket ensures long-lasting performance over time. The filter is easily inspectable and cleanable, making maintenance simple and quick, without the need to dismantle the entire system.
Integrated magnet and upgrade possibility
The magnet included in the filter allows for the separation of magnetic particles present in the water, preventing damage to sensitive components. In high-temperature operating conditions, it is possible to replace the standard magnet with the P74M-1 model, more heat-resistant, to ensure optimal performance up to 110 °C.
High operational performance
The Giacomini R74MY015 filter can operate up to a maximum pressure of 30 bar, making it suitable for applications in medium and high-pressure systems. The maximum operating temperature varies based on the type of magnet coating:
-
Up to 110 °C with stainless steel coated magnet
-
Up to 70 °C (with peaks at 90 °C) with plastic coated magnet
These features make it extremely versatile for different system configurations.
There are no reviews
Data sheet
- Type: Hydraulic and Dirt Separators, Filters
- Connection: F
- Model: Threaded
- Connections: 1 inch
- Material: Brass
