Giacomini thermostatic radiator valve liquid sensor quick coupling
GIM R470X001
8009902095581
The Giacomini R470X001 thermostatic radiator valve is designed to provide precise and constant room temperature control, improving comfort and optimizing energy savings. With its liquid sensor and Clip Clap quick-connect system, this solution is one of the most reliable and easy-to-install options on thermostatic valves:
-
Liquid sensor: Ensures rapid response to temperature changes
-
Clip Clap quick-connect system: Quick and easy installation
-
Low thermal inertia: Precise control of ambient temperature
-
Temperature adjustment: Minimum calibration: 8 °C Maximum calibration: 30 °C
-
Universal compatibility: Can be installed on all TG, D, F series thermostat valves
-
Rugged and durable: Operates over a wide temperature range
€11.53
Items Available: 923
: 227
Giacomini thermostatic radiator valve liquid sensor quick coupling
Main features
- Liquid sensor: Quick response to temperature changes.
- Temperature adjustment: Range from 8 °C to 30 °C.
- Clip Clap system: Quick and secure attachment to the valve body.
- Low thermal inertia: Constant and precise temperature control.
- Compatibility: Can be installed on Giacomini TG, D, F series thermostatic valves.
- Maximum pressure: 10 bar with compatible valves.
Benefits
- Energy saving: Modulates water flow while maintaining constant room temperature.
- Living comfort: Automatic and precise temperature regulation.
- Quick installation: Clip Clap quick coupling system.
- Long life: Durable structure with high-quality liquid sensor.
- Universal compatibility: Suitable for thermostat valves of TG, D, F series.
Operation
The Giacomini R470X001 thermostatic radiator valve detects changes in ambient temperature via the liquid sensor. The increase or decrease in temperature causes a change in liquid volume, actuating a mechanism that opens or closes the valve. This allows the water flow to the radiator to be modulated, keeping the desired temperature constant and reducing energy waste.
Applications
- Independent temperature control on radiators.
- Residential and commercial heating systems.
- Compatible with Giacomini thermostatic valves of TG, D, F series.
Technical Characteristics
| Specifications | Details |
|---|---|
| Thermal Inertia | Low |
| Sensor | Liquid-filled |
| Coupling System | Quick CLIP CLAP |
| Adjustment Positions | Temperature Range 8÷30 °C |
| Temperature Range (Valve Bodies) | 5÷110 °C |
| Maximum Operating Pressure (Valve Bodies) | 10 bar |
| Maximum Differential Pressure in the Valve |
|
| Minimum Head Calibration | 8 °C |
| Maximum Head Calibration | 30 °C |
| Valve Compatibility | Can be installed on all TG, D, F series thermostatically controlled valves |
| Storage Temperature Range | -20/+55 °C |

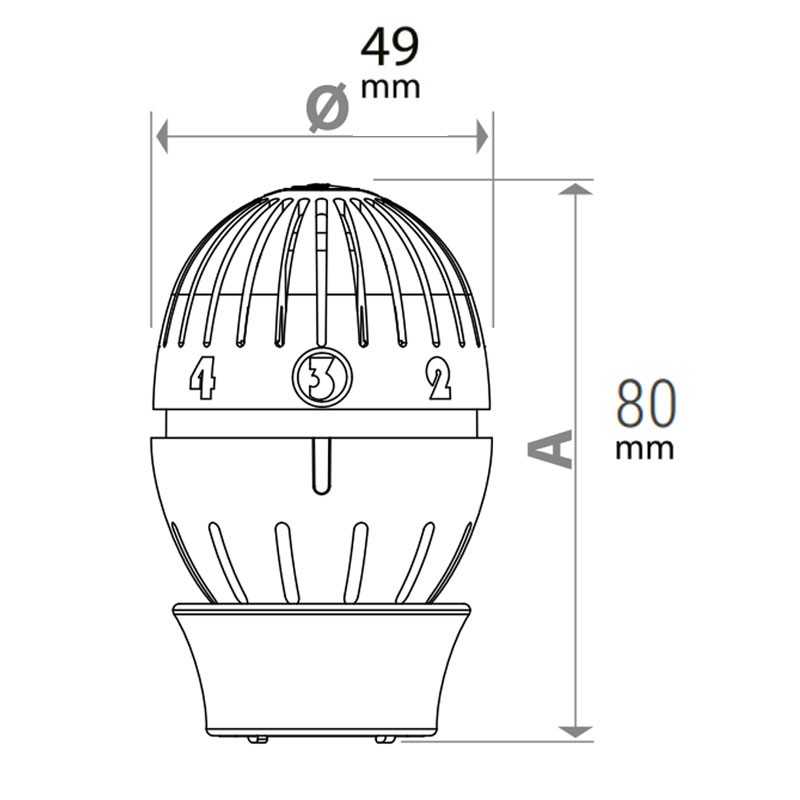

| Dimensions | Height 80 mm - Diameter 49 mm |
Fantástico. Buen producto..........................
Tutto ottimo come da ordine, le valvole sono inballate in scatoli originali.
Semplici da installare e funzionali. A essere ipercritico, cosa che oggi va molto di moda, i numeri delle posizioni sono poco leggibili in penombra.
Funciona perfectamente y es como se anuncia
Muy fácil la conexión, es sacar uno y poner otro
El producto es el original y es exactamente igual que el comprado en España pero casi a mitad de precio. Por poner una pega diré que el envío economy a tardado 12 días en llegar, pero dentro del plazo estipulado. Volveré a comprar en Elettonew.
Ottimo acquisto ad un prezzo super competitivo
Je viens de l installer, je préfère attendre avant de laisser un commentaire.
De bonne qualité, origine giacomini,.
Produit conforme. Livraison rapide. Prix compétitifs.
Data sheet
- Type: Thermostatic Radiator Valves
