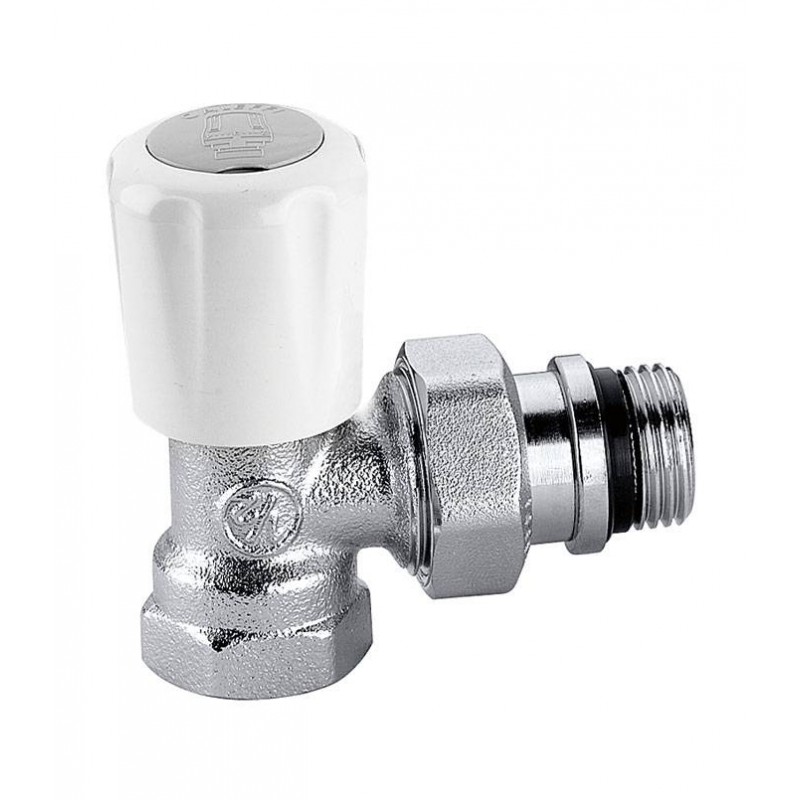

Caleffi 401 thermostatic angle valve for radiators F 1/2 401402
CAL 401402
8016615052909
Caleffi 401 Series Thermostatic Angle Valve for Radiators prepared for thermostatic, electrothermal, and electronic controls, designed for precise regulation of flow in radiators, providing thermal comfort and energy savings, ideal for residential and commercial heating systems, with the following features:
-
Radiator connection: female 1/2 inch square
-
Pipe connection: 23 p. 1.5 straight
-
Maximum operating pressure: 10 bar
-
Materials: Chrome-plated brass body, stainless steel control rod
-
Flow rate Kv: 2.70 m³/h
-
Fluid compatibility: Water and glycol solutions (max 30%)
With thermostatic control, the device automatically adjusts the fluid flow according to the ambient temperature, ensuring efficient and reliable operation.
€12.93
Items Available: 70
: 2
Frequently bought together
Caleffi 401 thermostatic angle valve for radiators F 1/2
The thermostatic valve control device is a proportional temperature regulator, consisting of a bellows containing a specific thermostatic liquid. As the temperature increases, the liquid increases in volume and causes the bellows to expand. As the temperature decreases, the reverse process occurs: the bellows contracts due to the thrust of the counter spring. The axial movements of the sensing element are transmitted to the valve actuator via the connecting plate, thus regulating the flow of fluid in the heating body.
Robust and versatile construction
The valve is made of chrome-plated brass, with a stainless steel actuator stem and double EPDM O-ring seal, ensuring durability and corrosion resistance. The nozzle with rubber seal eliminates the need for sealing tapes, simplifying installation.
Installation and recommended use
-
Horizontal installation, respecting the direction of flow indicated on the valve
-
Compatible with iron piping
-
Do not install in niches or behind curtains to avoid alterations in thermal readings
-
Easy maintenance, with the possibility of replacing the screw without interrupting the operation of the system

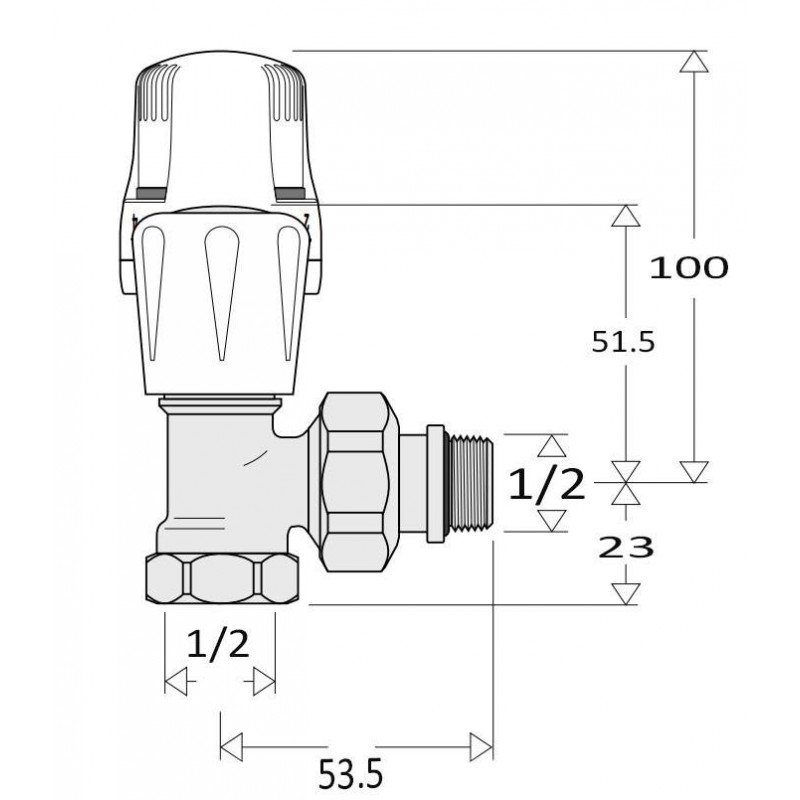

Detailed technical characteristics:
-
Maximum differential pressure: 1 bar (with control mounted)
-
Fluid temperature range: 5-100 degrees
-
Body: chrome-plated brass
-
Control rod: Stainless steel
-
Hydraulic seals: EPDM
-
Knob and cap: ABS
-
Fluid compatibility: Water, glycol solutions up to 30 percent
-
Flow rate (Kv): 2.70 m³/h
-
Finish: Chrome plated
There are no reviews
Data sheet
- Type: Thermostatic Radiator Valves
- Connection: F
- Connections: 1/2 inches
