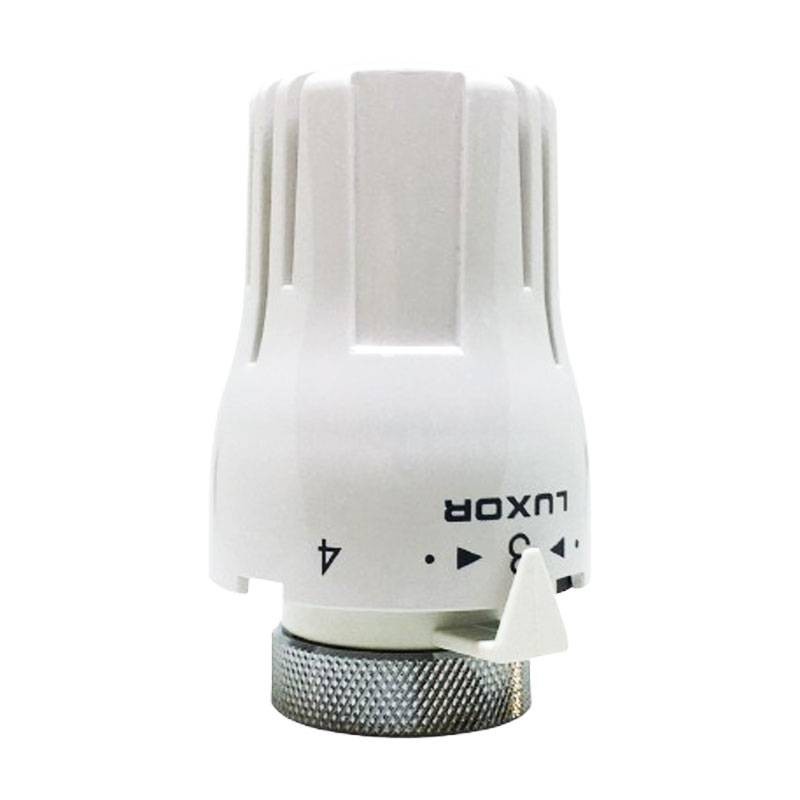

Luxor Thermostatic Radiator Valve TT 3000 Series 50 connection M30x1.5 White/Chrome 69100000CB
LUX 69100000CB
8023601191689
Luxor Thermostatic Radiator Valve TT 3000 Series 50, with the following features:
-
Connection: M30 x 1.5
-
Max working pressure: 10 bar
-
Ferrule material: Brass
-
System compatibility: Water in accordance with UNI 8065:1989
-
Special functions: Lock/limit regulation, anti-theft clamp
€9.03
Items Available: 11
: 3
Thermostatic Radiator Valve TT 3000 energy saving and precise control
Thermostatic Radiator Valve TT 3000 is designed to provide automatic room temperature control, offering autonomy and comfort in each individual room. Equipped with a built-in liquid sensor, it detects temperature changes and acts proportionally on the opening/closing of the valve to regulate the flow of the heat transfer fluid.
With the ability to lock or limit the control range, it is perfect for public environments or where fixed temperature control is needed.
Simple and universal installation
The standard M30x1.5 connection makes it compatible with most thermostat valves, and installation is facilitated by the CW614N brass ferrule.
Important note: Do not install the head in areas subject to direct heat sources or barriers (such as curtains, shelves, alcoves). In such cases, we recommend using the remote sensor version (TT3002).
Regulatory-compliant energy saving
Thanks to precise and responsive regulation, the TT 3000 contributes to the energy savings required by European directives, reducing consumption by up to 20 percent compared to traditional, unregulated systems.
Technical Characteristics Luxor Thermostatic Radiator Valve
| Connection | M30 x 1.5 |
| Adjustment range | 6 °C - 30 °C |
| Saving position ("3") | ≈ 20 °C |
| Max operating pressure | 10 bar |
| Max differential pressure | 1 bar |
| Max operating temperature | 120 °C |
| Sensor | High-expansibility liquid |
| Hysteresis | < 0,4 K |
| Pressure influence (D) | 0,5 K |
| Response time (Z) | 22 min |
| Water temperature effect (W) | 0,25 K |
| Storage temperature | -20 °C TO +50 °C |
| Inalterability range | -15 °C ÷ +60 °C |
| Head material | White ABS RAL 9016 / chrome plated |
| Ferrule material | Brass CW 614N (UNI EN 12164:2016) |
| Equipment compatibility | Water in accordance with UNI 8065:1989 |
| Special functions | Locking/limiting adjustment, anti-theft clamp |
There are no reviews
Data sheet
- Type: Thermostatic Radiator Valves
