Luxor angle thermostat kit G 3/4 connection chrome-plated 20742703

Luxor
Luxor
LUX 20742703 8023601100292

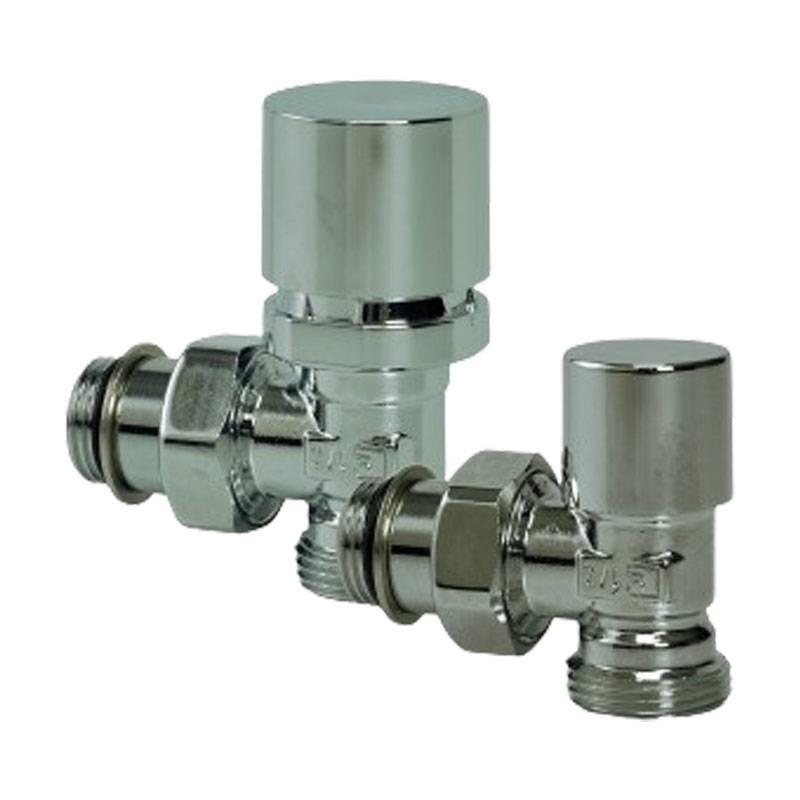

Luxor angle thermostat kit for radiator fittings, chrome finish, with the following features:

  • System connection: G 3/4 inch Eurocone

  • Radiator connection: DN 15 (1/2 inch)

  • Body material: brass

  • Maximum pressure: 10 bar

  • Pre-setting: Manual with positions 1 to 6

  • Kit composition: Thermostatic valve RS 2509/A - Lockshield DS 89/A

Do you have questions about this product or did you not find what you were looking for? Ask us!
Luxor angle thermostat kit G 3/4 connection chrome-plated 20742703
€20.98
€20.98

€20.98
Tax included
Calculate shipping cost
Items Available: 13
Further availability of the manufacturer
€20.98

Buy it within and receive it from Friday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Ideal kit for radiator connection with thermostatic control

The Luxor thermostatic kit is the complete solution for the team connection of bathroom radiators and fixtures. Designed for energy efficiency, precise temperature control and coordinated aesthetics, it consists of thermostatic valve and lockshield with chrome finish.

Eurocone connection compatibility with various materials

The kit is equipped with standard G 3/4-inch Eurocone connection, making it compatible with copper, plastic, multilayer and iron pipes through special fittings:

  • Iron pipe: G 1/2 inch

  • Copper pipe: G 3/4 EK TR 91/AC

  • Plastic pipe: G 3/4 EK TP 98/C

  • Multilayer pipe: G 3/4 EK TP 99/C

Valve with pre-setting and easy maintenance

Series 30 valves are equipped with a shaped acetal-ring screw for flow rate presetting, which can be easily adjusted by aligning the notch on the stainless rod. In addition, seal lo-rings can be replaced without draining the system.

Flexible installation even in reverse flow

The thermostatic valve can be installed on both the flow and return lines of the thermo-furniture, even in reverse flow, up to a maximum differential pressure of 0.6 bar. A feature that simplifies system design and installation.

Technical Characteristics Luxor Thermostatic Kit

Kit composition. Thermostatic valve RS 2509/A + lockshield DS 89/A
System connection G 3/4 inch Eurocone
Radiator connection DN 15 (1/2 inch)
Body material Brass
Control rod Stainless steel
Finish Chrome plated
Knob Chromed ABS
Maximum pressure 10 bar
Maximum temperature 120 degrees
Max differential pressure 1 bar (0.6 bar in reverse flow)
Pre-setting Manual, positions 1 to 6

There are no reviews

Data sheet

Type:
Thermostatic Radiator Valves
Connections:
1/2 inches
3/4 inches
