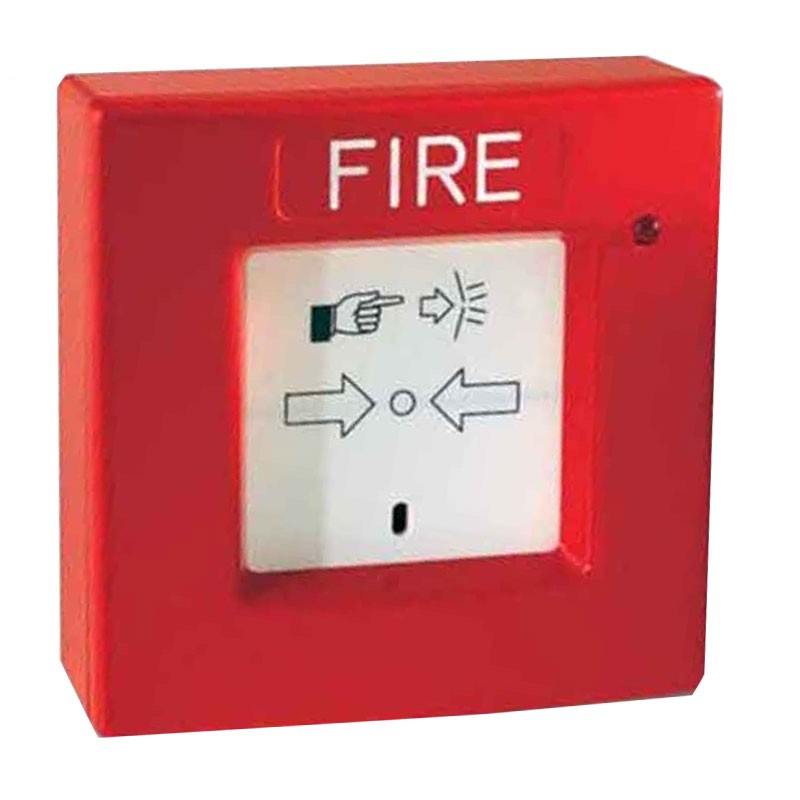

Urmet manual glass-break fire button 1043/506
UTD 1043/506
8021156038947
Urmet manual fire-fighting glass-break button, complete with self-learning circuit and short-circuit isolator. Dimensions (W x H x D) 110 x 100 x 40 mm. Complies with standards: EN54 part 11.
€33.78
Items Available: 146
: 40
Frequently bought together
This item is used for manual signaling of an alarm. For this model, pressure on the middle part of the glass is sufficient for it to break and actuate an internal switch. A tool is supplied with the switches to perform the TEST, open the cover, and replace the slide. The lighting of a red LED indicates the alarm status.
Specifications:
- Operating voltage 20 VDC (-15%, +10%) modulated
- Average absorption (Normal conditions) 250 mA@ 20Vdc
- Average absorption (Alarm conditions) 2 mA @ 20Vdc
- Operating temperature -10/+55°C ± 2°C (14 ¸ 131°F)
- Relative humidity 93% ± 2% noncondensing
- Storage temperature -30/+70°C (-22 ¸ 158°F)
- Alarm condition: type A
- Environmental class: indoor
- Weight: 140 grams
- Container material ABS V0
- Complies with standards EN54-11: 2001/A1: 2005 - EN54-17: 2005/AC :2007
Bi-colour LED:
- Steady red: Alarm status
- Red slow flashing (2s): Alarm status with SLC operating voltage <17V
- Slow flashing green (2s): Normal status
- Green flashing fast: duplicate address
Tutto ok. Nulla da segnalare, direi seri.
OTTIMOOTTIMO CONTENTO DELLA CERELITA E DELLA CONSEGNA DEI PRODOTTI
Data sheet
- Type: Buttons
