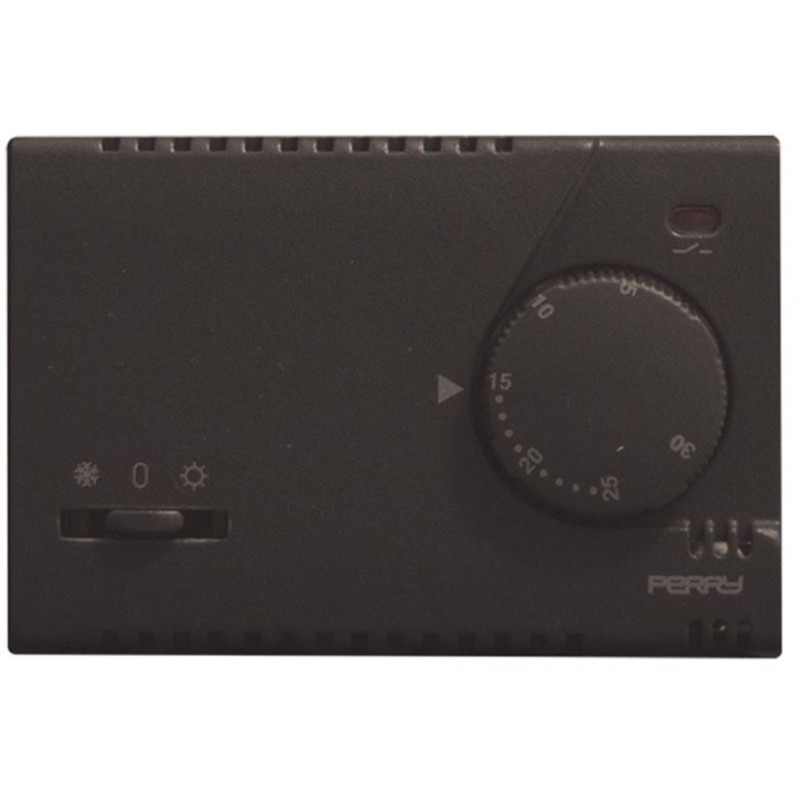

Perry wall thermostat black 230V 1TITE303/MC
PER 1TITE303/MC
Electronic thermostat Perry Module with EST/OFF/INV control, offers precise regulation and advanced functionality, ideal for residential and commercial applications, with the following features:
-
Standard power supply: 230V - 50-60Hz
-
Versatile output: potential-free deviation contact, 8(2)A/250V capacity
-
Precise adjustment: graduated scale from 5 to 30 degrees with mechanical set-point lock
-
Mode control: EST/OFF/INV switch (Summer/Off/Winter)
-
Remote input: night reduction function of -4°C on set-point value
-
LED indication: shows the status of the active relay
-
Fixed differential: 0.7°C for optimal ON/OFF operation
€47.95
Items Available: 21
: 3
Perry wall thermostat black 230V power supply
Adjustable efficiency and comfort
The Modulo series thermostat is designed to provide precise temperature control in air-conditioned rooms. The night setback function optimizes energy consumption by automatically lowering the set temperature by 4°C.
Continuous adjustment with a graduated scale and mechanical set-point lock ensure reliable settings, preventing accidental changes.
Compact design and ease of use
Compact and easy to install. Relay status LED provides a clear visual indication of operation, making it ideal for thermal control systems in residential or office environments.
Specifications.
- Power supply: 230V - 50-60Hz
- Output: potential-free deflection contact, 8(2)A/250V
- Adjustment range: 5 to 30 degrees
- Differential: 0.7 degrees

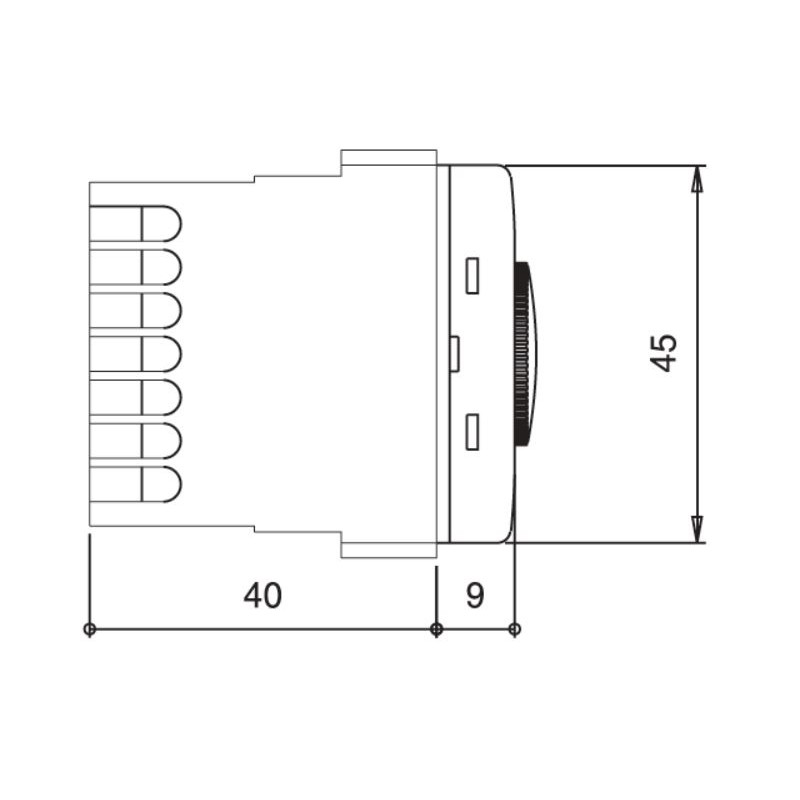

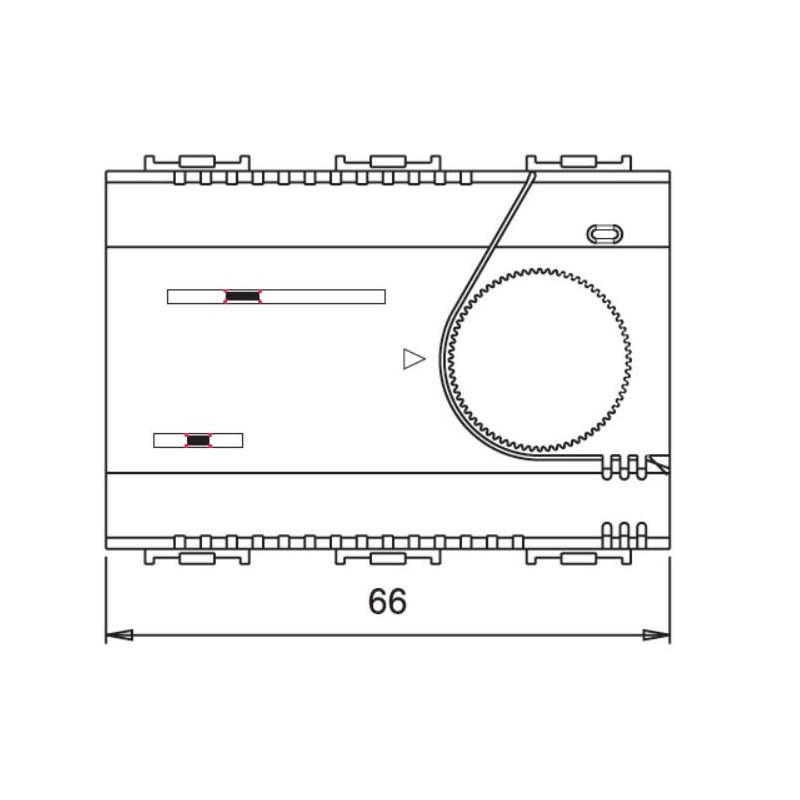

- Dimensions: 66x49x45mm
- Controls: EST/OFF/INV
- Reduction function: remote input for night reduction of -4°C
- LED indicator: relay status
Articolo conforme alla descrizione, arrivato in confezione originale e ben protetto all'interno del pacco spedito
Data sheet
- Type: Thermostats
- Model: Without display
- Installation: Wall-mounted
- WIFI: No
