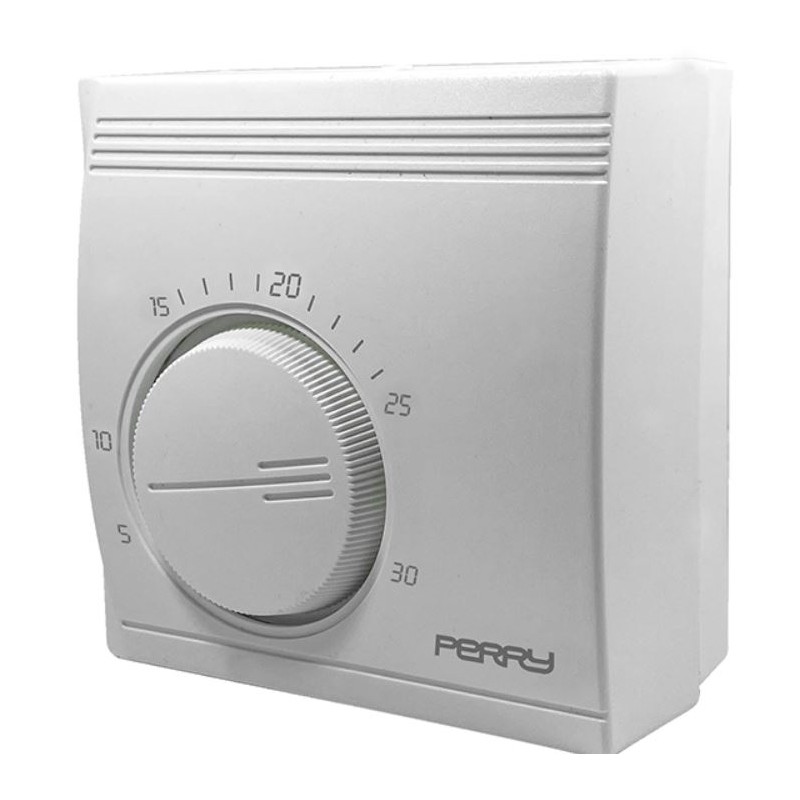

Perry Gas Expansion Thermostat 1TGTEG130

Perry
Perry
PER 1TGTEG130 8019108040100

Perry "TEG" series Gas Expansion Thermostat, is a simple and effective solution for temperature control in residential and commercial environments. With reliable mechanical operation and streamlined design, it provides maximum comfort and ease of use:

  • Output: 1 potential-free diverter contact, 16(2.5)A/250V AC.

  • Temperature adjustment: Graduated scale with mechanical index

  • Adjustment range: 5°C to 30°C

  • Operation: ON/OFF with fixed differential (0.4K-0.8K)

  • Mechanical temperature lock: Prevents accidental changes to set-point

  • Mounting: Wall -mounted, with IP20 degree of protection

  • Compliance: EN 60730-1, EN 60730-2-9 standards, LVD 2014/35/EU directive

Do you have questions about this product or did you not find what you were looking for? Ask us!
Perry Gas Expansion Thermostat 1TGTEG130
€13.60
€13.60

€13.60
Tax included
Calculate shipping cost
Items Available: 26
Further availability of the manufacturer
€13.60

Buy it within and receive it from Tuesday, 3 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Perry Gas Expansion Thermostat 1TGTEG130

The "TEG" series thermostat is designed to offer precise and stable temperature control. Thanks to the mechanical set-point with graduated scale, it is easy to set and use. Continuous adjustment over a range of 5°C-30°C allows it to be adapted to any need in both domestic and business environments.

Robust and compliant with regulations

The device complies with major safety and efficiency standards, including:

  • EN 60730-1 and subsequent updates
  • EN 60730-2-9
  • LVD Directive 2014/35/EU

Belonging to ErP class I (1%) according to EU 811/20, the thermostat ensures energy efficiency and sustainability.

Simple and versatile installation

The thermostat can be easily mounted on the wall and has an IP20 degree of protection, making it suitable for dry indoor environments. With compact dimensions of 80 x 43.5 x 80 mm, it fits perfectly into any space without being bulky.

Detailed technical specifications

  • Output: 1 potential-free deflection contact, 16(2.5)A/250V a.c.
  • Temperature adjustment range: 5°C to 30°C.
  • Differential: 0.4K-0.8K.
  • Thermal gradient: 1K/15 min.
  • Maximum service temperature: 50°C.
  • Storage temperature: 0°C to 50°C.
  • Degree of protection: IP20.
  • Insulation class: Class I.
  • Dimensions: 80 x 43.5 x 80 mm.
  • Mounting: Wall-mounted.
  • Rated impulse voltage: 4kV.
  • Regulatory compliance: EN 60730-1, EN 60730-2-9, LVD 2014/35/EU.

Ottimo prodotto pervenuto entro pochissimo tempo

Read all reviews

Data sheet

Type:
Thermostats
Model:
Without display
Installation:
Wall-mounted
WIFI:
No
