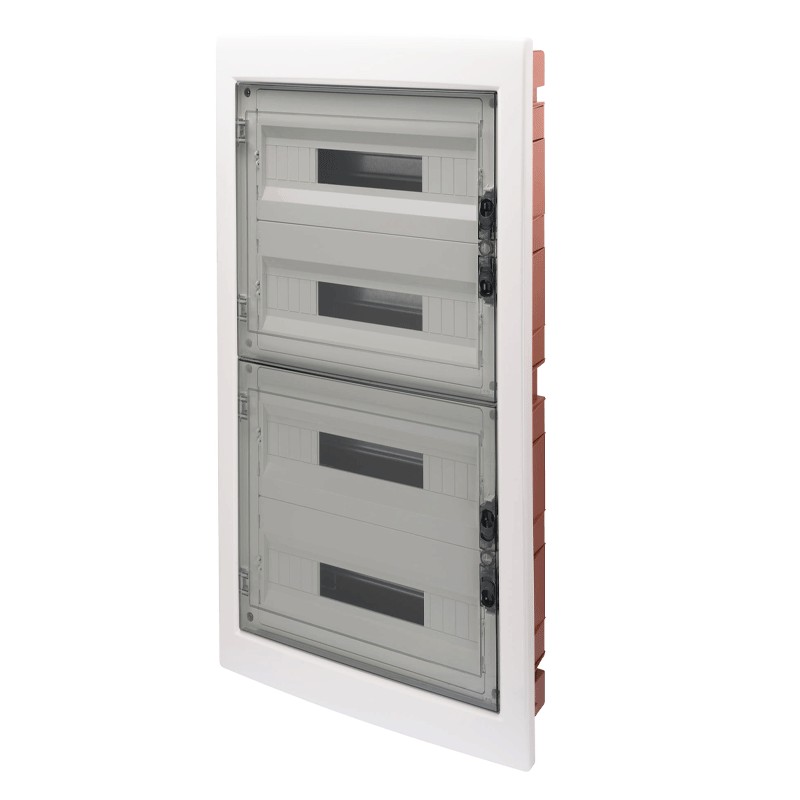

Flush-mounted switchboard Gewiss 18x4 modules transparent smoke IP40 GW40611
GEW GW40611
8011564062559
Gewiss flush-mounted switchboard, with the following features:
- 72 modules (on four rows)
- Degree of protection IP40
Article complete with recessed box
€168.58
Items Available: 40
: 13
Features:
- Gewiss Series
- Insulation voltage 750V
- Rated current 125A
- Rated voltage 400V
- Power dissipation 95W
- Glow wire resistance 650 °C
- 72 modules (on four rows)
- Degree of protection IP40
- Insulation class II (according to IEC 61140 standard)
- Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
- Thermopressure with ball 70 °C
- Switchboard colour white RAL 9016
- Colour of door transparent smoke
- Operating temperature -15 +60 °C
- Type Material Halogen free according to EN 60754-2
- Impact resistance IK08
- Installation for masonry
- With windowed panels and removable frame
- External dimensions BxHxD 465x880x95 mm
- Article complete with recessed box
Mi sono trovato benissimo. I prezzi sono i più bassi del web. Spedizione celere. Tutto OK.
Data sheet
- Type: Front panels
- Modules: 18
- Degree of protection: IP40
- Model: With door
Recessed
