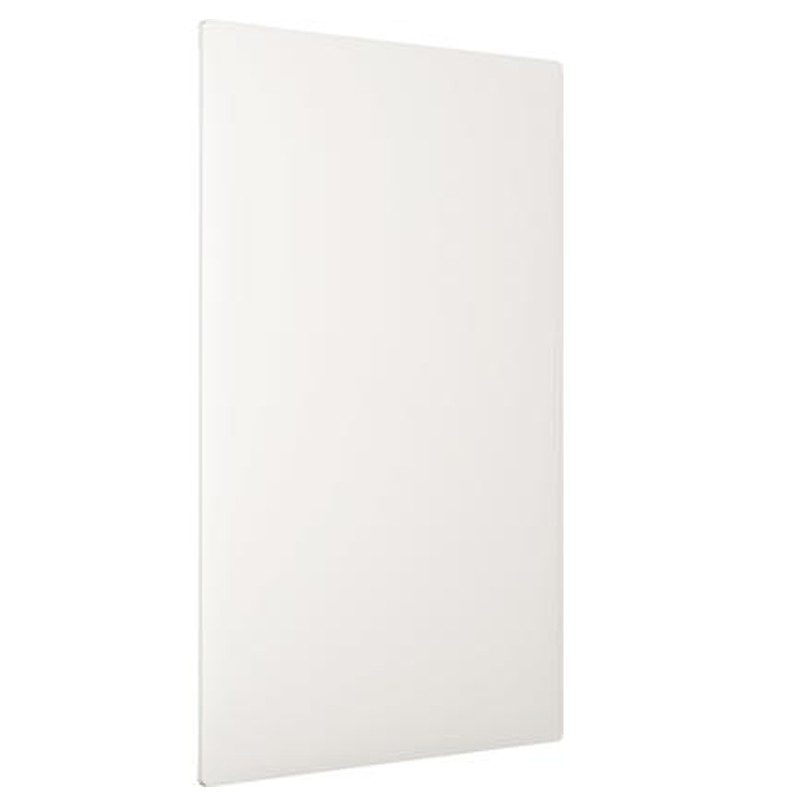

Flush-mounted switchboard Bticino 72 modules IP40 white F315PB72
BTI F315PB72
8005543534106
LINEA SPACE Bticino flush-mounting switchboard, with the following characteristics:
- 72 DIN modules (on four rows)
- IP40 degree of protection
To be completed with boxes F315SC72 or F315S72
€191.42
Items Available: 43
: 16
Frequently bought together
Ideal for residential and small tertiary installations. Recessed for brick, masonry or plasterboard walls.
Features:
- Series Bticino LINE SPACE
- Maximum allowable current 125A
- Dissipated power 78W
- Rated operating voltage: 400 VCA - 50/60 Hz
- Rated insulation voltage: 400 VCA - 50/60 Hz
- 72 DIN modules (on four rows)
- Degree of protection IP40
- Material thermoplastic resin
- With white RAL 9003 door
- Double insulation class II
- Short-circuit strength 10 kA
- Storage temperature -20 °C to +70 °C
- Operating temperature -10 °C to +60 °C
- Installation temperature -25 °C to +60 °C
- Height 800 mm
- Width 493 mm
- Depth 20 mm
- To be completed with boxes F315SC72 or F315S72
There are no reviews
Data sheet
- Type: Front panels
- Modules: 72
- Degree of protection: IP40
- Model: With door
Recessed
