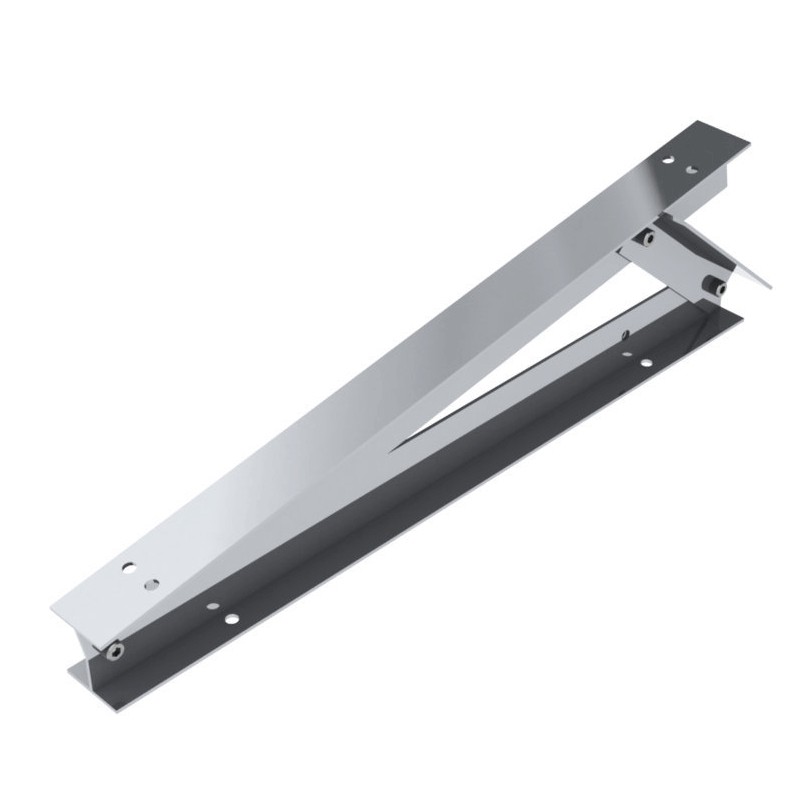

Small Triangle for Photovoltaic Orbis STP-1015 10-15 Degrees OB620292
ORB OB620292
8426709925345
Triangle Small for photovoltaic Orbis STP-1015 10-15 degree aluminum with module tilt inserts, adjustments: 10°-12°-15, module arrangement: horizontal.
Pack of 2 pieces.
€25.93
Items Available: 149
: 72
Small Pre-mounted Triangles with variable inclination, 10°-15°, designed to allow photovoltaic modules to be fixed by profiles with a wide installation flexibility. The new aT profile geometry makes high mechanical performance possible.
Features:
- Material: aluminum alloy EN AW-6063 T66
- Hypotenuse length: 600 mm
- Hypotenuse thickness: 3 mm
- Base Thickness: 3 mm
- Vertical Cathetus Thickness: 3 mm
- Allowed inclinations: 10°, 12°, 15°
- Weight: 1075 grams
- Panel rotation: Horizontal
- Range Height above ground support element: 10° > 104 mm ; 15° > 155 mm
Dimensions:
- Fixing plate width 50 mm
- Fixing plate length 600 mm
- mounting plate height 50 mm
- hook width 50 mm
- hook thickness 3 mm
There are no reviews
Data sheet
- Type: Fixing Accessories
