Fischer connector for SolarFish H33 aluminum profiles 00572446
FIS 00572446
8001132119549
Fischer aluminum connector for SolarFish H33 profiles with U-section and center guide for quick and accurate positioning. Compatible with RHS 8 screws and M8 nuts, with the following features:
-
U-section for easy profile positioning
-
Centerline marking for perfect centering
-
Dovetail for stable engagement in the profile groove
-
Slots for quick installation with 4 hammerhead screws
-
Durable and lightweight aluminum material
-
Compatible with SolarFish H33 AL profiles
€7.27
Items Available: 177
: 33
Fischer connector simple connection between SolarFish profiles

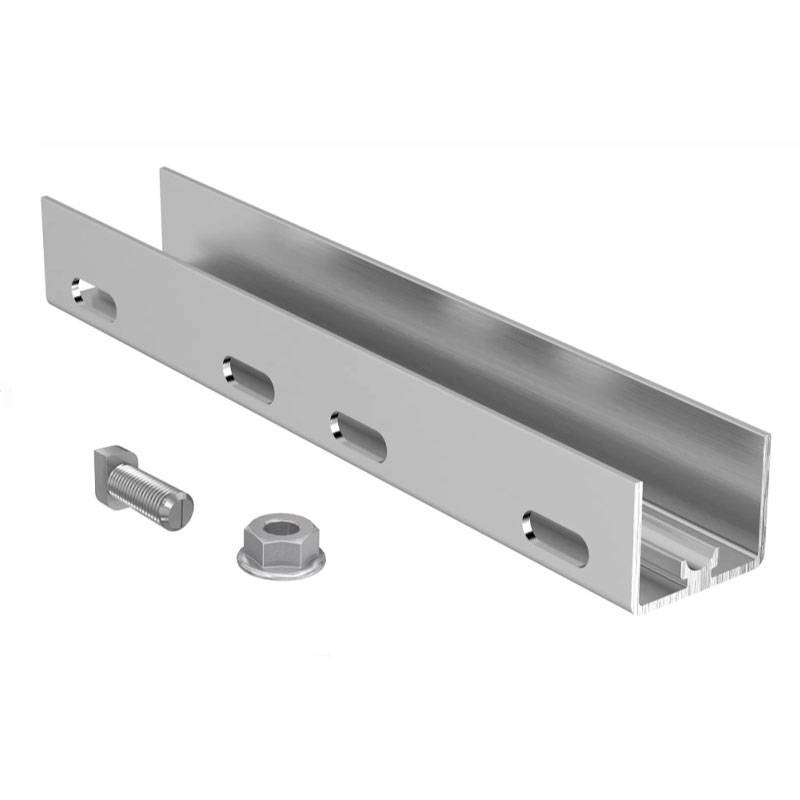

The SolarFish H33 AL connector is the perfect solution for joining two H33 series profiles safely and precisely. Made of lightweight yet strong aluminum, this connector features a U-shaped section that facilitates the alignment of the profiles, ensuring stability and mechanical strength.
Functional design with clever details
Centerline marking allows perfect centering during assembly, avoiding errors and optimizing installation time. In addition, the integrated dovetail on the underside facilitates engagement in the SolarFish profile groove, ensuring firm and durable anchoring.
Installation with RHS screws and M8 nuts
RHS 8 hammer-head screws and MU F M8 flanged hex nuts are used to fasten the connector, providing secure fastening compatible with most profiles in the Solar range.
Typical applications
-

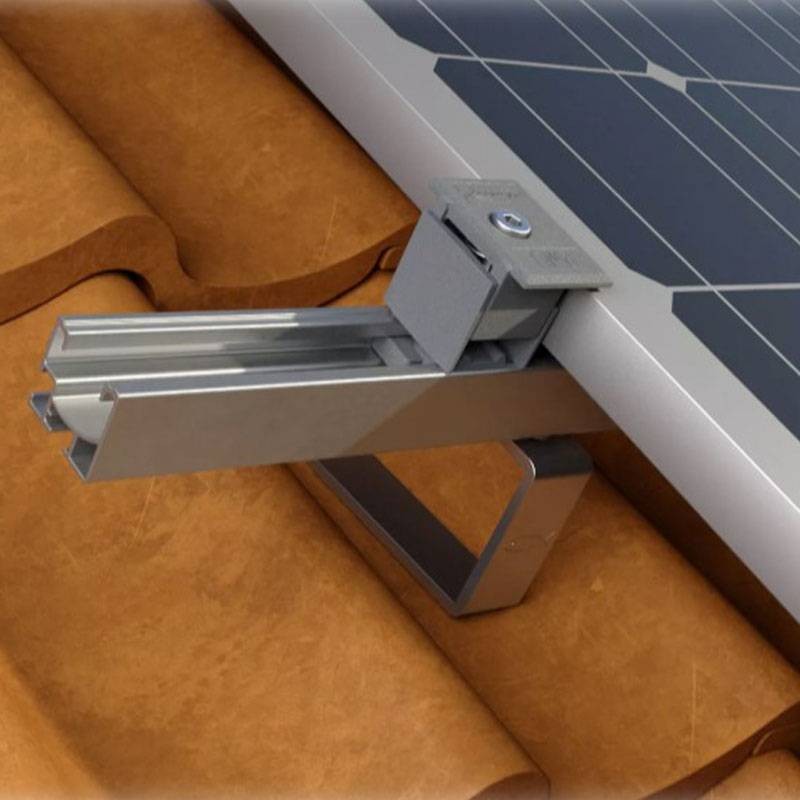

Photovoltaic systems on roofs or structures
-
Joining of H33 series aluminum profiles
-
Modular support systems for solar panels
Technical Specifications Connector for Photovoltaic Profiles
| Material | Aluminum |
|---|---|
| Shape | U-shaped section |
| Bottom Connector | Dovetail |
| Central marking | Yes - for profile alignment |
| Fastening type | RHS screws 8 + MU nuts F M8 (not included) |
| Mounting holes | 4 slots compatible with SolarFish profile slots |
| Compatibility | SolarFish Profiles H33 AL |
| Application | Connection between two profiles in photovoltaic systems |
There are no reviews
Data sheet
- Type: Fixing Accessories
