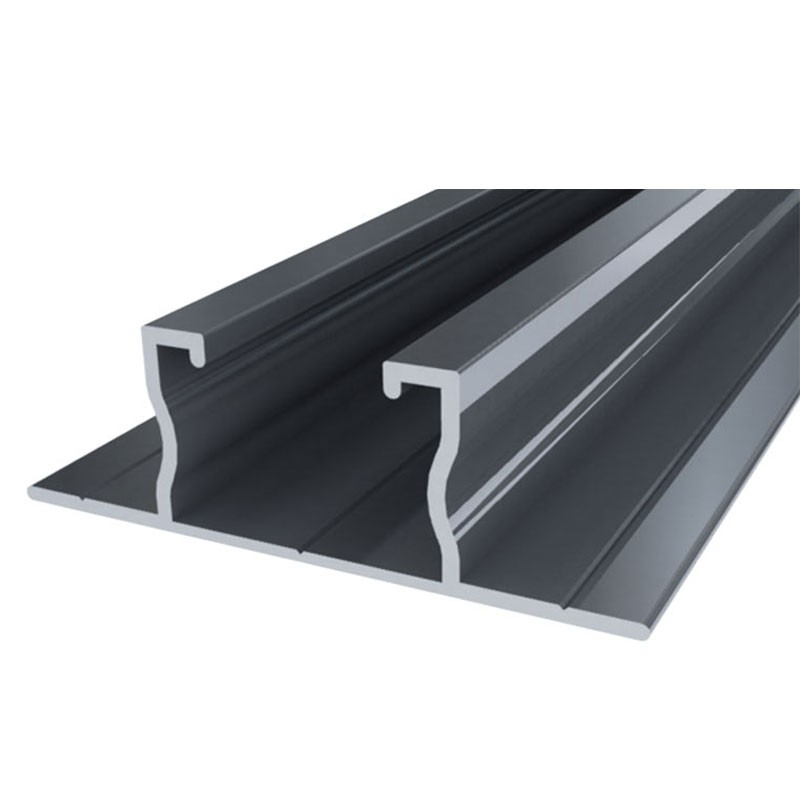

Orbis Profile in aluminium EASY WING SMALL for photovoltaic structures 42cm OB620044
ORB OB620044
8426709926335
Profile in aluminium Orbis EASY WING SMALL (42 cm) is designed for fastening photovoltaic panels on corrugated roofs and canopies with insulating panels. It offers easy and secure installation, with a two-wing base to improve anchoring:
-
Material: EN AW-6060 T6 aluminium alloy
-
Compatibility: Compatible with the SEL05 lifting bracket (code OB620393)
-
Tensile strength: 190 N/mm²
-
Profile weight: 729 g/m
-
Profile section: 269.89 mm²
-

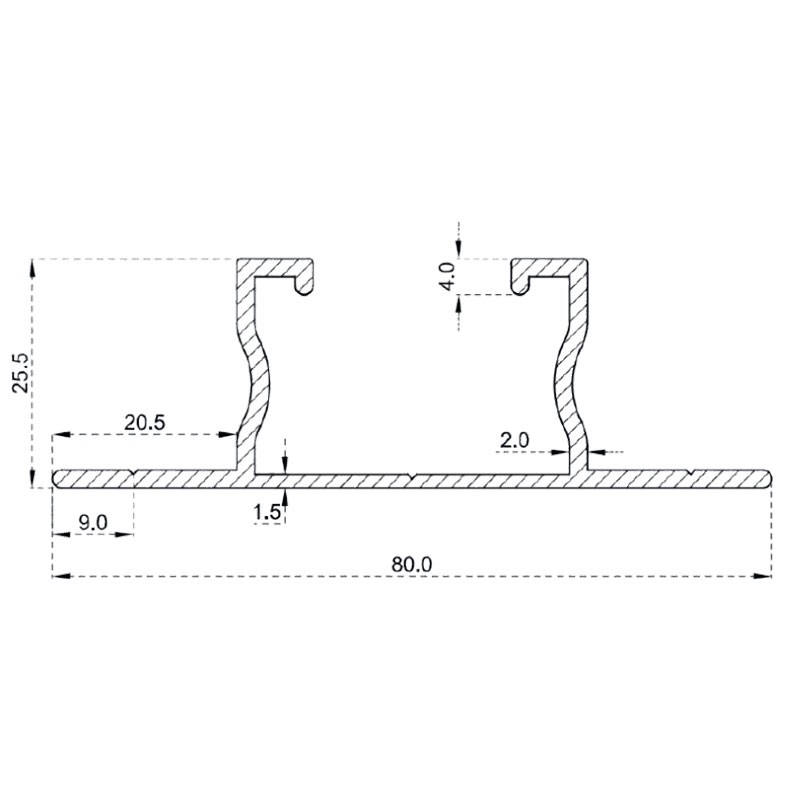

Design: C-profile with notched sides for robust fastening
-
Tensile strength: 190 N/mm²
-
Yield strength: 150 N/mm²
-
Yield strength: 150 N/mm²
€5.04
Items Available: 205
: 162
Frequently bought together
Profile in aluminium Orbis EASY WING SMALL for photovoltaic structures: solid and versatile support
The aluminium profile Orbis EASY WING SMALL (code OB620044) is a fundamental component for mounting photovoltaic panels on building canopies with corrugated roofing and insulating panels. With a length of 42 cm, this profile is designed to ensure a solid anchoring base that enhances the stability of the panels, making installation quick and secure.
Practical and functional design
The EASY WING SMALL profile features a two-wing base, which facilitates attachment to the canopy and improves anchoring. The C-profile design with notched sides allows for easier installation and greater hold, optimizing weight distribution and reducing the risk of damage to the structure.
High-quality material and mechanical performance
Made of EN AW-6060 T6 aluminium alloy, the EASY WING SMALL profile is extremely strong and durable, with a tensile strength of 190 N/mm² and a yield strength of 150 N/mm². These characteristics make it a reliable support even in outdoor environments and challenging weather conditions. The weight of the profile per metre is 729 g/m, allowing for balanced installation without compromising structural strength.
Compatibility with other accessories
To ensure a stable and secure photovoltaic structure, the EASY WING SMALL profile is compatible with the SEL05 lifting bracket (code OB620393), which allows for adjustment of the inclination and height of the panels, adapting to different roof configurations. The combination of these components offers a complete and optimized solution for the installation of photovoltaic systems.
| TECHNICAL CHARACTERISTICS | |
|---|---|
| Material | EN AW-6060 T6 aluminium alloy |
| Tensile strength | Rm 190 N/mm² |
| Yield strength | Rp0,2 150 N/mm² |
| Profile weight per metre | 729 g/m |
| Profile section | 269.89 mm² |
There are no reviews
Data sheet
- Type: Fixing Accessories
