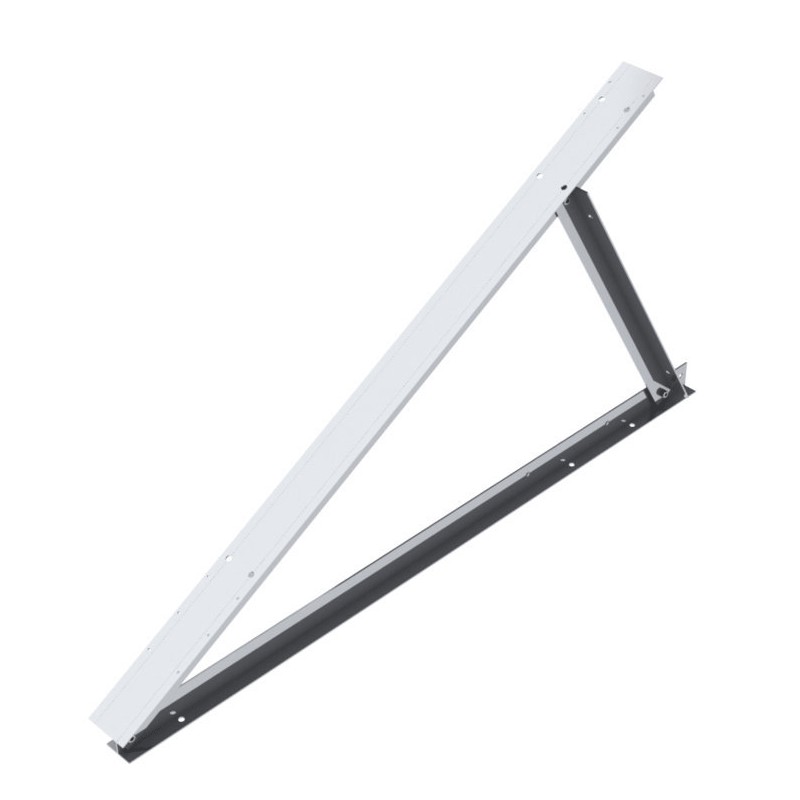

Large Triangle for Photovoltaic Orbis STG-2835 28-35 Degrees OB620300
ORB OB620300
8426709922054
Large Triangle for Orbis STG-2835 aluminum photovoltaic, for module tilt, adjustments: 28°-30°-33°-35°, module arrangement: vertical.
€39.20
Items Available: 49
: 3
LARGE PRE-MOUNTED TRIANGLES with variable inclination, 28°-35°, designed to allow photovoltaic modules to be fixed by means of profiles with wide installation flexibility.
Thanks to T-profiling, high resistance to different wind and snow conditions is guaranteed.
Features:
- Material: aluminum alloy EN AW-6063 T66
- Hypotenuse length: 1200 mm
- Hypotenuse thickness: 2 6 mm
- Base Thickness: 3 mm
- Vertical Cathetus Thickness: 3 mm
- Allowed inclinations: 28° , 30° , 33° , 35°
- Weight: 2650 g
- Panel rotation: Vertical or Horizontal
- Range Height above ground support element (*): 28° > 563 mm; 35° > 688 mm
Dimensions:
- Fixing plate width 50 mm
- Mounting plate length 1200 mm
- Mounting plate height 50 mm
- Width of hook 75 mm
- Hook thickness 2 mm
Data sheet
- Type: Fixing Accessories
