Fischer aluminum hook for flat roof tiles RH 30 H AL 00571749
FIS 00571749
8001132116951
Aluminum coated Fischer hook for pitched roofs and RH 30 H AL tiles with 2 adjustments, with the following features:
-
Vertical and horizontal adjustment: precise fit
-
High load capacity: reduces the number of hooks needed
-
Quick-connect joint: compatible with SolarLight and SolarFish profiles
-
Made of aluminum alloy: strength and light weight
-
Pre-assembled assembly: no additional accessories or hardware
€12.21
Items Available: 287
: 16

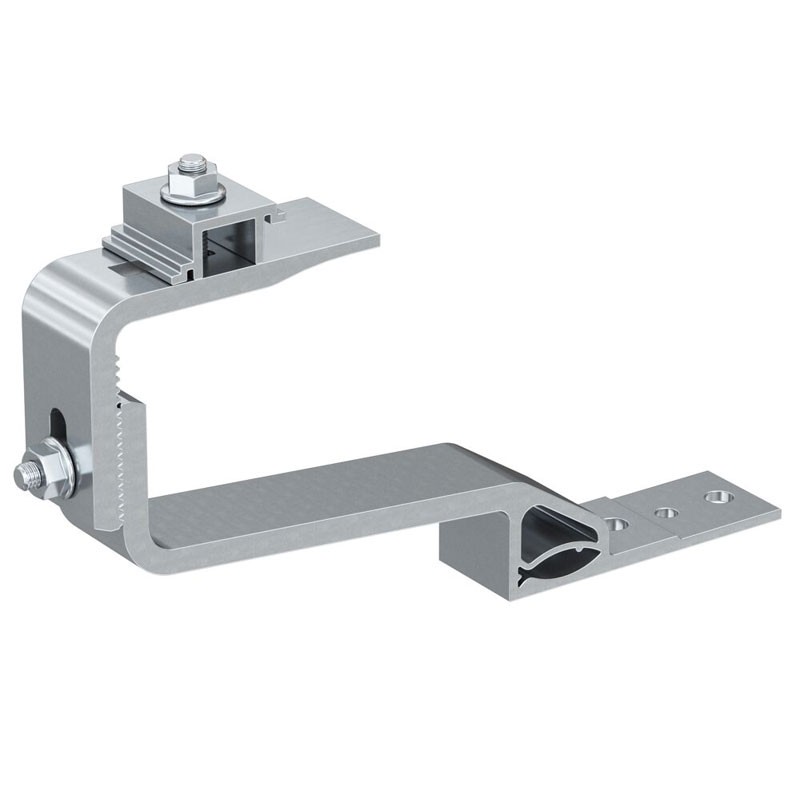

Fischer RH 30 H AL hook for pitched roofs with flat roof tiles

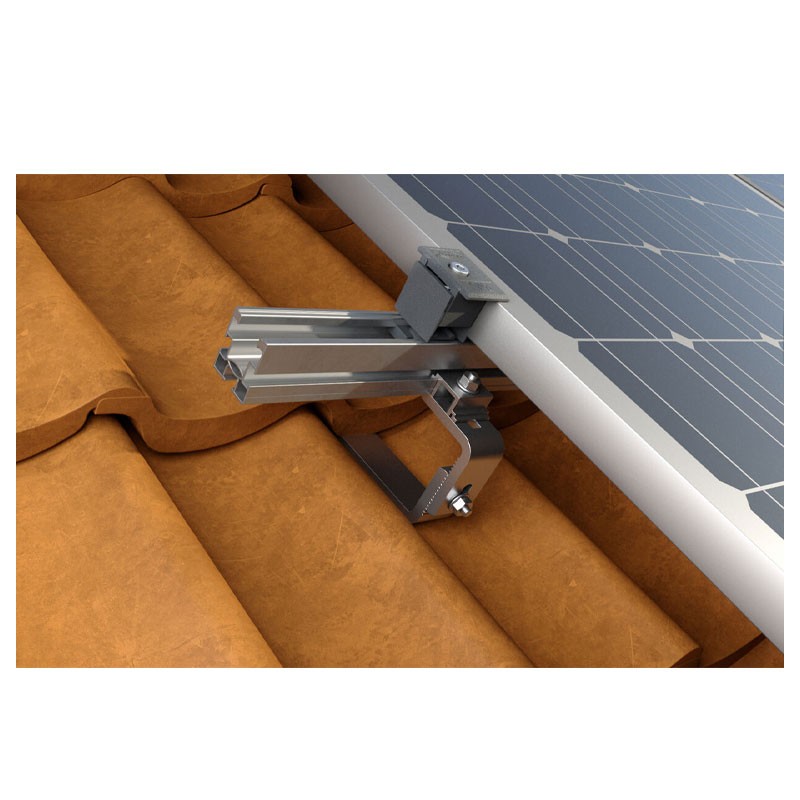

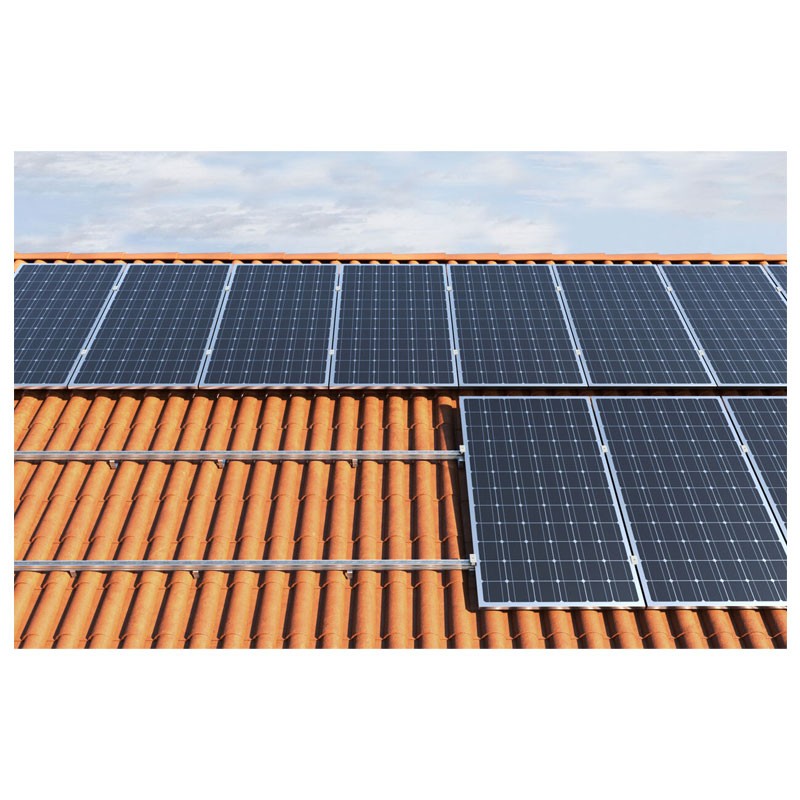

The RH 30 H AL hook is designed for PV installations on pitched roofs with flat tile cladding up to 30 mm thick. The aluminum alloy construction, conforming to EN 755-2:2016 standards, makes it highly durable and lightweight, ideal for durable installation. This pre-assembled hook is ready to use, without the need for additional accessories, ensuring fast and efficient installation.
Dual adjustment for precise alignment
The Fischer hook offers two basic adjustments: the intermediate vertical adjustment allows the profile to be positioned at the ideal distance from the top of the tile, while the adjustment at the top of the hook allows horizontal alignment of the profile, facilitating installation even on uneven surfaces. This multiple adjustment is particularly useful for adapting to different roof configurations and achieving secure and stable fastening.
High load capacity for fewer fastening points
Thanks to its high load capacity, the RH 30 H AL hook can withstand heavy snow and wind loads as required by regulations. The shape of the hook is designed not to touch the shingle even under maximum load conditions, preventing damage to the roofing. This robustness makes it possible to reduce the number of hooks needed, while maintaining high spacing between fixing points and simplifying the installation of the entire system.
Quick installation with compatible push-in joint
The quick-connect joint on the top of the hook allows it to be connected directly to SolarLight or SolarFish profiles with a simple 180° rotation, without the need for extra bolts or accessories. During installation, the hook is attached to the roof support structure with special anchors and adjusted in height according to the PV system layout. Installation requires a tightening torque of 10 Nm to ensure a secure fastening.

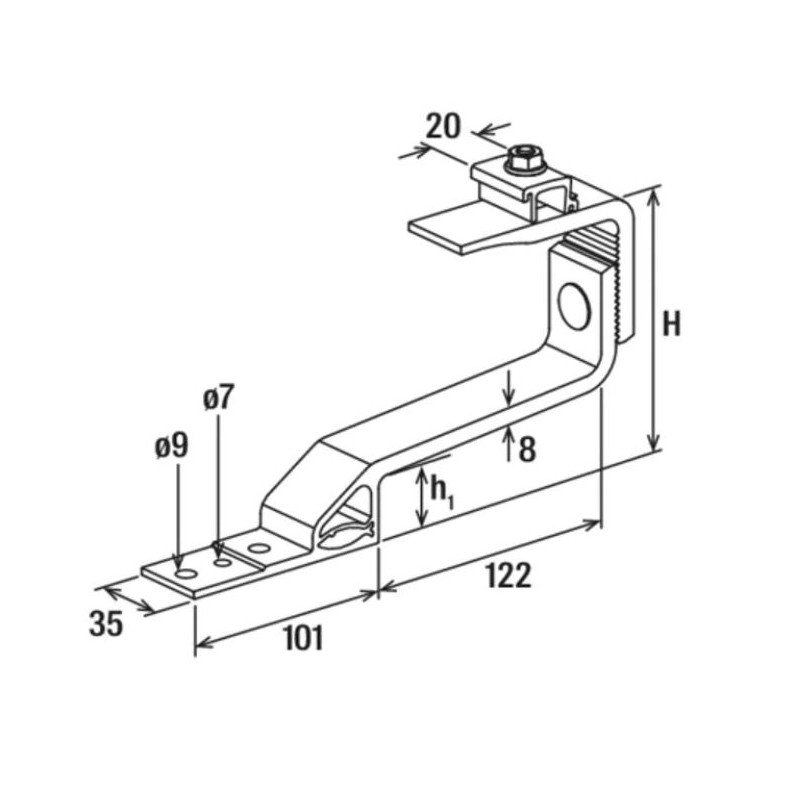

Detailed technical specifications
- Material: aluminum alloy AW 6060 T6 and AW 6082 T6 (EN 755-2:2016)
- Hardware: Stainless steel class A2-70 (EN ISO 3506-1/2:2010)
- Thickness: 8 mm
- Weight: 330 grams
- Overall height (H): 106 - 124 mm
- Tightening torque (Tinst): 20 Nm
- Tightening wrench: 13 mm
- Profile compatibility: SolarLight and SolarFish
- Mounting: Pre-assembled, push-in joint
There are no reviews
Data sheet
- Type: Fixing Accessories
