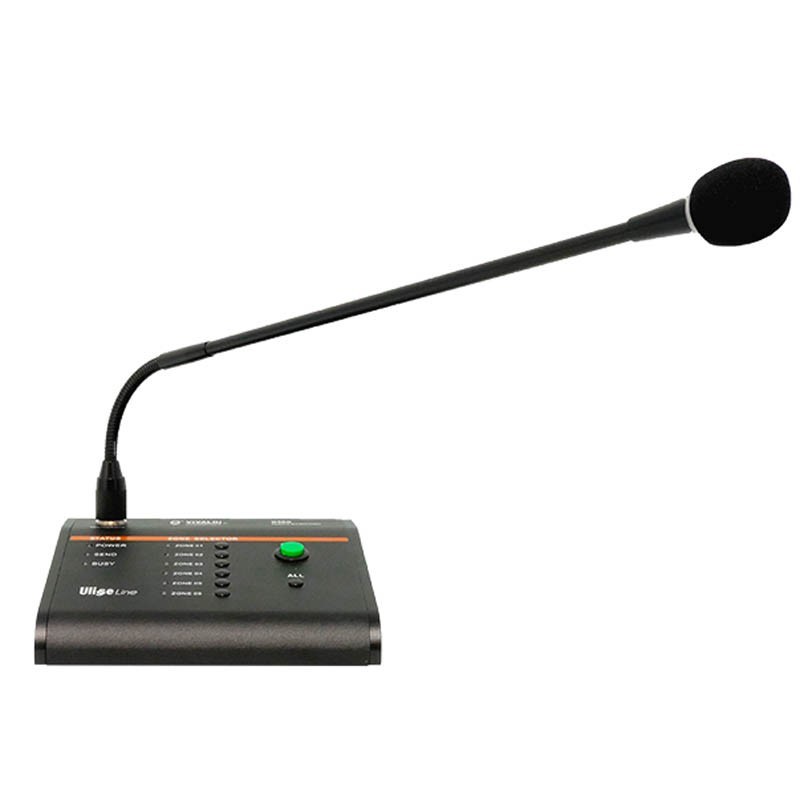

Vivaldi ULISSE BM6 multi-zone microphone stand
VIL BM6
8051272187182
Vivaldi ULISSE multi-zone microphone base provides 6-zone calling, with a maximum distance of 300 metres via CAT6 cable.
€288.74
Items Available: 1
Multi-zone, paging, remote, desktop, with buttons, for Vivaldi Ulisse MZ6120BT, Vivaldi Ulisse MZ6240BT, Vivaldi Ulisse MZ6350BT, Vivaldi Ulisse MZ6500BT amplifiers.
The base provides 6-zone calling, with a maximum distance of 300 meters via CAT6 cable. Each amplifier supports up to 6 microphone bases, connected in cascade (daisy chain). The 6 microphone bases can be preset with different priority levels using the dip switches on the rear panel of each base. The microphone stand is powered directly from the amplifier.
Features:

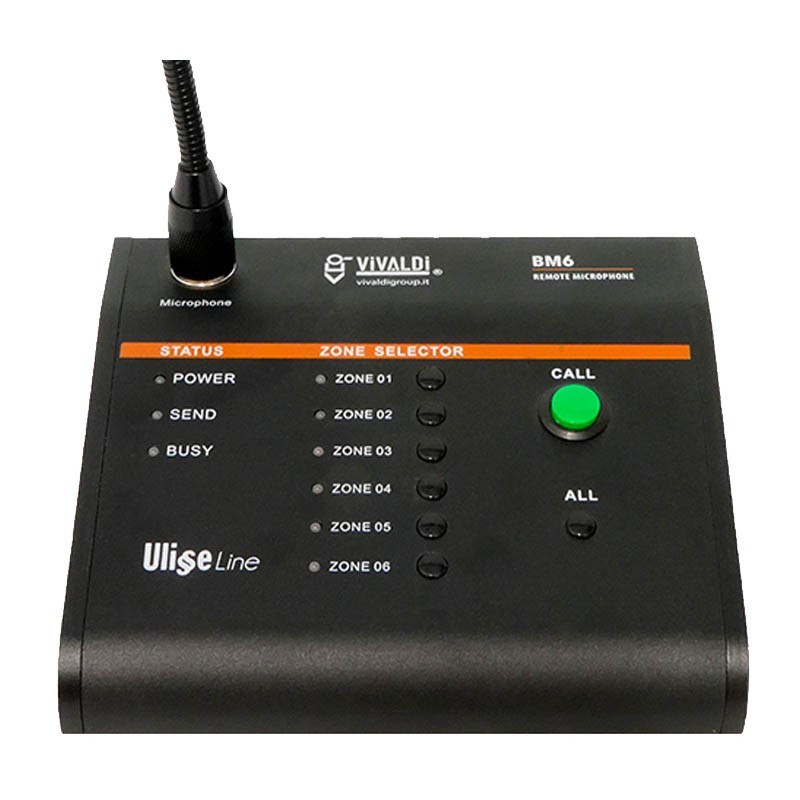

- 6 zone selection buttons (ZONE1, ZONE2, ZONE3, ZONE4, ZONE5, ZONE6)
- Gooseneck microphone connector
- Power supply indicator
- Communication indicator
- Busy indicator
- Speaker Zone Indicators 1-6
- Speaker Zone Selectors 1-6
- Call/Parking button
- All zones selection button (1-6 selectors)
- ON/OFF switch

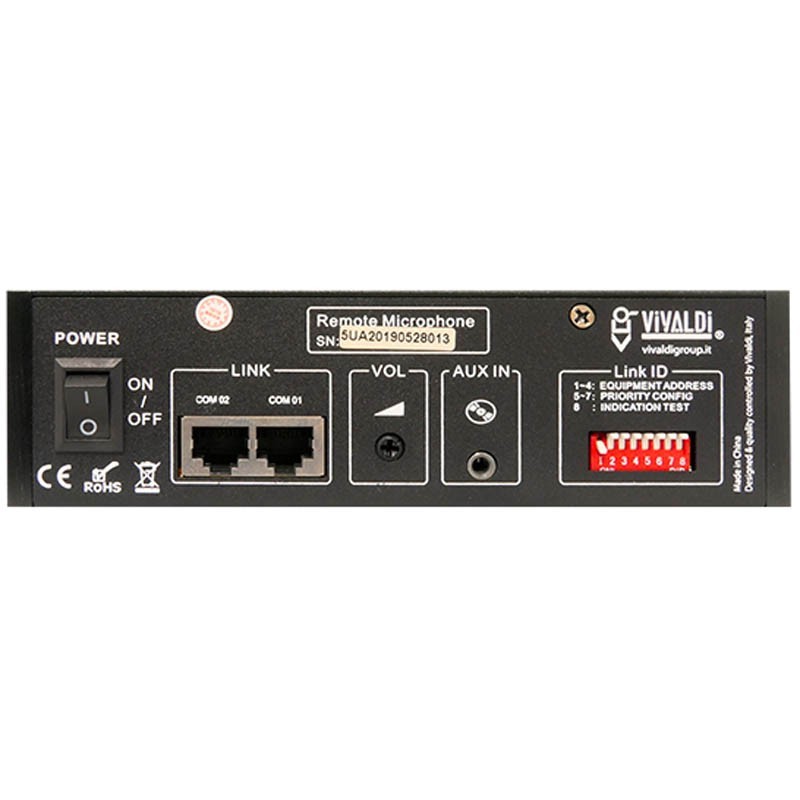

- RJ45 port to connect the next base in cascade
- RJ45 communication port with Vivaldi Ulisse MZ6120BT, Vivaldi Ulisse MZ6240BT, Vivaldi Ulisse MZ6350BT, Vivaldi Ulisse MZ6500BT amplifier
- Microphone gain control
- Local Aux Entrance
- Priority dip switches
- Maximum distance between the amplifier and the last connected base max 300 mt
- 41cm rod
- Power supply via link to the amplifier with CAT6 RJ45 connector cable
- Cascadable (up to 6 bases) for a maximum length of 300mt
- Weight 0,9 Kg.
There are no reviews
Data sheet
- Type: Microphone stands
