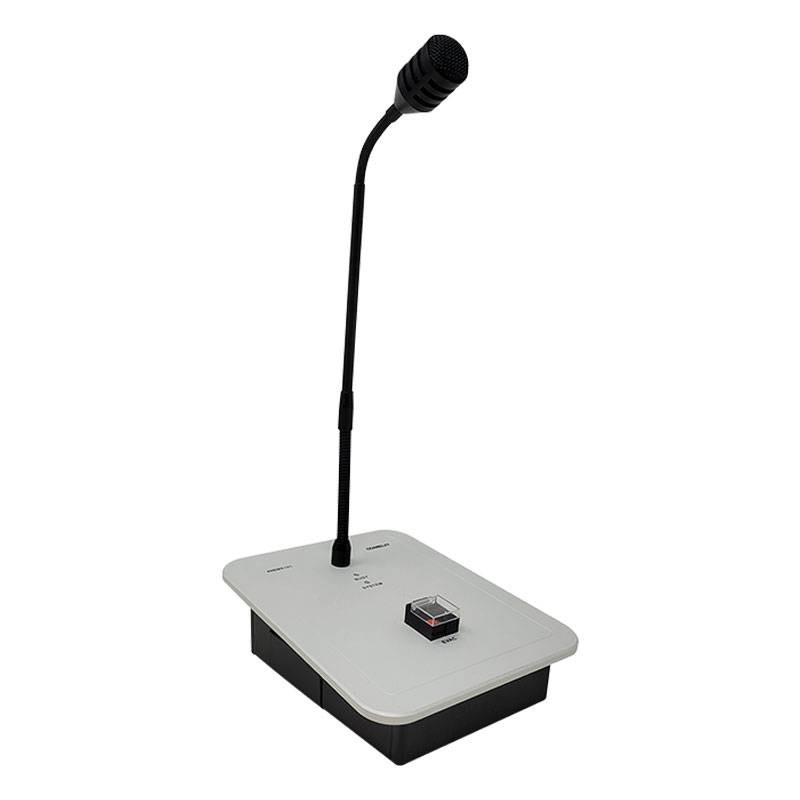

Comelit Emergency Microphone Base 1 Button 49BME101
COE 49BME101
8023903440270
The Comelit 49BME101 Emergency Microphone Base is designed to ensure effective and secure emergency voice communications. Equipped with a protected red "TALK" button to activate voice transmission, it offers the ability to operate on the entire system or on specific zones, which can be configured through the LogiVox control panel. With robust materials and advanced features, it is ideal for EN54-16 certified voice evacuation systems:
-
Dedicated emergency button: Red "TALK" button protected against unwanted activation
-
To be connected to the EMG BUS: provided with 2 RJ45 ports located on the back of it for cascading connections (in/out)
-
Status indicators: "BUSY" and "SYSTEM" LEDs for displaying line status
-
Durable materials: Black painted steel bottom and anodized aluminum top
-
Advanced programming: Configuration via DIP-SWITCH with protective door
-
Direct power supply from system: No external power supply required
€414.22
Items Available: 3
Comelit Emergency Microphone Base 49BME101
The 49BME101 microphone base is built with sturdy materials to ensure reliability and durability. The stem microphone (gooseneck) provides voice clarity, while the "TALK" button is protected by a plastic flap to prevent accidental activation. Front-facing "BUSY" and "SYSTEM" LED indicators provide continuous monitoring of line status.
Connectivity and flexibility
The base has 2 RJ45 ports on the back for cascading connections (in/out) with other emergency stations, even of different models. It can be connected to the EMG BUS of the LogiVox control center, with a maximum of 2 locations per BUS. It comes with a 3-meter RJ45 patch cable included in the package.
Configuration and programming
Programming of the base is done via DIP-SWITCH, accessible through a metal flap for protection. Volume and tone control is customizable on each individual base via the LogiVox control unit to suit the specific needs of the environment.
Key Features
| Feature | Detail |
|---|---|
| Model | Logivox emergency station |
| Workstations that can be connected in cascade to the Logivox central unit (no.) | 2 |
| Compatible workstations on the same line | 49BME101, 49BME107, 49MVF101 |
| Dedicated connection port in central unit (RJ45) | Yes, "EMG BUS" |
| Maximum distance from the first to the last station (m) | 300 |
| Number of status LEDs | 2 |
| 3m patch cable included | Yes |
Hardware Features
| Feature | Detail |
|---|---|
| Supplied stand microphone | Yes |
| RJ45 port for connection in IN/OUT locations | Yes |
| Height (mm) | 65 |
| Width (mm) | 146 |
| Depth (mm) | 186 |
| Material | Steel / anodized aluminum |
Electrical Characteristics
| Feature | Detail |
|---|---|
| Power supply from central unit | Yes |
| Power supply voltage | 24 VDC |
| Type of cable for connection | CAT. 5e SF/UTP |
| Trimmer for microphone gain adjustment | Yes |
General Data
| Feature | Detail |
|---|---|
| EN Standards | EN54-16 |
There are no reviews
Data sheet
- Type: Microphone stands
