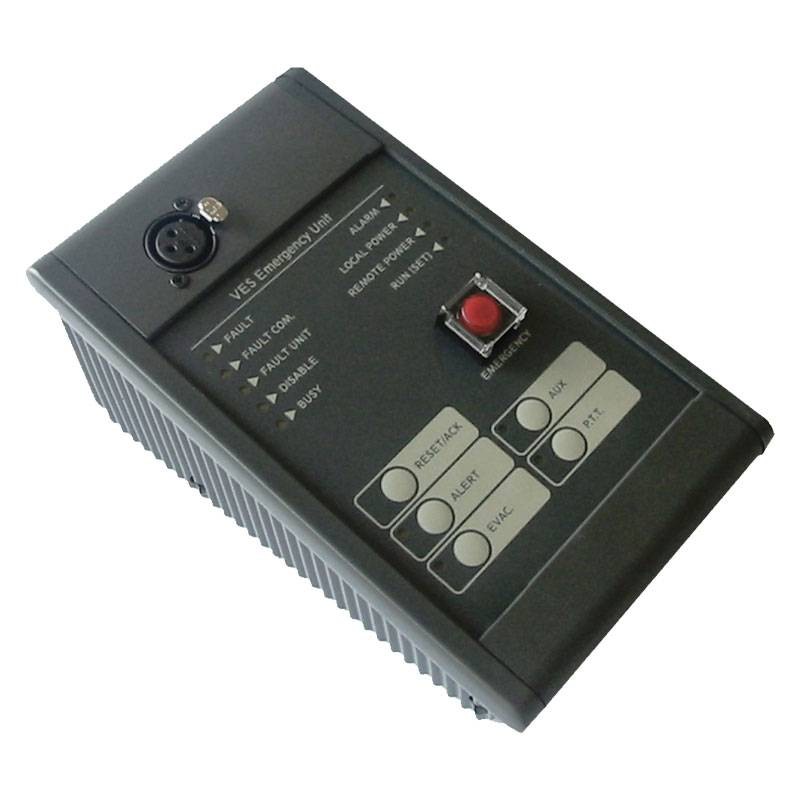

Hiltron Evac microphone stand for VVFF 12 buttons 24 VDC 60 mA EVAC1C
C1A EVAC1C
Hiltron Microphone stand, is a digital console, designed to manage emergencies in public and private buildings. Equipped with 12 buttons to select up to 12 zones, it enables general calls, sending of pre-recorded messages and management of alert and evacuation messages, with the following features:
-
Connection: CAT5e SFTP cable
-
Power supply: 24 VDC, 60 mA
-
Monitoring: Fault indication via LED
-
AUX function: Configurable messages
-
Selection keys: 12 with status LEDs
-
Functions: General call, pre-recorded messages, emergency call, selection of up to 12 zon
€486.66
Items Available: 4
: 1
Frequently bought together
Hiltron Evac microphone stand for VVFF 12 buttons 24 VDC 60 mA
The Hiltron EVAC1C microphone stand is designed for quick and safe operations in emergencies. It enables pre-recorded alert or evacuation messages and hands-free voice calls. It is ideal for buildings with advanced security systems, such as hospitals, shopping malls and public facilities.
Zone selection and monitoring
With 12 zone selection buttons, this console allows messages to be directed only to the areas of interest. Built-in LEDs provide immediate feedback on system status and warn of any faults, ensuring constant monitoring of the entire network.
AUX function and broadcast calls
The AUX function allows you to recall predefined configurations for sending specific messages to selected zones. In addition, broadcast calls can be made to reach all recipients in a single message, improving efficiency in critical situations.
Installation and compatibility
Connection via CAT5e SFTP cable ensures a stable and fast connection. The console is designed to be completed with an additional microphone (not included EVACMS code), easily adapting to different system configurations.
Technical Features
| Feature | Detail |
|---|---|
| Power supply voltage | 24 VDC |
| Maximum power consumption 24Vdc | 60 mA |
| Distortion | < 1% |
| Signal to noise ratio | > 60 db |
| Signal to noise ratio (A-weighted) | > 65 db |
| Frequency response | 130 to 19,000 Hz |
| Low Cut Filter | -3 dB / 380 Hz |
| Dimensions | 230x80x200 mm (WxHxD) |
| Weight | 1,55 k |
There are no reviews
Data sheet
- Type: Microphone stands
