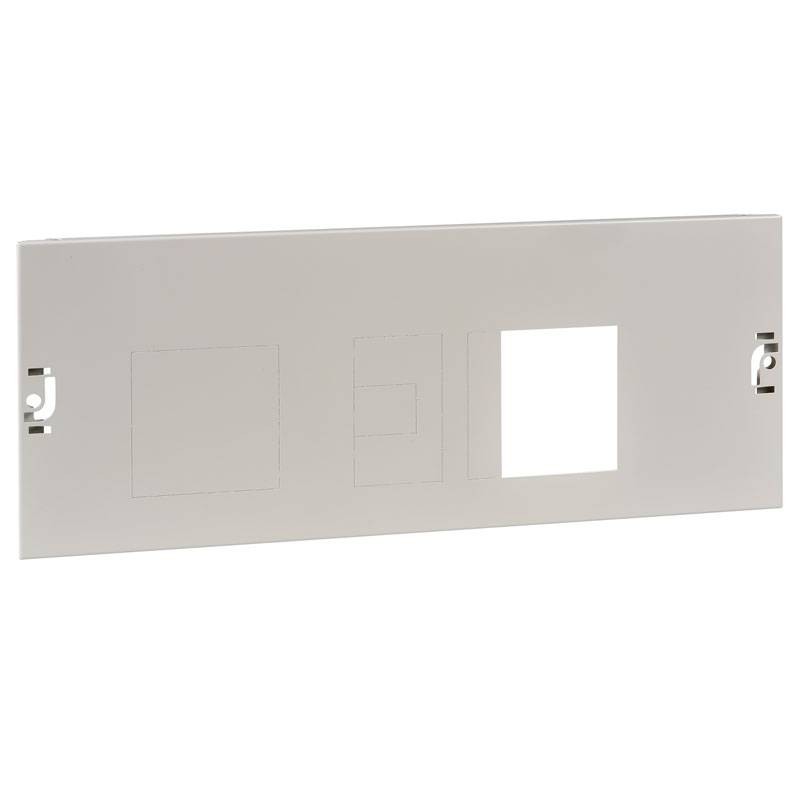

Schneider PrismaSet front plate P fix dir 4P NSX160/250 4M LVS03606

Schneider
Schneider
SNR LVS03606 3606481866042

Schneider PrismaSet P fix dir 4P NSX160/250 front plate with the following features:

  • Product range: PrismaSet P
  • Product type or component: Front plate
  • Compatibility range: PrismaSeT P box
  • Face plate type: Blanked
  • Operating position: Horizontal
  • Enclosure Description: Cabinet width 650 mm depth 400 mm
  • Connection position: Direct connection
  • Number of vertical modules (50 mm): 4
  • Reference Standards: IEC 61439-1 - IEC 61439-2
  • Product certifications: STARE
  • Surface finish: matte textured
  • Protection treatment: electrophoresis treatment and cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet front plate P fix dir 4P NSX160/250 4M LVS03606
€34.83
€34.83

€34.83
Tax included
Calculate shipping cost
Items Available: 38
Further availability of the manufacturer
€34.83

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Schneider circuit breaker combinations:

Device installed:

  • Easypact: fixed CVS100...160 without differential protection - control: direct rotary front operation - horizontal installation
  • Easypact: fixed CVS250 without differential protection - control: direct rotary maneuveringEasypact: fixed CVS100...160 without differential protection - control: direct rotary maneuvering front - horizontal installation
  • Easypact: fixed CVS250 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX100...160 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX100...160 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX250 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX250 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX100...160 without differential protection - control: motor mechanism - horizontal installation
  • Compact: fixed NSX250 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX100...160 without differential protection - control: lever - horizontal installation
  • Compact: plug-in NSX250 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS100...160 with differential protection - control: direct front rotary operation - horizontal installation
  • Easypact: fixed CVS250 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX100...160 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX100...160 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX250 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX250 with differential protection - control: lever - horizontal installation
  • Compact: plug-in NSX100...160 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: clutch NSX100...160 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX250 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: clutch NSX250 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX100...160 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX100...160 with differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX100...160 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX100...160 with differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX250 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX250 with differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX250 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX250 with differential protection - control: motor mechanism - horizontal installation Enerlin'X: fixed FDM121 - control: remote control - vertical installation

Description poles:

  • 1 4P: mounting plate support: CVS100...160 horizontal installation
  • 1 4P: mounting plate support: CVS250 horizontal installation
  • 1 4P: mounting plate bracket: NSX100...160 horizontal installation
  • 1 4P: mounting plate support: NSX250 horizontal installation

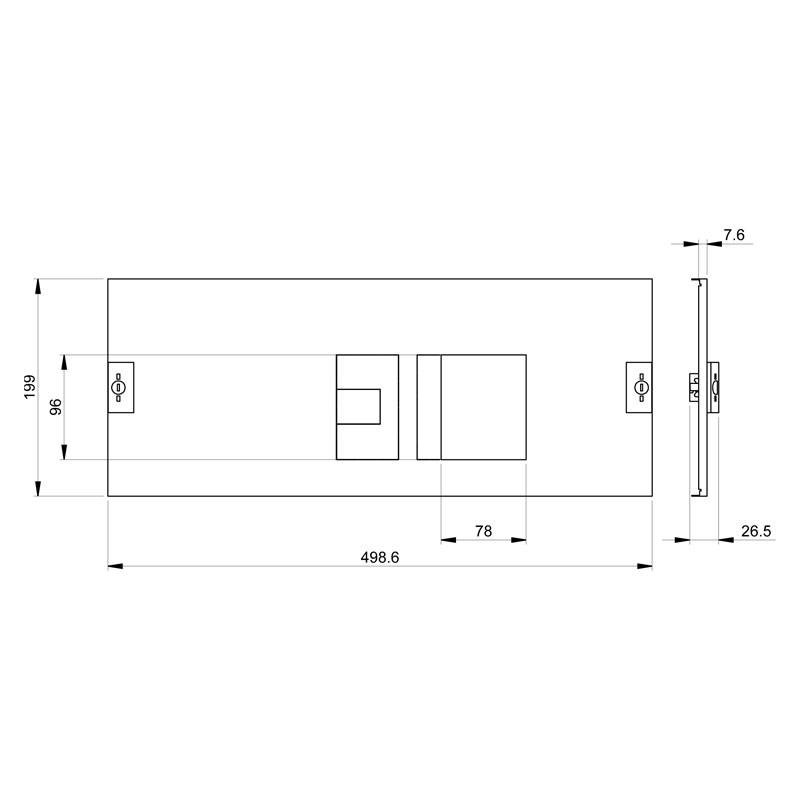

Dimensions and weight:

  • Height: 200 mm
  • Weight: 760 grams

There are no reviews

Data sheet

Type:
Plates
Modules:
4
