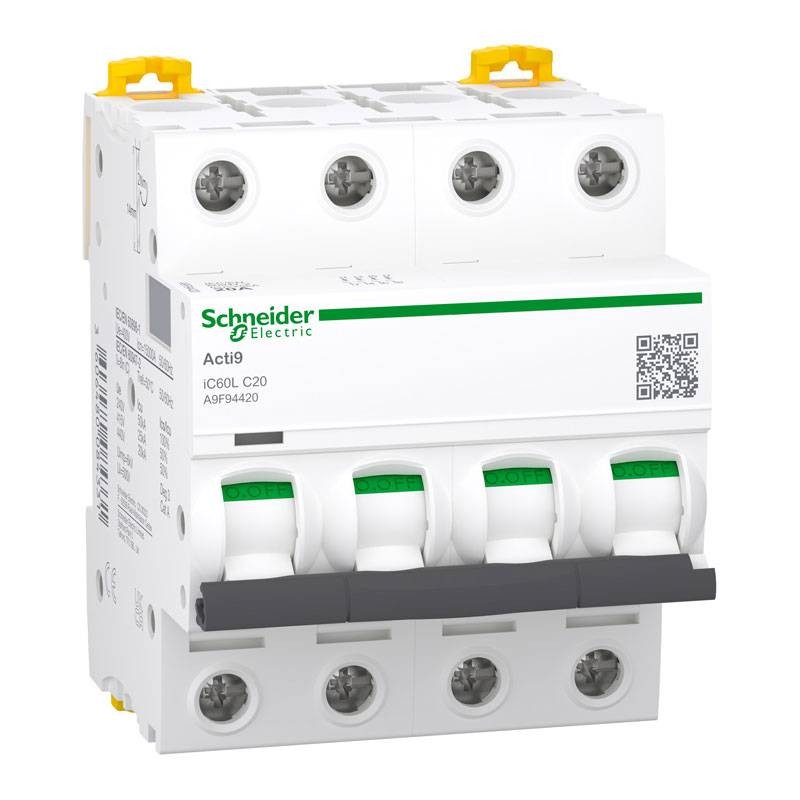

Schneider iC60L 4P 20A 15KA Circuit Breaker Curve C 4M A9F94420
SNR A9F94420
3606480084331
Compact, safe and high-performance Schneider iC60L circuit breaker, ideal for industrial environments and advanced electrical systems, provides maximum protection against short circuits and overloads, with the following features:
-
Rated current: 20 Amps
-
Number of poles: 4P
-
Breaking capacity: 15KA 230/400 V AC
-
Trip Curve: C (ideal for mixed and residential loads)
-
Number of Modules: 4
-
Mounting: DIN rail
-
Degree of protection: IP20
€178.70
Items Available: 12
Schneider circuit breaker Safety and speed with VisiTrip and VisiSafe
Equipped with the VisiTrip trip indicator, it makes it easy to detect a circuit interruption, drastically reducing tripping time. The VisiSafe system ensures complete contact separation, increasing operator safety during maintenance operations.
Flexible installation and compatibility
Designed for quick DIN-rail mounting, it supports distribution combs at both the top and bottom. IP20 connections provide protection against accidental contact, ensuring safer work.
Suitable for any environment
With an operating temperature range of -35 °C to +70 °C, level 2 tropicalization and overvoltage category IV, this circuit breaker is also perfect for installations in harsh environments or subject to extreme weather conditions.
Applications
-
Industrial switchboards
-
Residential and tertiary installations
-
Distribution systems with inductive and mixed loads
-
Installations with high safety and reliability requirements
Technical Characteristics Schneider Circuit Breaker
Electrical Characteristics
| Parameter | Value |
|---|---|
| Number of poles | 4P |
| Rated current | 20 A |
| Tripping curve | C (mixed loads and residential use) |
| Interrupting capacity | 15,000 A at 230/400 V AC (EN 60898-1) Up to 50 kA (IEC 60947-2) |
| Rated insulation voltage
Ui |
500 V AC |
| Impulse withstand voltage
Uimp |
6 kV |
| Power factor | ≥ 0,95 |
| Limitation class | 3 (EN/IEC 60898-1) |
| Overvoltage category | IV |
| Pollution degree | 3 |
Functionality and Performance
| Parameter | Value |
|---|---|
| Integrated systems | VisiTrip (fault detection), VisiSafe (operator safety) |
| Electrical durability | 10,000 cycles |
| Mechanical durability | 20,000 cycles |
| Differential protection | Can be integrated with separate Vigi block |
Installation and Dimensions
| Parameter | Value |
|---|---|
| Mounting | DIN rail |
| Comb compatibility | Yes (upper and lower) |
| Clamp tightening torque | 2 Nm |
| Stripping length | 14 mm |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 85 x 72 x 78.5 mm |
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Breaking capacity: 15KA
- Amps: 20A
- Circuit Protections: Circuit breakers
