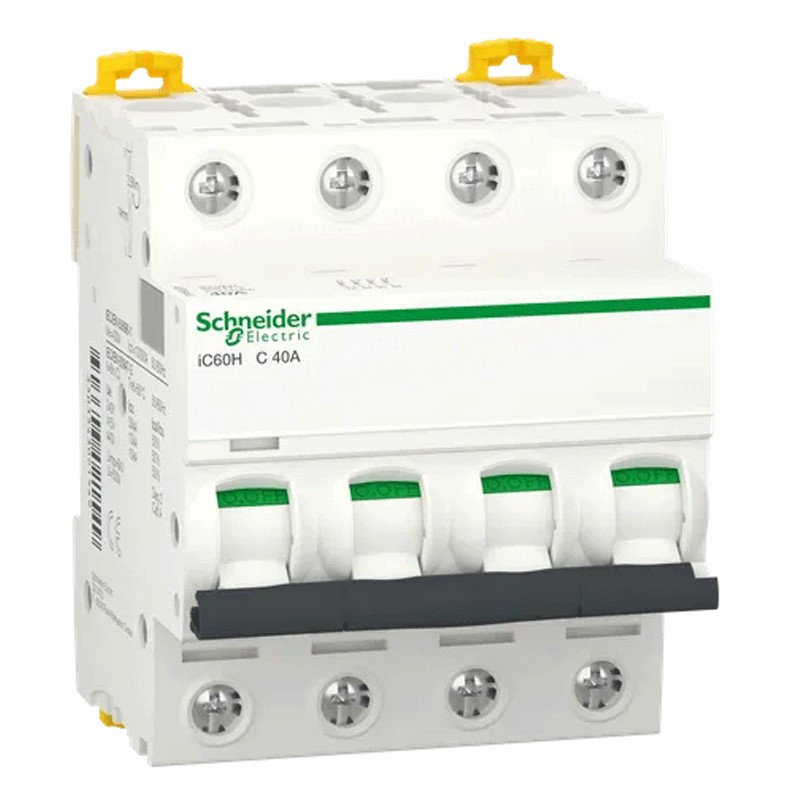

Circuit breaker-Schneider 4P 40A 10KA C 4 modules A9F89440
SNR A9F89440
3606480095252
Circuit breaker-Schneider 4P 40A 10KA C 4 modules A9F89440
Circuit breaker-Schneider 4P 40A 10KA C 4 modules A9F89440
€208.05
€208.05
Tax included
Tax included
Pay in installments with Klarna
Items Available: 18
The main Application of the device Distribution range Acti 9 product name Acti 9 iC60 Product or component type Circuit breaker Short name device IC60H Description of the poles 4P Number of poles-protected 4 [In] rated current 40 To network type AC DC Technology drives travel Breaker Code of the curve C Breaking capacity 10 kA Icu conforming to EN / IEC 60947-2 - 440 V AC 50/60 Hz 15 kA Icu conforming to EN / IEC 60947-2 - 380 ... 415 V AC 50/60 Hz 30 kA Icu conforming to EN / IEC 60947-2 - 220 ... 240 V AC 50/60 Hz 15 kA Icu conforming to EN / IEC 60947-2 - <= 250 V DC 10000 A Icn conforming to EN / IEC 60898-1 - 400 V AC 50/60 Hz 42 kA Icu conforming to EN / IEC 60947-2 - 12 ... 60 V AC 50/60 Hz 42 kA Icu conforming to EN / IEC 60947-2 - 100 ... 133 V AC 50/60 Hz Category of use Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 Yes conforming to EN 60898-1 Yes conforming to IEC 60898-1 rules IEC 60947-2 IEC 60898-1 EN 60947-2 EN 60898-1
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 10KA
- Amps:
- 40A
- Circuit Protections:
- Circuit breakers
