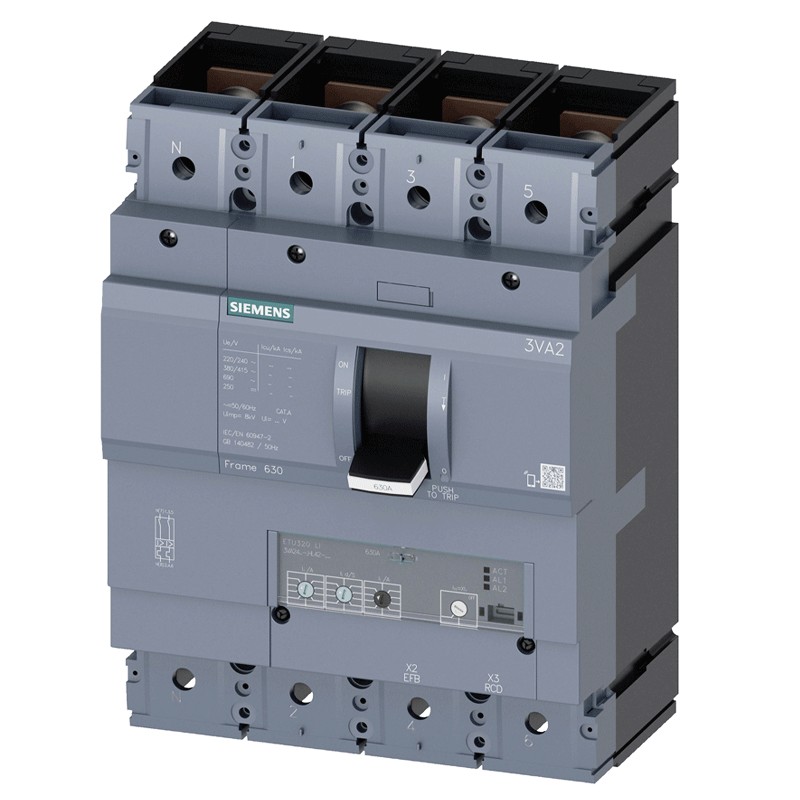

Siemens MTR 4-pole moulded case circuit breaker 630A 55KA 3VA2 3VA24635HL420AA0
SIE 3VA24635HL420AA0
4042948834114
Siemens Molded Case Circuit Breaker, Series 3VA2, with the following characteristics:
- Rated insulation voltage 800 V
- Rated breaking capacity 55 kA
- Rated permanent current Iu 630A
- 4 poles
- Design of overcurrent release ETU320
€1,301.40
Items Available: 17
: 2
Frequently bought together
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Interrupting capacity 55 kA
- Rated permanent current Iu 630A
- 4 poles
- Design of overcurrent release ETU320
- Power dissipation at nominal current value with AC in hot operating state per pole 54 W
- Max dissipated power 162 W
- Mechanical service life (switching cycles) typ. 20,000
- Height 248 mm
- Height 248 mm Width 184 mm
- 184 mm Depth 110 mm
- Net weight 5.7 kg
- Type of conductor cross-sections connectable for flat busbar connection / min 20 x 1 mm
- Type of conductor cross-sections that can be connected for flat busbar connection / max 35 x 10 mm
- Degree of protection front side IP40
Ambient temperature
- During operation / min -25 °C
- During operation / max. 70 °C
- During storage / min -40 °C
- During storage / max. 80 °C
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 55KA
- Amps: 630A
