Siemens alarm auxiliary contact Type HQ-EL boxed 3VA99880AB13
SIE 3VA99880AB13
4042949000082
Block of auxiliary signalling contacts Siemens, intervention of exchange contacts type HQ-EL (7MM) electronic, with the following characteristics
- Rated insulation voltage Ui 690 V
- Rated impulse withstand voltage 4 kV
- Rated operational voltage Ue with AC 50 Hz 24 V
- Rated operational voltage Ue with DC 24 V
- Thermal current 0.3A
- Suitable for boxed enclosures series 3VA1 and 3VA20 up to 3VA25
![](https://www.elettronew.com/41474-large_default/siemens-alarm-auxiliary-contact-type-hq-el-boxed-3va99880ab13.jpg)
Siemens alarm auxiliary contact Type HQ-EL boxed 3VA99880AB13
€25.77
€25.77
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 29
Features:
- Siemens Series
- Rated insulation voltage Ui 690 V
- Rated impulse withstand voltage 4 kV
- Rated operational voltage Ue with AC 50 Hz 24 V
- Rated operational voltage Ue with DC 24 V
- Thermal current 0.3A
- Pollution degree 3
- Overvoltage category III
- Stripping length 15 mm

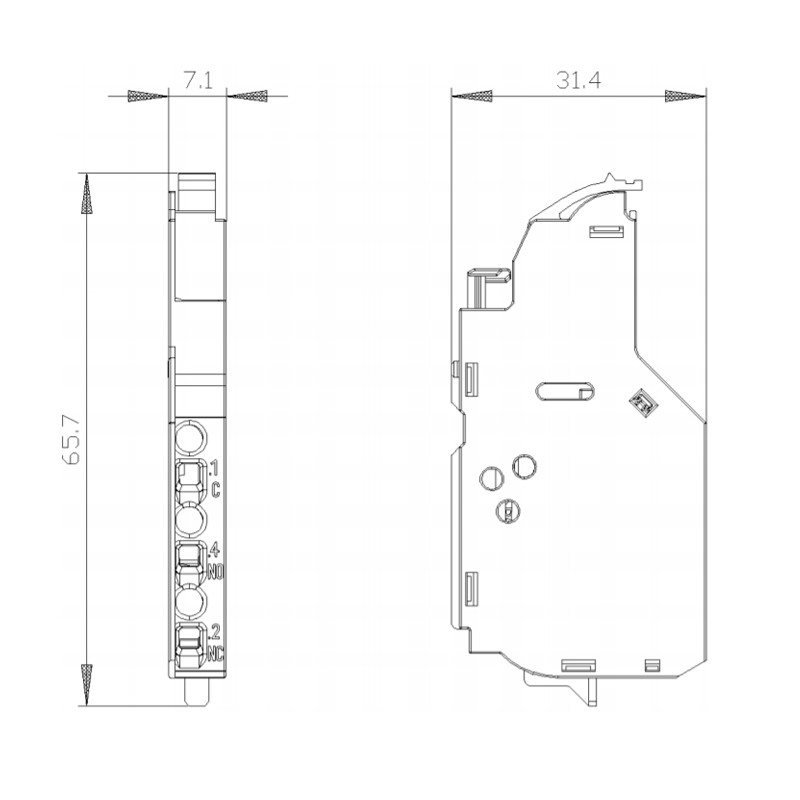

- Height 56 mm
- Width 7 mm
- Width / note 1 connector position (7 mm)
- Depth 30 mm
- Net weight 30 gr
Data sheet
- Type:
- Auxiliary Contacts
