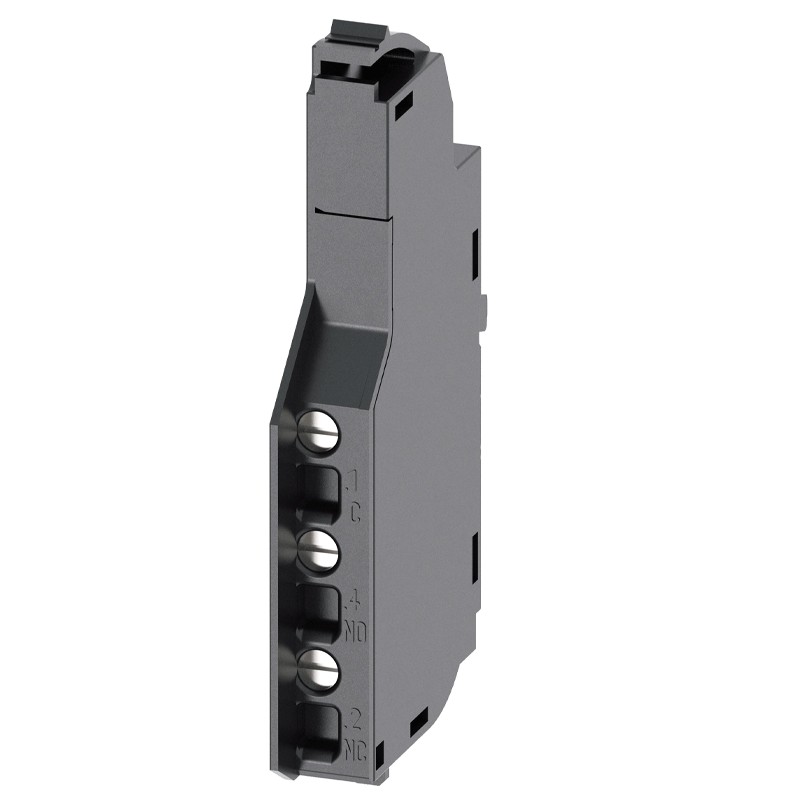

Siemens auxiliary contact type HQ-EL boxed 3VA99880AA13
SIE 3VA99880AA13
4042949000044
Siemens auxiliary contact block, changeover contacts type HQ-EL (7mm) electronic, with the following characteristics
- Rated insulation voltage Ui 690 V
- Rated impulse withstand voltage 4 kV
- Rated operational voltage Ue at AC 50 Hz 24 V
- Rated operational voltage Ve with DC 24 V
- Thermal current 0.3A
Siemens auxiliary contact type HQ-EL boxed 3VA99880AA13
€25.77
€25.77
Tax included
Tax included
Pay in installments with Klarna
Items Available: 35
Features:
- Siemens Series
- Rated insulation voltage Ui 690 V
- Rated impulse withstand voltage 4 kV
- Rated operational voltage Ue with AC 50 Hz 24 V
- Rated operational voltage Ue with DC 24 V
- Thermal current 0.3A
- Pollution degree 3
- Overvoltage category III
- Height 56 mm
- Width 7 mm
- Width / note 1 connector position (7 mm)
- Depth 30 mm
- Net weight 30 gr
- Stripping length 15 mm
Data sheet
- Type:
- Auxiliary Contacts
