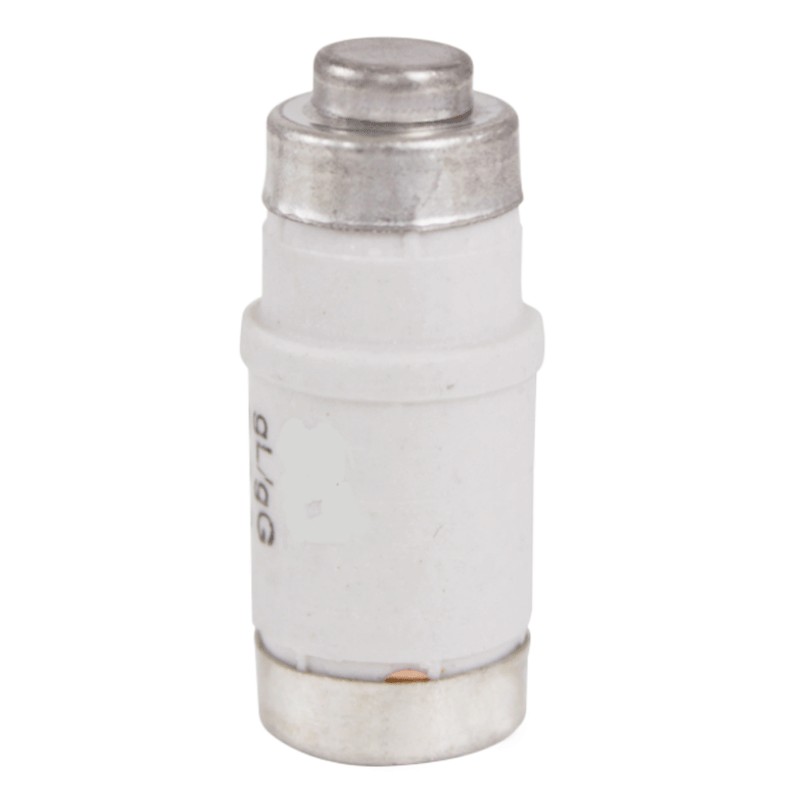

Noezed Italweber D02 fuse step E18 quick curve 63A 400V 1320063
ITW 1320063
8024873046790
Noezed Italweber fuse, with the following characteristics:
- Fuse type D03 (pitch E18)
- Fast curve tripping characteristic
- Nominal current 63A
- Rated voltage 400Vac
- Interrupting power 50kA AC
- Dissipated power 5.30W

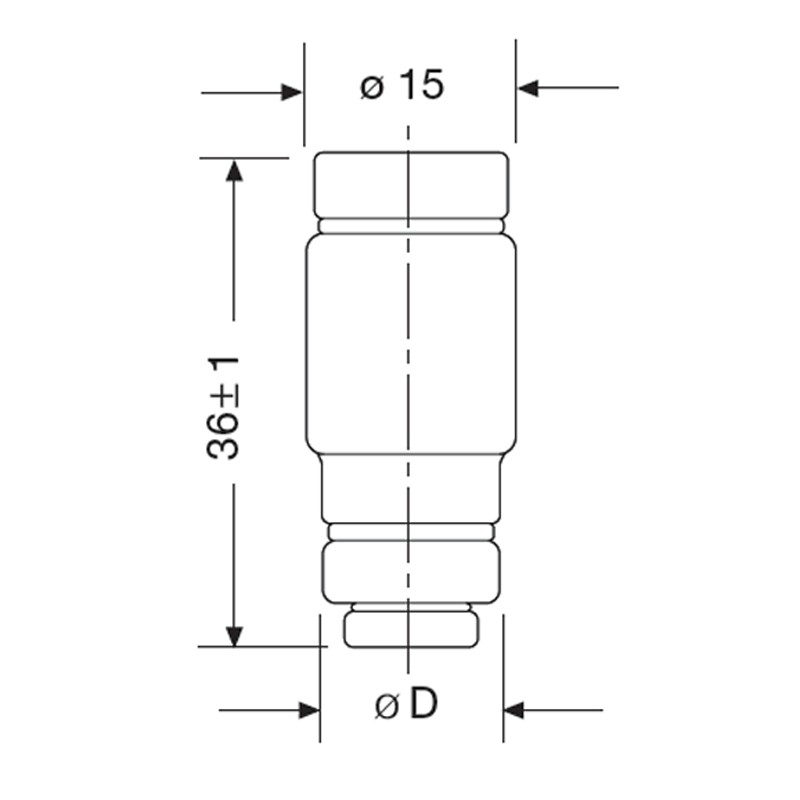

- Dimensions 15X36
€1.43
Items Available: 121
: 22
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type D03 (step E18)
- Fast curve intervention characteristic
- Compliant with standards CEI 32-1, CEI 32-5, CEI 32-7, IEC 60269-1, IEC 60269-3, IEC 60269-4
- Rated current 63A
- Rated voltage 400Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 5,30W
- Dimensions 15X36
- Operating temperature -20°C / +80°C
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 15X36
- Voltage: 400VAC
- Breaking capacity: 50KA
- Amps: 63A
- Material: Steatite
