Wimex Noezed D02 fuse 20A 250/400V 15x36 mm 5200220
WIM 5200220
8025241112642

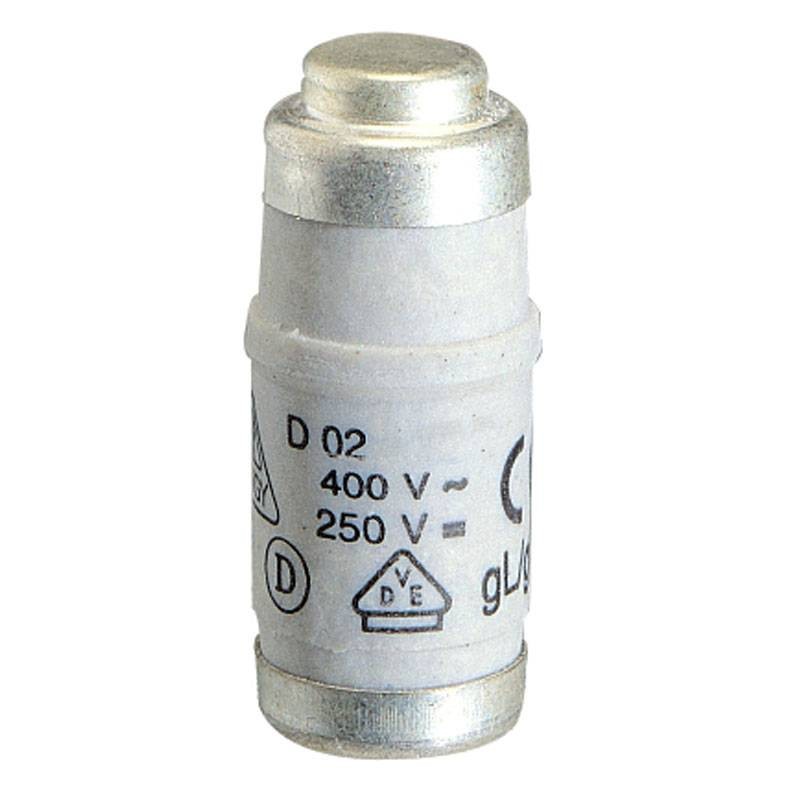

Noezed Wimex D02 fuse with the following characteristics:
- Rated current: 20A
- Rated voltage: 250V DC - 400V AC
- Interrupting power: 250V 8KA - 400V 50KA
- Dimensions: 15x36mm
€1.08
Items Available: 2
: 1
Neo D fuses for uses up to 250-400V, normally for domestic use and in industrial plants. Made in a single gG characteristic.
An electrical fuse (simply called a fuse) is an electrical device that can protect a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Range: fuses NEO D E D
- Dimensions: 15x36 mm
- Body: Steatite (soapstone)
- Tripping characteristic: Delayed
- Interrupting range: GG
- I²t: 1850
- Pw: 1.4
There are no reviews
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 15X36
- Voltage: 250V
- Breaking capacity: 50KA
- Amps: 20A
- Material: Steatite
400VAC
