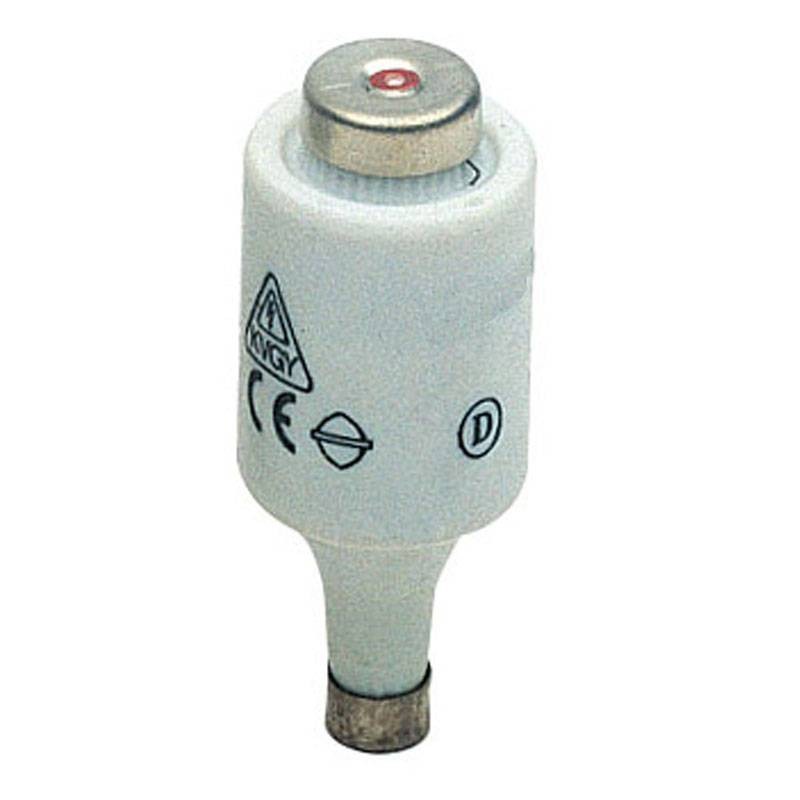

Wimex DII F Noezed Fuse 2A 400/500V 22x50 mm 5300202
WIM 5300202
8025241113144
Noezed Wimex DII F fuse with the following characteristics:
- Rated current: 2A
- Rated voltage: 400V DC - 500V AC
- Interrupting power: 50KA
- Dimensions: 22x50mm
€1.08
Items Available: 30
: 27
D fuses for use up to 500V, are the most widely used in the world. They find application in industrial plants, motor and cable protection, and in civil and similar installations.
An electrical fuse (simply called a fuse) is an electrical device that can protect a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Range: fuses NEO D E D
- Dimensions: 22x50 mm
- Body: Steatite (soapstone)
- Tripping characteristic: Fast
- Interrupting range: F
There are no reviews
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 22X50
- Voltage: 500VAC
- Breaking capacity: 50KA
- Amps: 2A
- Material: Steatite
