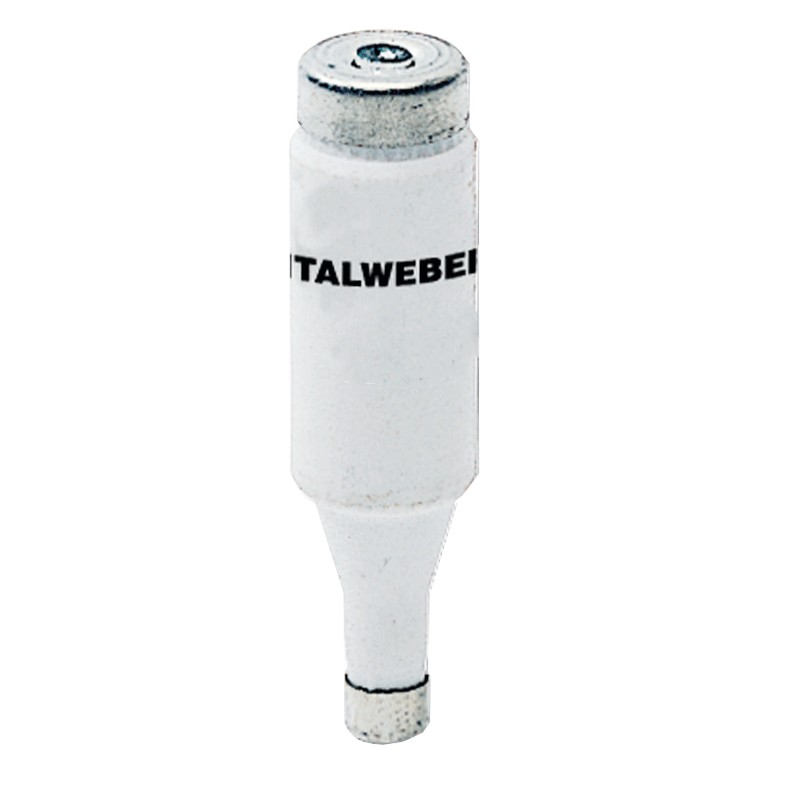

Diazed Italweber NDZ fuse pitch E16 quick bend 20A 500V 1211020
ITW 1211020
8024873046370
Diazed Italweber fuse, with the following characteristics:
- Fuse type Step E16 (NDZ)
- Rated current 20A
- Fast curve tripping characteristic
- Rated voltage 500 Vac
- Interrupting power 50kA
- Dissipated power 4,4W
- Dimensions 13X50 mm
![](https://www.elettronew.com/41288-large_default/diazed-italweber-ndz-fuse-pitch-e16-quick-bend-20a-500v-1211020.jpg)
Diazed Italweber NDZ fuse pitch E16 quick bend 20A 500V 1211020
€0.89
€0.89
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 104
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse type Pitch E16 (NDZ)
- Rated current 20A
- Fast curve tripping characteristic
- Compliant with standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
- Rated voltage 500 Vac
- Breaking capacity 50kA
- Dissipated power 4,4W
- Steatite body
- Contacts in silvered copper
- Dimensions 13X50 mm
Data sheet
- Type:
- Fuses (Diazed/Neozed)
- Size:
- 13X50
- Voltage:
- 500VAC
- Breaking capacity:
- 50KA
- Amps:
- 20A
- Material:
- Steatite
