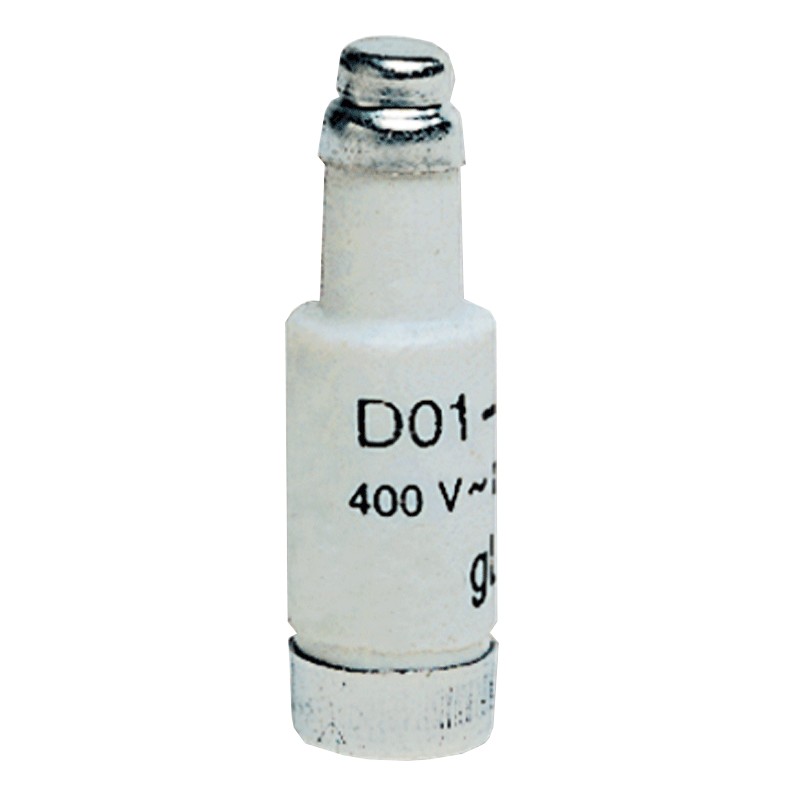

Noezed Italweber D01 fuse step E14 quick curve 6A 400V 1310006
ITW 1310006
8024873046721
Noezed Italweber fuse, with the following characteristics:
- Fuse type D01 (pitch E14)
- Fast curve tripping characteristic
- Nominal current 6A
- Rated voltage 400Vac
- Interrupting power 50kA AC
- Dissipated power 1,68W

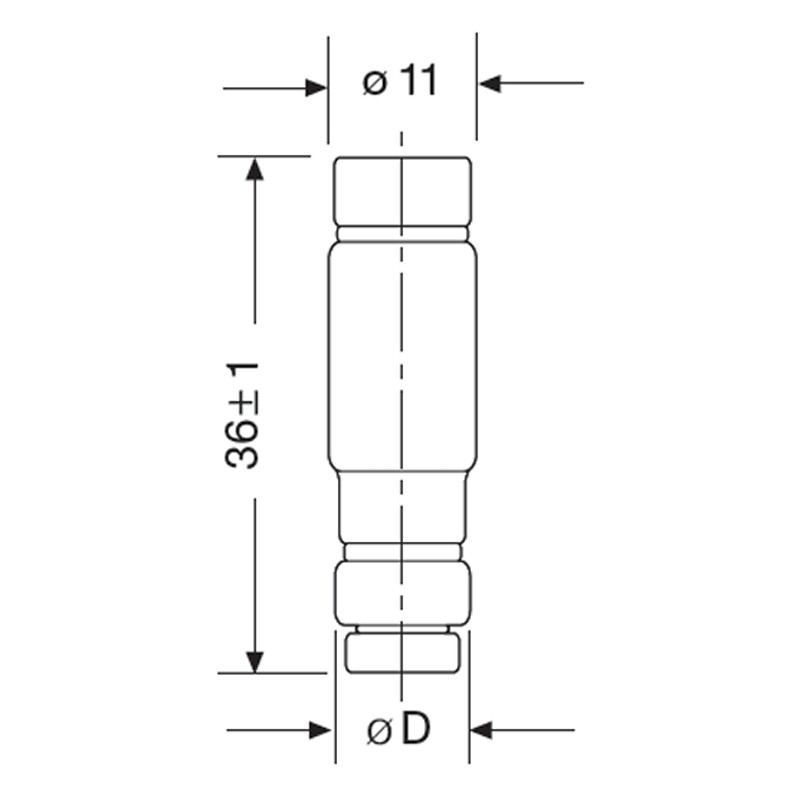

- Dimensions 36X11
![](https://www.elettronew.com/41264-large_default/noezed-italweber-d01-fuse-step-e14-quick-curve-6a-400v-1310006.jpg)
Noezed Italweber D01 fuse step E14 quick curve 6A 400V 1310006
€1.33
€1.33
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 125
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type D01 (pitch E14)
- Fast curve intervention characteristic
- Compliant with standards CEI 32-1, CEI 32-5, CEI 32-7, IEC 60269-1, IEC 60269-3, IEC 60269-4
- Rated current 6A
- Rated voltage 400Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 1,68W
- Dimensions 36X11
- Operating temperature -20°C / +80°C
Data sheet
- Type:
- Fuses (Diazed/Neozed)
- Size:
- 11X36
- Voltage:
- 400V
- Breaking capacity:
- 50KA
- Amps:
- 6A
- Material:
- Steatite
