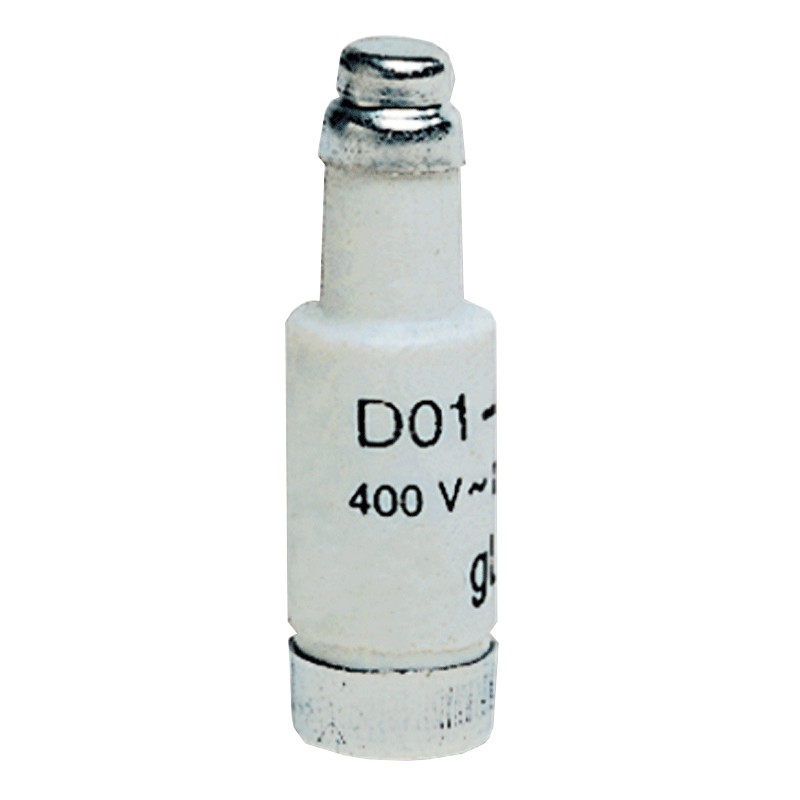

Noezed Italweber D01 fuse step E14 quick curve 10A 400V 1310010


ITW 1310010 8024873046738

Noezed Italweber fuse, with the following characteristics:

  • Fuse type D01 (pitch E14)
  • Fast curve tripping characteristic
  • Nominal current 10A
  • Rated voltage 400Vac
  • Interrupting power 50kA AC
  • Dissipated power 1,80W

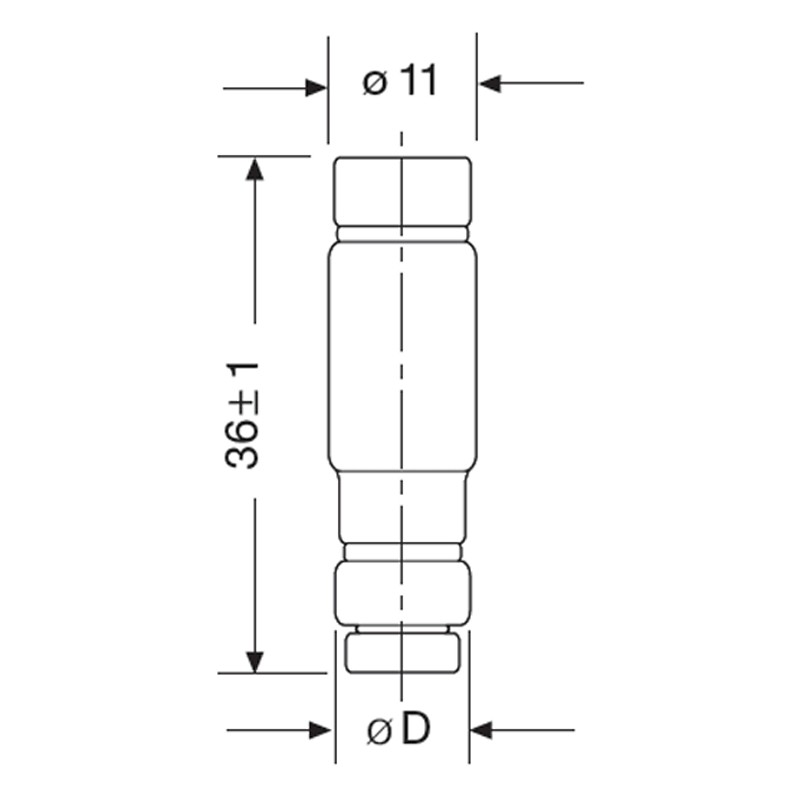

  • Dimensions 36X11
Request info about this product

Noezed Italweber D01 fuse step E14 quick curve 10A 400V 1310010

€0.91
€0.91

Noezed Italweber D01 fuse step E14 quick curve 10A 400V 1310010

€0.91
Tax included
klarna Pay in installments with Klarna
qty

Noezed Italweber D01 fuse step E14 quick curve 10A 400V 1310010

€0.91

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Fuse type D01 (pitch E14)
  • Fast curve intervention characteristic
  • Compliant with standards CEI 32-1, CEI 32-5, CEI 32-7, IEC 60269-1, IEC 60269-3, IEC 60269-4
  • Rated current 10A
  • Rated voltage 400Vac
  • Steatite body
  • Contacts in silvered copper
  • Interrupting capacity 50kA AC
  • Dissipated power 1,80W
  • Dimensions 36X11
  • Operating temperature -20°C / +80°C

Data sheet

Type:
Fuses (Diazed/Neozed)
Size:
11X36
Voltage:
400V
Amps:
10A
Material:
Ceramic
