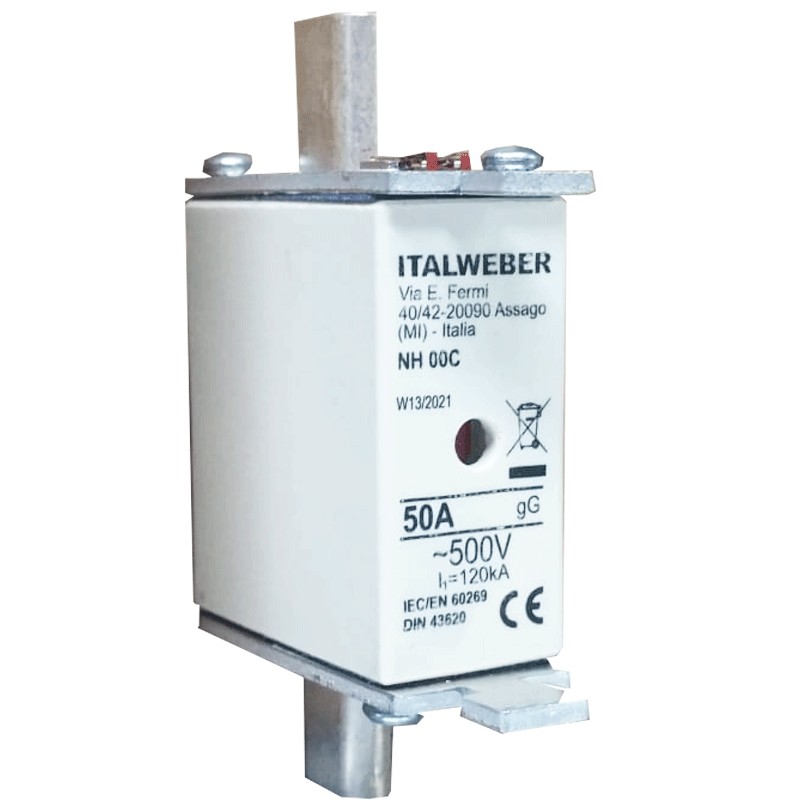

Knife fuse Italweber NH 00C standard curve gG 50A 500V 1500650
ITW 1500650
8024873044819
Italweber knife fuse, with the following characteristics:
- NH 00C series
- Standard type
- Nominal voltage 500V
- Switching characteristic gG
- Rated current 50A
- Breaking capacity 120kA
Knife fuse Italweber NH 00C standard curve gG 50A 500V 1500650
€4.41
€4.41
Tax included
Tax included
Pay in installments with Klarna
Items Available: 37
NH industrial fuses of type gG are normally used for the protection of cables, power lines and equipment against overloads and short circuits. NH Kombi fuses are equipped with a double tripping signalling device, one of which is placed in the central part of the fuse, while the other is placed in the upper part. This last device can be associated with a microswitch to obtain a remote signalling of the intervention. NH/I fuses guarantee an additional protection against accidental contacts because they are made by placing plastic insulating plates near the blades of the fuse.
Characteristics:
- Italweber series
- NH 00C series
- Standard type
- Nominal voltage 500V
- Switching characteristic gG
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
- Steatite body
- Contacts in silvered copper
- Rated current 50A
- Breaking capacity 120kA
- Execution with upper melting indicator
Data sheet
- Type:
- Blade fuses
- Voltage:
- 500V
- Amps:
- 50A
- Material:
- Ceramic
