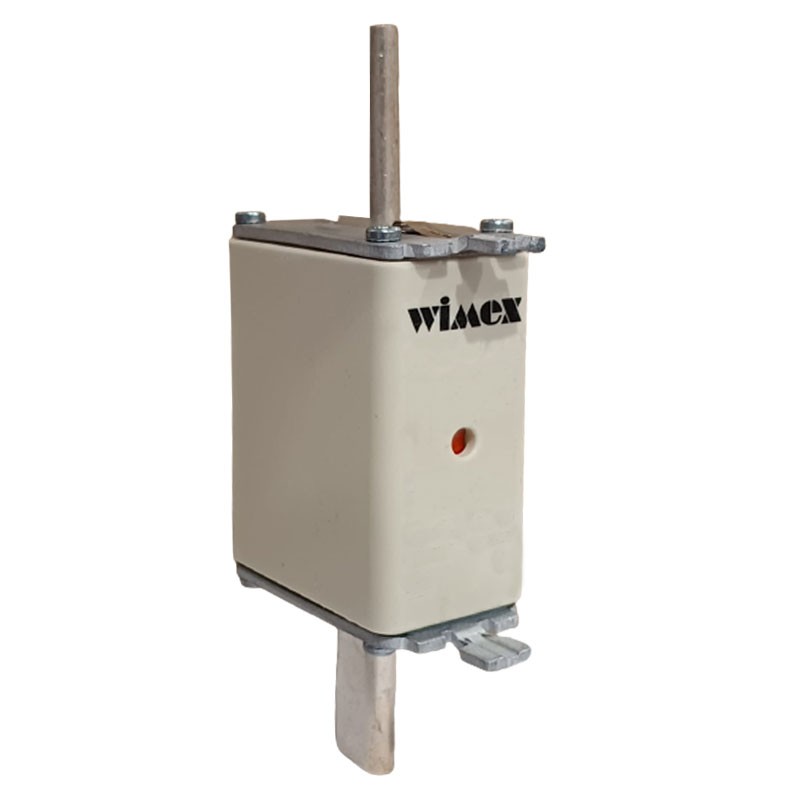

Wimex NH gG low-dissipation fuse 125A 5500182


WIM 5500182

Wimex NH gG low-dissipation fuse, 125 amps, 500V.



NH type gG industrial fuses are normally used to protect cables, power lines and equipment against overloads and short circuits.

Request info about this product

Wimex NH gG low-dissipation fuse 125A 5500182

€8.13
€8.13

Wimex NH gG low-dissipation fuse 125A 5500182

€8.13
Tax included
klarna Pay in installments with Klarna
qty

Wimex NH gG low-dissipation fuse 125A 5500182

€8.13

Buy it within and receive it from Wednesday, 29 May
Two-year warranty
Secure Payment
Easy return within 14 days

NH fuses, thanks to their multiple classes of use, are suitable for overload and short-circuit protection of lines, motors and transformers. NH fuse bases must be sized according to the rated current of the largest capacity fuse that can be inserted in the base.

Fuses should be inserted and disconnected in the bases by means of appropriate handles. Fuses with tripping characteristic gG, have the capacity to interrupt all currents between the minimum value that causes the element to melt and the value corresponding to the rated breaking capacity. The breaking capacity of a fuse is the maximum value that it is capable of interrupting the maximum values expressed in KA are given in IEC EN 6269.1 standards.

A selectivity ratio of 1.6 at 690V and 1.25 at 400 Vac, succeeds in practice in normally meeting all usage requirements and thus ensuring high fault selectivity.

Data sheet

Type:
Blade fuses
Voltage:
500V
Amps:
125A
Material:
Ceramic
