Wimex NH gG low-dissipation fuse 630A 5503630
Wimex NH gG low-dissipation fuse
- 630 Ampere
- Voltage: 500V
NH industrial fuses of type gG are normally used for the protection of cables, power lines and equipment against overloads and short circuits.
![](https://www.elettronew.com/59640-large_default/wimex-nh-gg-low-dissipation-fuse-630a-5503630.jpg)

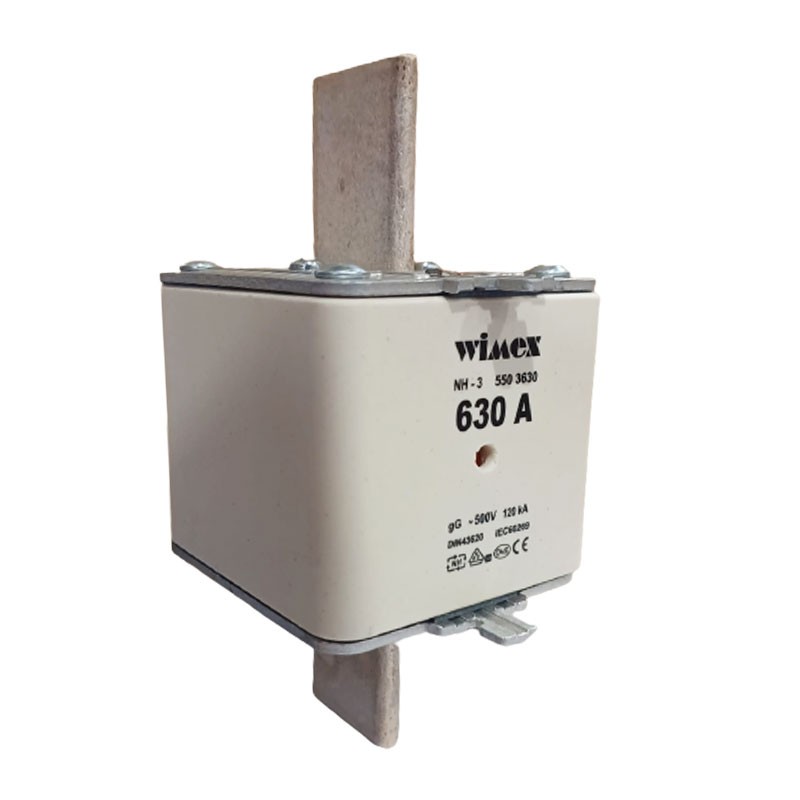

Wimex NH gG low-dissipation fuse 630A 5503630
Tax included
![klarna](/../img/logo-klarna-list.png)
Frequently bought together
NH fuses, thanks to their multiple classes of use, are suitable for overload and short-circuit protection of lines, motors and transformers. NH fuse bases must be sized according to the rated current of the largest capacity fuse that can be inserted in the base.
Fuses should be inserted and disconnected in the bases by means of appropriate handles. Fuses with tripping characteristic gG, have the capacity to interrupt all currents between the minimum value that causes the element to melt and the value corresponding to the rated breaking capacity. The breaking capacity of a fuse is the maximum value that it is capable of interrupting the maximum values expressed in KA are given in IEC EN 6269.1 standards.
A selectivity ratio of 1.6 at 690V and 1.25 at 400V ac, succeeds in practice in normally meeting all usage requirements and thus ensuring high fault selectivity.
Data sheet
- Type:
- Blade fuses
- Voltage:
- 500V
- Breaking capacity:
- 120KA
- Amps:
- 630A
- Material:
- Steatite
