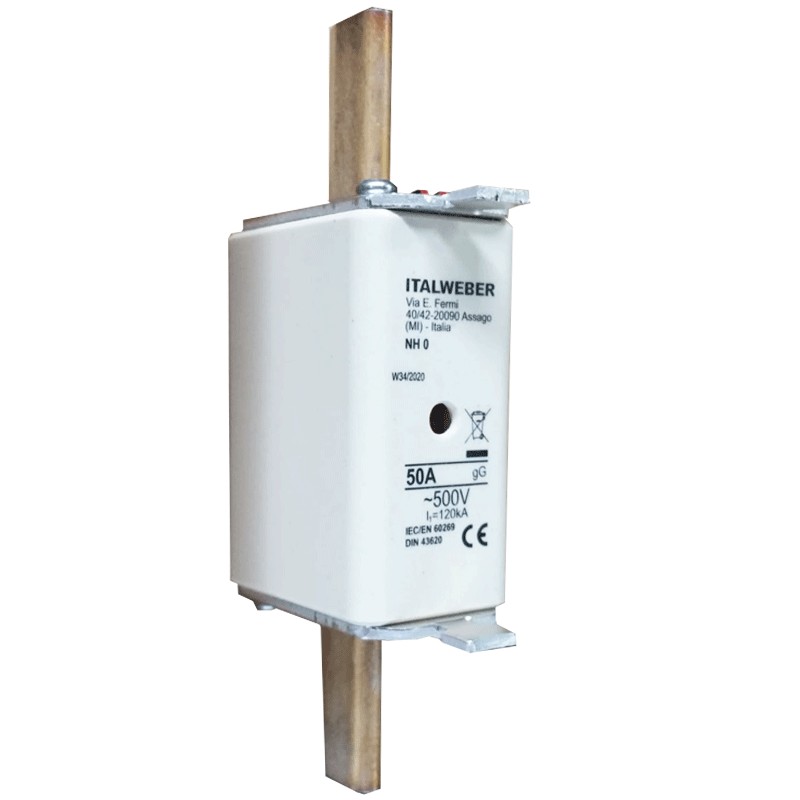

Knife fuse Italweber NH 0 standard curve gG 50A 500V 1505050


ITW 1505050 8024873045045

Italweber knife fuse, with the following characteristics

  • NH 0 series
  • Standard type
  • Nominal voltage 500V
  • Switching characteristic gG
  • Rated current 50A
  • Breaking capacity 120kA
Request info about this product

Knife fuse Italweber NH 0 standard curve gG 50A 500V 1505050

€6.90
€6.90

Knife fuse Italweber NH 0 standard curve gG 50A 500V 1505050

€6.90
Tax included
klarna Pay in installments with Klarna
qty

Knife fuse Italweber NH 0 standard curve gG 50A 500V 1505050

€6.90

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

NH industrial fuses of type gG are normally used for the protection of cables, power lines and equipment against overloads and short circuits. NH Kombi fuses are equipped with a double tripping signalling device, one of which is placed in the central part of the fuse, while the other is placed in the upper part. This last device can be associated with a microswitch to obtain a remote signalling of the intervention. NH/I fuses guarantee an additional protection against accidental contacts because they are made by placing plastic insulating plates near the blades of the fuse.

Characteristics:

  • Italweber series
  • NH 0 series
  • Standard type
  • Nominal voltage 500V
  • Switching characteristic gG
  • Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
  • Steatite body
  • Contacts in silvered copper
  • Rated current 50A
  • Breaking capacity 120kA
  • Execution with upper melting indicator

Data sheet

Type:
Blade fuses
Voltage:
500V
Amps:
50A
Material:
Ceramic
